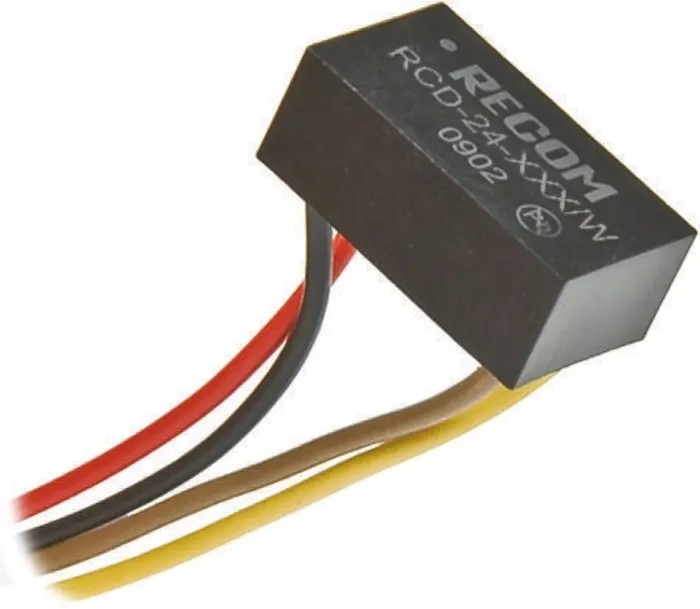

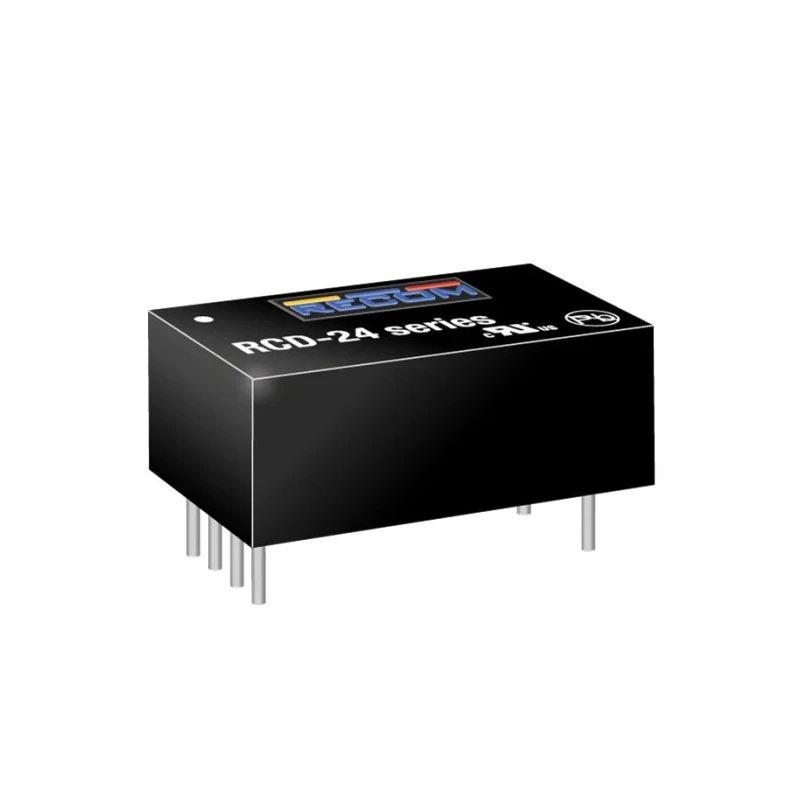

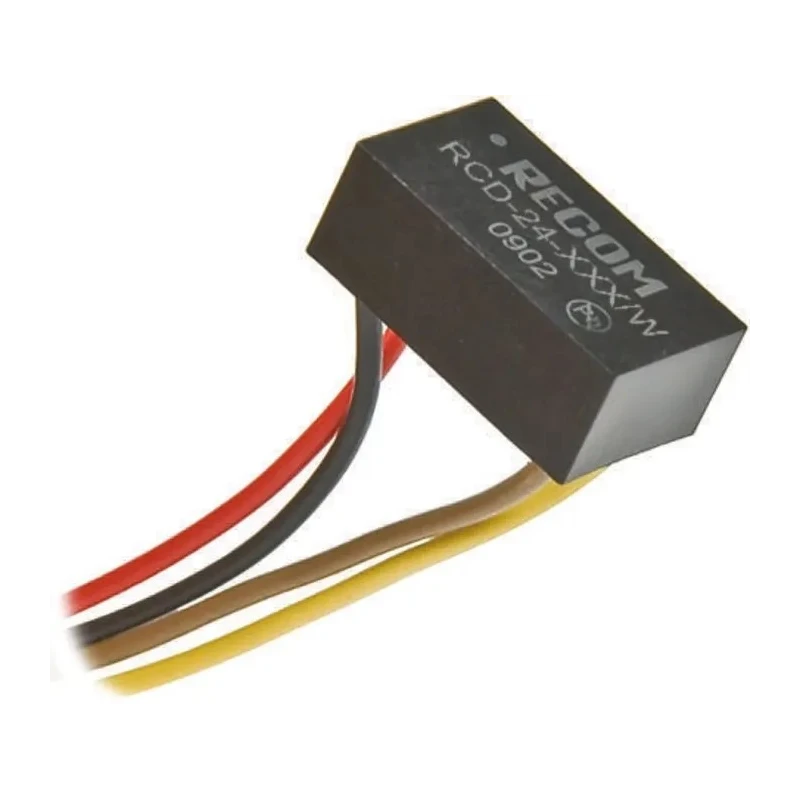

Recom IP67 Enclosed Single Output LED Driver, PWM Dimming, 3 to 31 V DC Output, 31 W, 1A Constant Current

Recom RCD-24-1.00/W is a high-performance single output LED driver designed for reliable power regulation in LED lighting systems. Operating with a wide DC input voltage range of 4.5 to 36 V, it delivers a constant current output of 1 amp with an output voltage range spanning from 3 to 31 V DC and maximum power rating of 31 watts. The PWM dimming functionality enables precise brightness control, making it ideal for commercial, residential, and entertainment lighting applications.

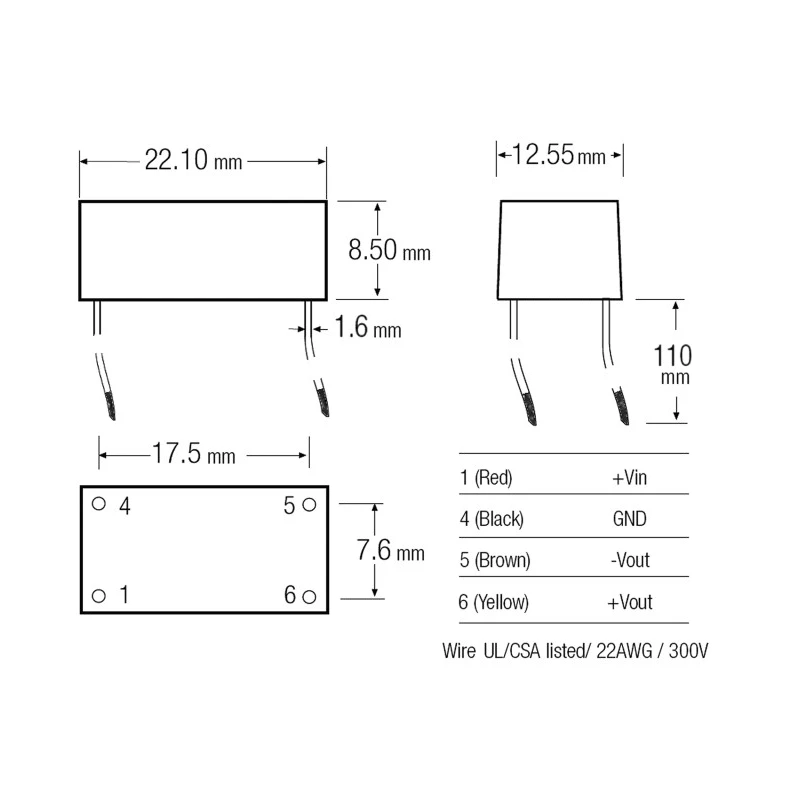

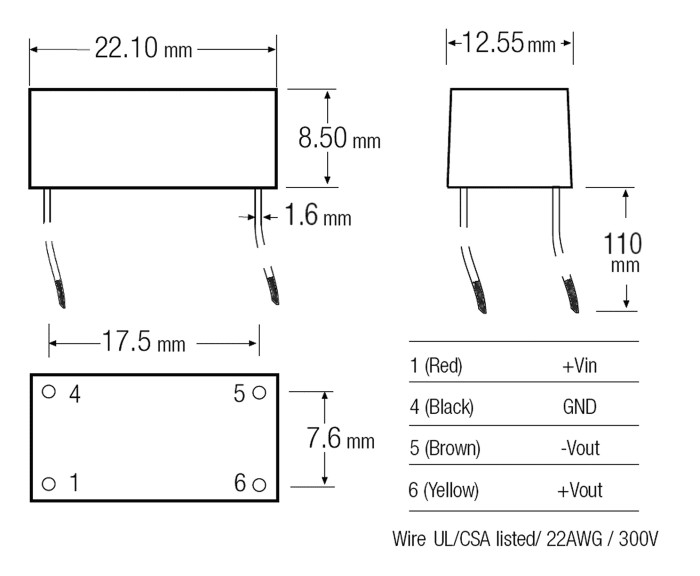

The driver features an IP67 rated enclosed plastic housing which provides superior protection against dust ingress and water immersion up to 1 meter for 30 minutes. This makes it suitable for use in harsh environmental conditions where durability is crucial. The compact form factor measuring just 22.1 mm length, 12.6 mm width, and 8.5 mm depth, combined with a lightweight of 6.8 g, simplifies installation in space-constrained setups.

Recom's LED driver incorporates built-in short circuit protection to prevent damage to connected LEDs and the driver itself during unexpected electrical faults. It supports constant current operating modes and complies with prominent standards such as UL, RoHS, and EN, reflecting high product quality and safety. The device's excellent efficiency of 96% minimizes energy loss during operation.

Its robust performance across a wide temperature range from -40°C to +71°C allows this product to be deployed in diverse industrial, commercial, and residential environments. The reliable operation and longevity are further demonstrated by a mean time between failures (MTBF) of 605,000 hours at 25°C, ensuring maintenance-free usage and low lifecycle costs.

This LED driver is ideally suited for powering LED lighting systems demanding stable current with variable voltage outputs and supports advanced lighting designs requiring dimming capabilities. Suitable applications include entertainment systems, commercial LED lights, and residential lighting installations requiring high reliability and environmental protection.

High efficiency LED driver with a power rating of 31 watts. Output voltage adjustable from 3 to 31 volts DC for versatile LED applications. Supports PWM dimming for smooth brightness control. IP67 rated enclosure ensures protection against dust and water immersion.

Compact design with dimensions 22.1 x 12.6 x 8.5 mm lends to easy integration. Built-in short circuit protection for enhanced device and LED safety. Wide operating temperature range from -40°C to +71°C for demanding environments.

Lightweight device weighing approximately 6.8 grams. Certified to UL, RoHS, and EN standards ensuring reliability and compliance. Explore more LED Drivers and lighting components in the EnvMart catalog for robust and efficient lighting solutions.
