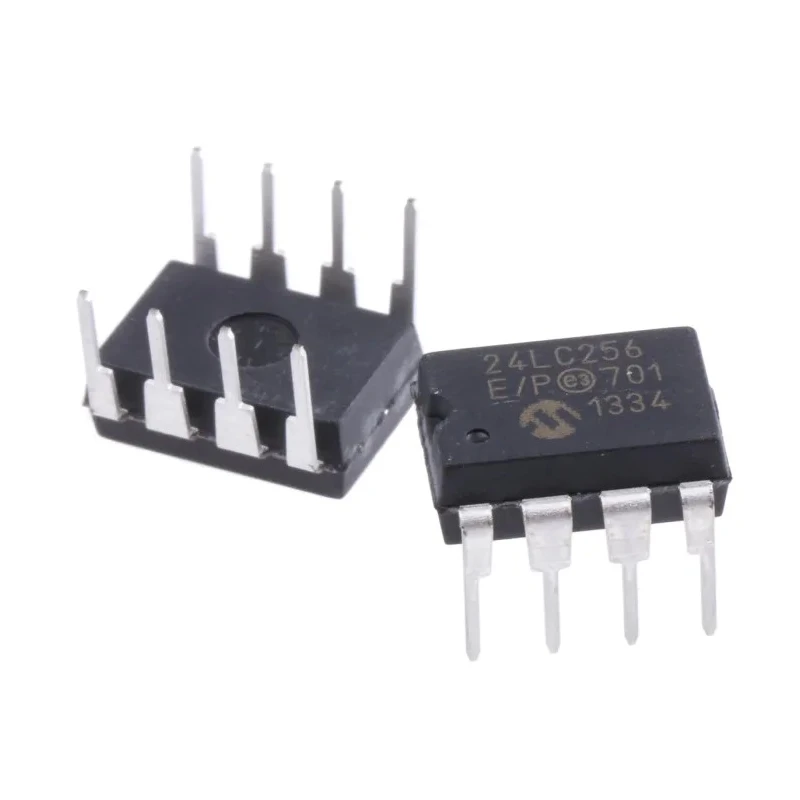

Microchip 256 kB Serial EEPROM PDIP 8-Pin, Serial-I2C, 2.5-5.5V, 400kHz, 24LC256-E/P

Microchip 24LC256-E/P is a 256 kB Serial EEPROM featuring a Serial-I2C interface designed for reliable data storage and fast access with a maximum clock frequency of 400 kHz. It is housed in a standard 8-Pin PDIP package that supports through-hole mounting, making it suitable for a wide range of electronic assembly applications in industrial, automotive, and consumer electronics sectors.

The device operates from a minimum supply voltage of 2.5 V up to a maximum of 5.5 V with a typical supply current of 3 mA, enabling energy-efficient performance. It supports data organization of 32K words with 8 bits per word, offering a total memory size of 256 kB with a data retention capability of 200 years, ensuring long-term reliability. The maximum random access time of 900 ns allows for efficient read and write cycles in demanding environments.

Designed to operate under harsh conditions, this EEPROM supports a wide temperature range from -40°C to 125°C, fulfilling the requirements for automotive applications and other demanding industrial environments. It is compliant with the AEC-Q100 automotive standard, reflecting its robustness and adherence to quality regulations.

The physical dimensions of the device are compact, measuring 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height, allowing for efficient use of PCB space. The 8-pin PDIP package ensures easy insertion and replacement in existing setups.

Memory capacity of 256 kB with a 32K x 8 bit data organization. Low supply current of 3 mA for power efficient operation. Wide operating voltage range from 2.5 V to 5.5 V. High-speed access with maximum clock frequency of 400 kHz and random access time of 900 nanoseconds.

Long-term data retention of 200 years for archival applications. Automotive compliant with AEC-Q100 standard. Compact 8-Pin PDIP through-hole package with dimensions 9.27 mm by 6.35 mm by 3.3 mm.

This serial EEPROM is ideal for use in embedded systems, automotive electronics, industrial control units, and other applications requiring reliable non-volatile data storage. It provides an efficient solution to maintain system parameters, calibration data, and user preferences with assured longevity and high performance.
