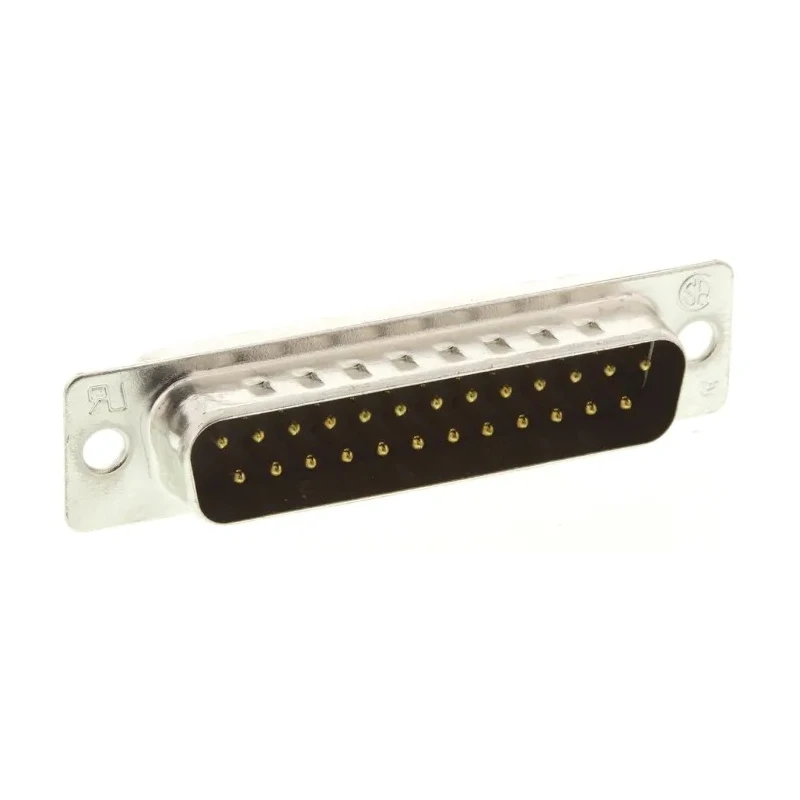

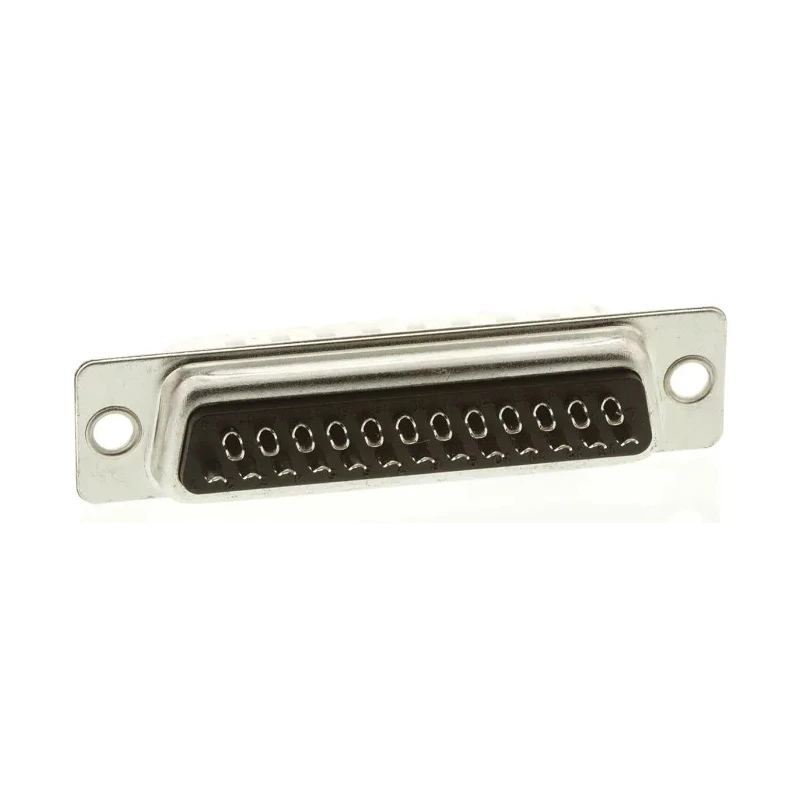

TE Connectivity AMPLIMITE HD-20 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Male 5-747912-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | B |
Key Features
- Constructed with a steel housing for robust protection.
- Features 25 brass contacts plated with gold over nickel for excellent conductivity.
- Designed for panel mount installations with straight orientation.
- Supports current up to 3A and voltage rating of 250V.
- Operates reliably between -55°C and 105°C.
- Includes solder cup termination type appropriate for cable connections.
- Provides EMI shielding and ESD insulation for enhanced signal integrity.
- Compatible with HDE, HDF, HDP, and HD-20 series connectors.
Product Description
TE Connectivity 5-747912-2 AMPLIMITE HD-20 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Male is a high-density electrical connector designed for secure and efficient communication and data interface applications. Featuring a steel housing and brass contacts plated with gold over nickel, it ensures durability and superior electrical conductivity. The connector supports a current rating of 3A and voltage rating of 250V, making it suitable for a broad range of industrial and electronic applications.
This D-Sub Connector follows the AMPLIMITE HD-20 series standard with 25 contacts arranged in a straight, panel mount configuration. It features a solder cup termination type, allowing reliable cable connections. The connector operates within a temperature range of -55°C to 105°C, ensuring stable performance in demanding environments.
EMI shielding and ESD insulation are integral to this connector's design, providing protection against electromagnetic interference and electrostatic discharge. Its shell construction and thermoplastic inserts contribute to overall ruggedness and resistance to environmental factors.
This model is compatible with matching AMPLIMITE HD-20 connectors including HDE, HDF, HDP, and board mount variants. It offers a 65% higher density than standard HD-20 connectors, optimizing space in panel and device designs.
Steel housing for mechanical strength and protection. Gold over nickel plated brass contacts for enhanced conductivity and corrosion resistance. Solder cup termination ensures secure cable attachment. Panel mount type with straight orientation for easy installation.
Supports 3A current and 250V voltage ratings. Wide operating temperature range from -55°C to 105°C. EMI shielding and ESD protection for signal integrity. Compatible with standard AMPLIMITE HD-20 series connectors. Space-saving design with increased contact density.
This connector is suitable for industrial, electronic, and communication applications requiring reliable, high-density electrical connections. It is ideal for use in data interfaces, control systems, and other environments demanding precision and durability.
Explore the full range of TE Connectivity connectors and accessories on EnvMart for comprehensive solutions in power and signal connectivity.
