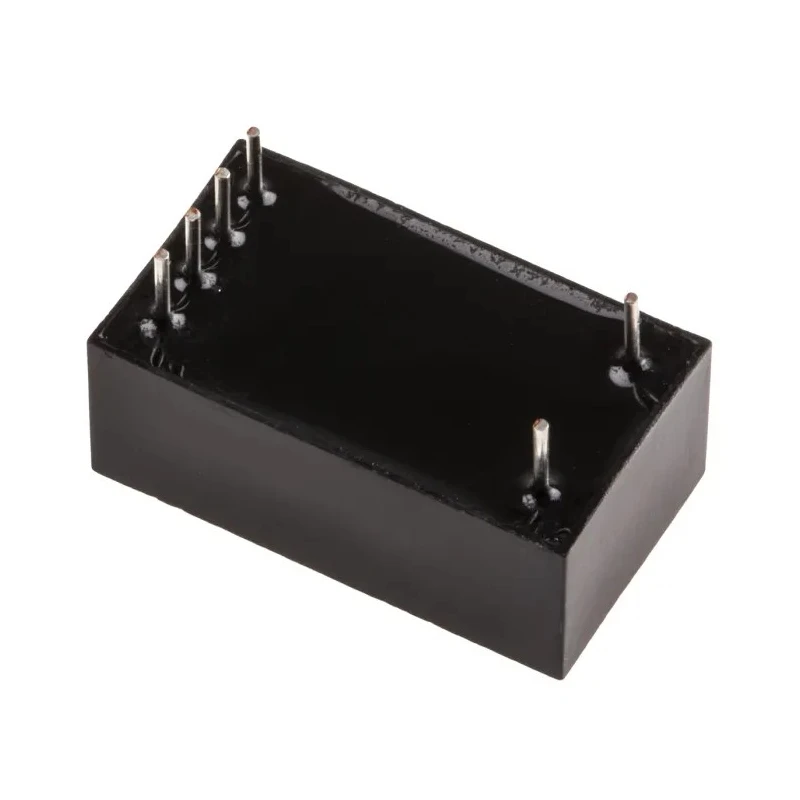

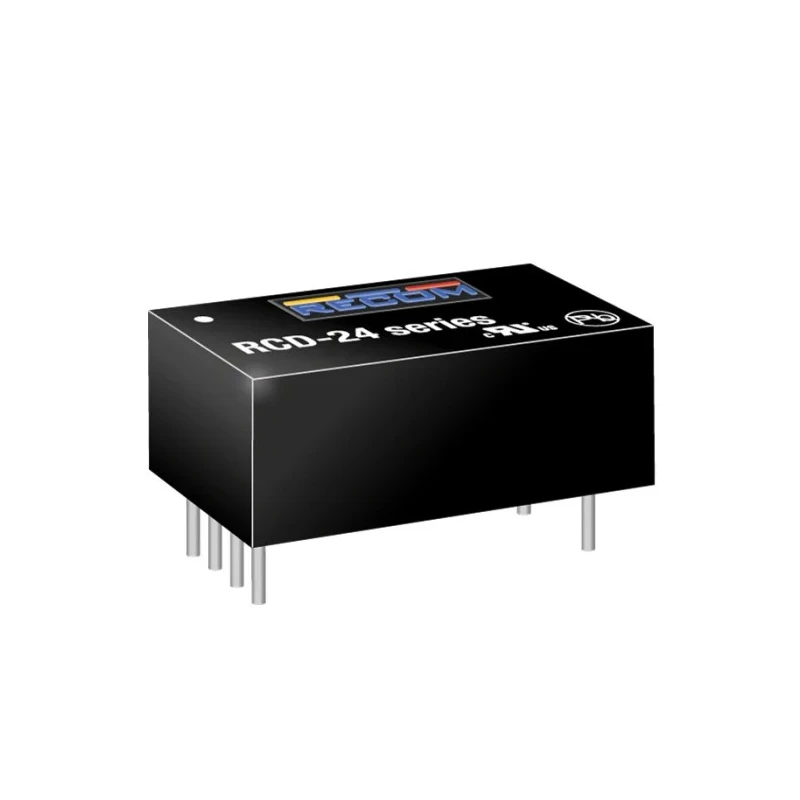

Recom IP67 1 Output LED Driver 35V DC 10.5W 1200mA PWM Enclosed DC-DC Converter
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Recom |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Wire |
| Series | RCD-24 |
| Configuration | Enclosed |
| Sub Type | LIGHTLINE |
| Operating Modes | Constant Current |
| Number of outputs | 1 |
| Maximum Output Power | 10.5W |
| Input Voltage | 36V dc |
| Output Voltage | 35V dc |
| Power Dissipation | 800mW |
| Standards/Approvals | EN55022 Class B, CSA C22.2 No 60950-1-03, EN-50121-3-2, EN61000-4-3 Class A, EN61000-4-6 Class A, EN61373, RoHS 2011/65/EU, UL-60950-1, EN-60950-1, EN61000-4-2 Class A, EN61000-4-4 Class A |
| Dimming Operation | PWM |
| Primary Type | DC-DC |
| Driver Current | 1200, 300mA |
Key Features

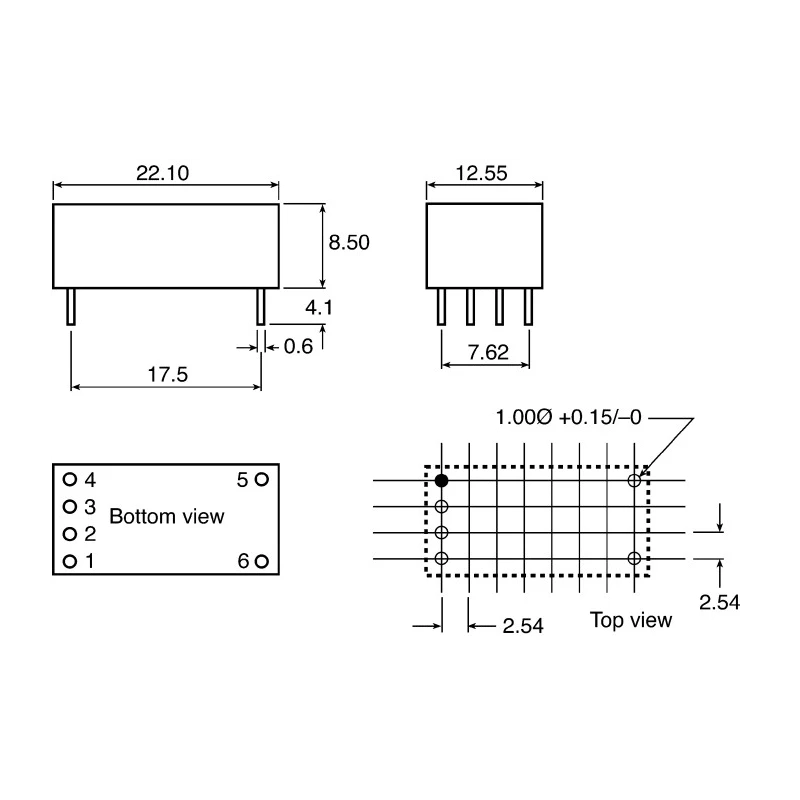

- Compact dimensions of 22.1 mm length, 12.6 mm width, and 8.5 mm height for discreet installation.
- Enclosed DC-DC converter design ensures safety and durability in demanding electrical environments.
- High efficiency of 96% reduces energy losses and heat generation.
- Wide operating temperature range from -40°C to +85°C suitable for industrial and commercial applications.
- IP67 rating provides robust protection against dust and water ingress.
- Single output configuration suitable for powering various LED lighting components.
- Designed for through-hole wire mounting for straightforward installation.
- Compliance with multiple standards including EN55022 Class B and RoHS 2011/65/EU ensures reliability and safety.
Product Description
Recom IP67 model RCD-24-0.30 is a compact and efficient LED driver designed for industrial and commercial LED lighting applications. It provides a constant current output of 1200mA at up to 35V DC with a maximum output power rating of 10.5W. This LED driver is engineered with an enclosed DC-DC converter configuration and wire mounting for secure and straightforward installation.
The device features a sophisticated dimming operation using PWM, allowing precise brightness control through digital pulse-width modulation as well as analogue voltage methods. Its high conversion efficiency of 96% minimizes power losses and reduces heat generation during operation, promoting longer component life and energy savings.
Robust design elements include an IP67 ingress protection rating, making the driver highly resistant to dust and water, suitable for harsh and demanding environments such as underwater lighting, aircraft lighting, and demanding industrial displays. It operates reliably over a broad temperature range from -40°C to +85°C, further enhancing its versatility for use in diverse climatic conditions.
Recom RCD-24-0.30 complies with rigorous international standards such as EN55022 Class B and RoHS 2011/65/EU, ensuring electromagnetic compatibility and environmental safety compliance. The driver dissipates only 800mW of power, contributing to reduced system heat buildup.
Compact dimensions measuring 22.1 (L) x 12.6 (W) x 8.5 mm (H) for easy integration into constrained spaces. Single output constant current driver delivering precise LED power regulation. Supports PWM and analogue voltage dimming for flexible control schemes.
IP67 rating confirms suitability for installation in moisture-prone or dusty locations. Wide operating temperature range enhances reliability across applications. Certified compliance with multiple safety and electromagnetic standards.
Applications span aircraft lighting, underwater lighting, and display backlighting.
This IP67 rated LED driver from Recom offers reliable, high-performance power management optimized for LED lighting systems in industrial, commercial, and specialized environments. Explore more LED driver solutions and electronic components at EnvMart to meet your project requirements.
Explore more products in our LED Drivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 10.5W.
It provides a constant output current of 1200mA.
The input voltage for this LED driver is 36V DC.
This model operates reliably over a temperature range from -40°C to +85°C.
It is designed for through-hole wire mounting, allowing for straightforward installation.
Yes, it supports PWM dimming for precise brightness control.
The dimensions are 22.1 mm in length, 12.6 mm in width, and 8.5 mm in height.
This model has an IP67 rating, providing protection against dust and water ingress.
It complies with EN55022 Class B, RoHS 2011/65/EU, and several other international standards.
The power dissipation is 800mW, which helps reduce system heat buildup.
It features an enclosed DC-DC converter configuration.
This model is suitable for applications such as aircraft lighting, underwater lighting, and display backlighting.
