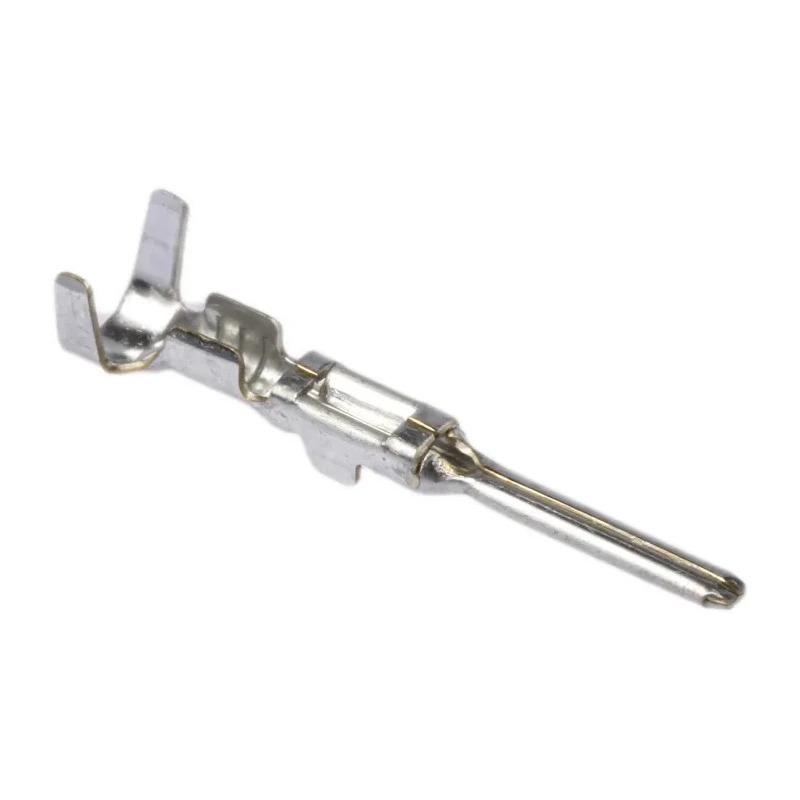

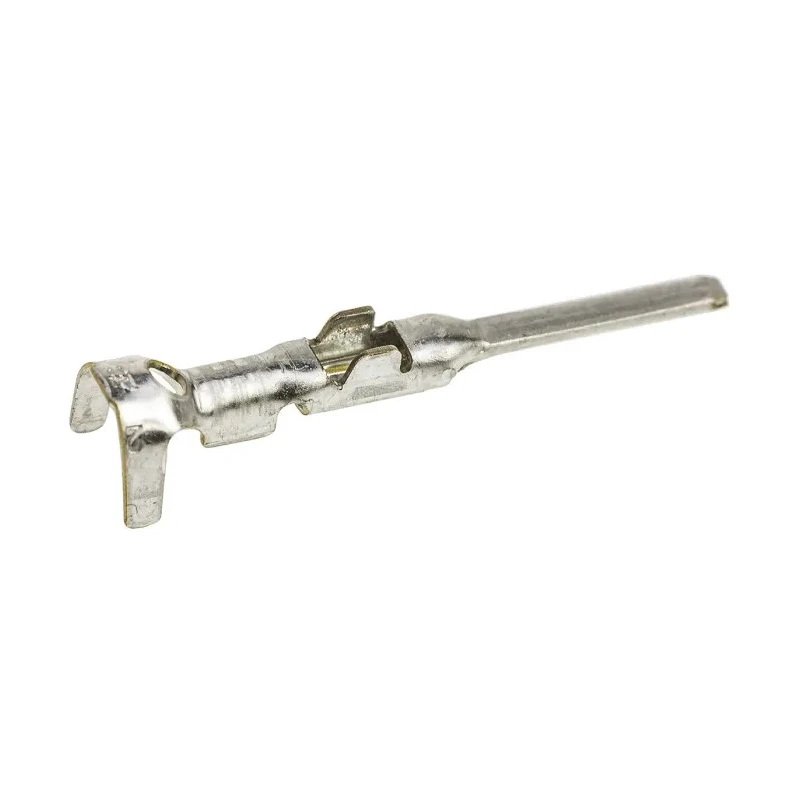

TE Connectivity MINI-MIC Series Male Crimp Terminal 14A, 21 AWG Min Crimp, 20 AWG Max 183036-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 14A |
| Length | 22.7mm |
| Model | 183036-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | MINI-MIC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| For Use With | AMP SUPERSEAL 1.5 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.35mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 21AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- Constructed from brass with tin plating for reliable conductivity and corrosion resistance.
- Suitable for use with AMP SUPERSEAL 1.5 Connector Housing systems.
- Operates efficiently within temperature ranges from -40°C to 125°C.
- Termination is by crimp method ensuring secure and durable electrical connection.
- Measures 22.7 mm in length, compatible with automotive and industrial applications.
- Features a sturdy double contact spring design for enhanced reliability.
- Maintains IP67 sealing when used with appropriate wire seals for waterproof protection.
- Secondary lock system ensures correct and complete insertion of the contact.
Product Description
TE Connectivity 183036-1 Male Crimp Terminal MINI-MIC Series 14A, designed for use with AMP SUPERSEAL 1.5 Connector Housing. It accepts wire sizes from 21 AWG minimum to 20 AWG maximum with a robust brass contact material plated with tin for optimum reliability and conductivity.
This crimp terminal operates effectively in harsh environments with an operating temperature range of -40°C to 125°C, ensuring durable performance in automotive and industrial electrical systems.
The 22.7 mm length terminal features a secure crimp termination method, double contact spring design, and a secondary locking mechanism that prevents incomplete contact insertion, promoting high reliability in connections.
When combined with suitable wire seals, the terminal maintains an IP67 rated waterproof seal, making it highly suitable for vulnerable electrical environments such as automotive sensor devices, oil pressure senders, and water temperature monitoring units requiring robust waterproof connectors.
Constructed from high-quality brass and tin plating. Compatible with AMP SUPERSEAL 1.5 Connector Housing. Rated current of 14A ensures reliable electrical performance. Temperature operating range from -40°C to 125°C. Length dimension of 22.7mm enhances compatibility with various automotive connectors.
Secondary lock and double contact spring design ensure secure terminal insertion. IP67 sealed waterproof protection with compatible seals. Ideal for automotive and industrial electrical applications requiring reliable waterproof connectors.
This product is new and made in India. It is recommended for industrial, automotive, and manufacturing uses requiring robust, reliable, and waterproof electrical terminal solutions. Explore more TE Connectivity products and related components on EnvMart for your connectivity needs.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a maximum current rating of 14A.
It accepts wire sizes from 21 AWG minimum to 20 AWG maximum.
The operating temperature range is from -40°C to 125°C.
The terminal measures 22.7 mm in length.
It is constructed from brass with tin plating for reliable conductivity and corrosion resistance.
Yes, it is suitable for use with AMP SUPERSEAL 1.5 Connector Housing systems.
The terminal uses a crimp termination method to ensure a secure electrical connection.
Yes, it maintains an IP67 sealing when used with appropriate wire seals for waterproof protection.
It features a sturdy double contact spring design and a secondary lock system to ensure correct and complete insertion.
It is suitable for automotive and industrial applications requiring reliable waterproof connectors.
This product is manufactured in India.
The contact material is brass, which is plated with tin.
