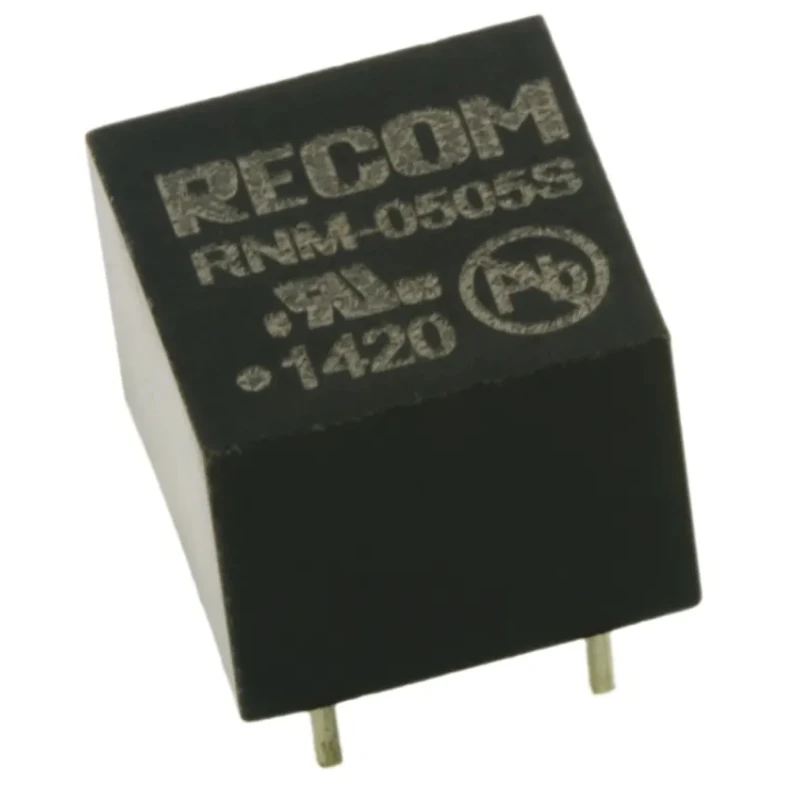

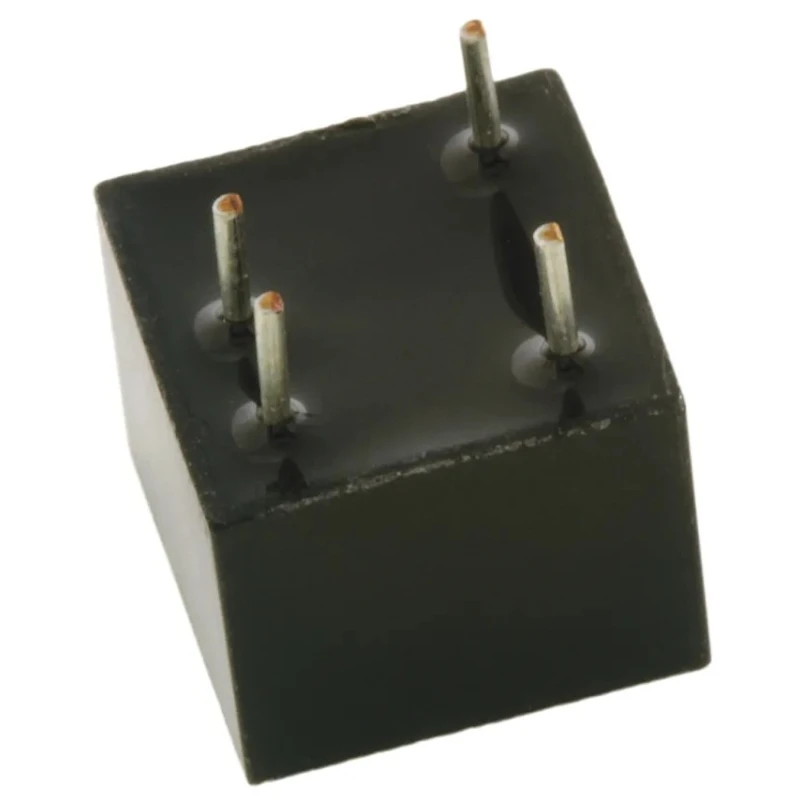

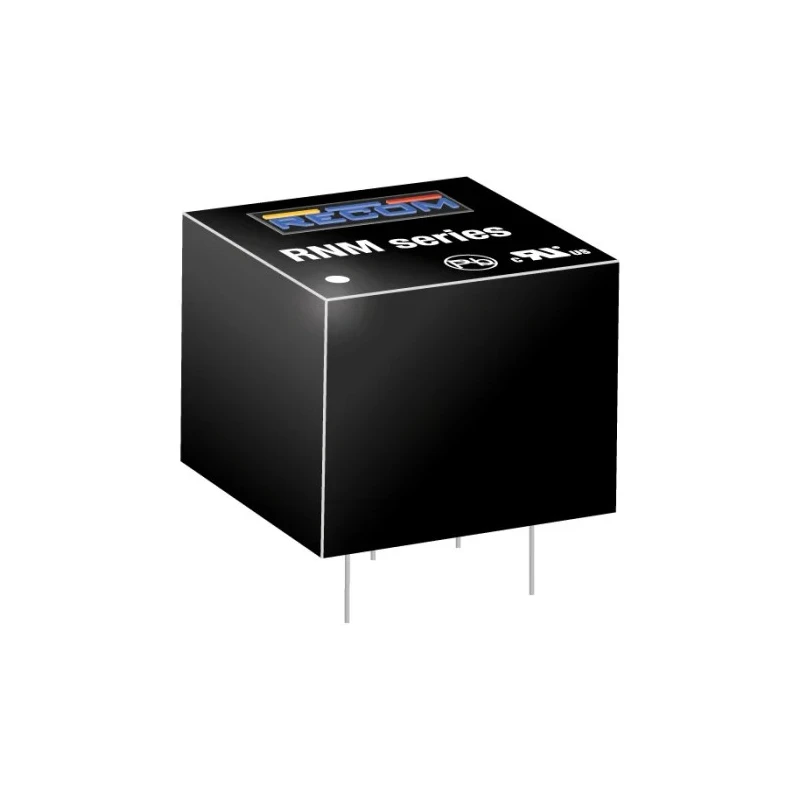

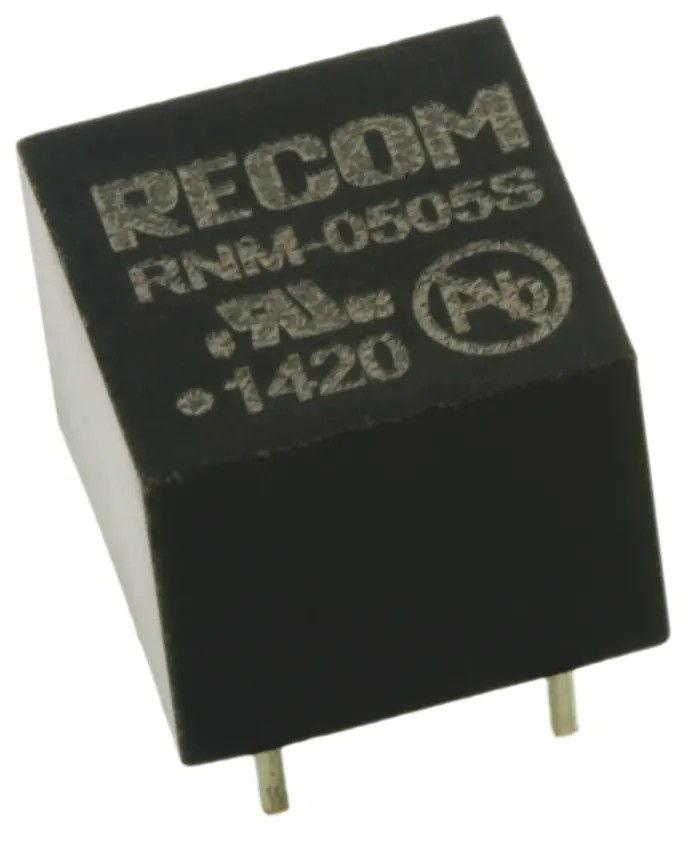

Recom DC/DC Converter 5V DC Output 200mA Through Hole Mount 1W Power RNM-0505S

Recom RNM-0505S is a highly efficient DC/DC converter designed to deliver a stable 5V DC output at up to 200mA output current with a maximum output power of 1W. The device operates with a nominal input voltage of 5V DC, supporting a range between 4.5V and 5.5V DC, making it ideal for precision low voltage applications requiring voltage regulation and isolation.

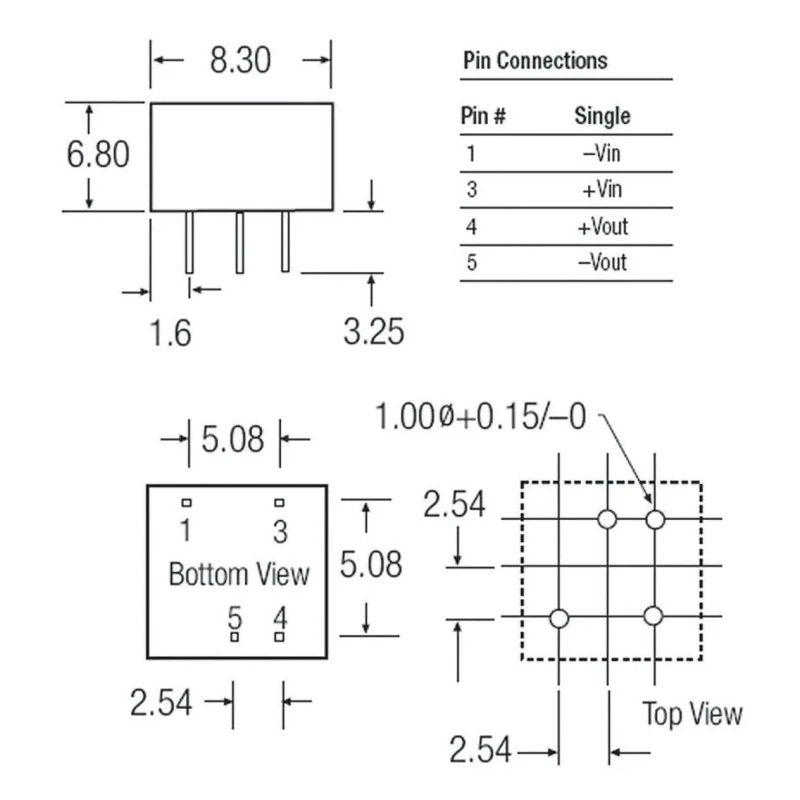

This converter features a through hole mount DIP package with 6 pins, measuring only 8.3mm in length, 6.8mm in width, and 6.8mm in depth. Its compact size facilitates integration into densely packed printed circuit boards, conserving valuable space. The unit is fully encapsulated to provide electrical isolation with an isolation voltage rating of 1kV DC, enhancing safety and reducing risks of ground loops in sensitive electronic circuits.

Designed to operate over a wide temperature range from -40°C to 85°C, the RNM-0505S converter ensures stable performance even in challenging environmental conditions typical in industrial, medical, and consumer electronics environments. It achieves a high efficiency of 78%, improving power utilization and extending battery life in portable devices.

The output maintains low ripple and noise levels of 100mV peak-to-peak to provide clean power suitable for noise-sensitive electronic systems. With a robust MTBF of 189,000 hours, this module delivers reliable long-term operation for critical applications.

Common applications include integration into consumer electronic devices, medical system instruments, automated factory processes, and testing and measuring equipment where precise voltage regulation and electrical isolation are paramount.

Operates from a 4.5 to 5.5V DC input voltage range. Provides a regulated 5V DC output at 200mA current. Compact, through-hole SIP6 DIP package for easy PCB assembly. Fully encapsulated providing 1kV DC isolation voltage.

High efficiency with 78% typical power conversion. Wide operating temperature range from -40°C to 85°C. Low output ripple and noise ensuring clean voltage supply. Long reliability with MTBF of 189,000 hours. This product is made in Taiwan, Province Of China, and complies with CSA, IEC, and UL safety standards.
