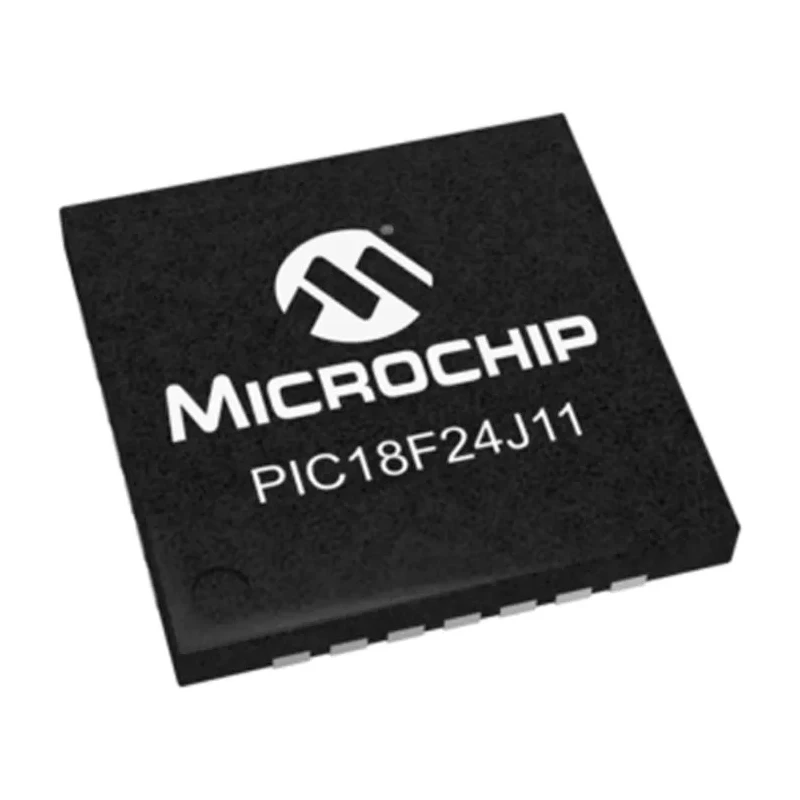

Microchip 8 bit PIC PIC18F Microcontroller, 16kB FLASH, 48 MHz, 28-Pin QFN PIC18F24J11-I/ML
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 6mm |
| Model | PIC18F24J11-I/ML |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.78kB |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2.15V |
| Device Core | PIC |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 48MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features RISC instruction set architecture for efficient processing.
- Includes 3.78kB RAM with 25 programmable I/Os for versatile interfacing.
- Operates with minimum supply voltage of 2.15 V and maximum 3.6 V.
- Supports up to 10 analog-to-digital converters with 10-bit resolution.
- Packaged in a compact 28-Pin QFN surface mount type.
- Capable of operating between -40°C to 85°C for industrial and commercial use.
- Equipped with 5 timers and 2 analogue comparators for precise control.
- RoHS compliant ensuring environmental safety.
Product Description
Microchip PIC18F24J11-I/ML is a high-performance 8 bit PIC18F microcontroller designed for a wide range of embedded systems requiring efficiency and reliability. Operating at a maximum clock frequency of 48 MHz, it integrates 16kB FLASH program memory and 3.78kB RAM memory, making it suitable for complex control algorithms and data processing tasks.
The device features a RISC instruction set architecture with 25 programmable I/O pins, providing flexibility in hardware interfacing. It includes 10 analog-to-digital converters with 10-bit resolution and 2 analogue comparators, supporting precise analog signal measurement and comparison applications.
Its compact 28-Pin QFN package enables surface mounting on compact PCBs, ideal for space-constrained electronic designs. The microcontroller supports operating voltage ranges from 2.15 V to 3.6 V, with a maximum power dissipation of 1 W, balancing performance and power consumption efficiently.
Designed to operate in industrial and commercial temperature ranges from -40°C to 85°C, this microcontroller is suitable for robust environments including industrial automation, automotive electronics, and consumer devices.
Additional features include 5 timers for time-based functionality and RoHS compliance, ensuring adherence to environmental regulations. The device is ideal for embedded applications requiring compact size and reliable high-speed processing.
Features RISC instruction set architecture for efficient processing. Includes 3.78kB RAM with 25 programmable I/Os for versatile interfacing. Operates with minimum supply voltage of 2.15 V and maximum 3.6 V. Supports up to 10 analog-to-digital converters with 10-bit resolution.
Packaged in a compact 28-Pin QFN surface mount type. Capable of operating between -40°C to 85°C for industrial and commercial use. Equipped with 5 timers and 2 analogue comparators for precise control. RoHS compliant ensuring environmental safety.
This high-performance microcontroller from Microchip is suitable for industrial automation, electronic control systems, embedded design projects, and other applications demanding reliability and low power consumption. Explore more electronics and Microcontroller offerings on EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC18F24J11-I/ML microcontroller is 48 MHz.
It features a program memory size of 16kB FLASH.
This microcontroller includes 25 programmable I/O pins for versatile interfacing.
The operating voltage range is from a minimum of 2.15 V to a maximum of 3.6 V.
This model has a RAM size of 3.78kB.
It is capable of operating in temperatures ranging from -40°C to 85°C.
It supports up to 10 analog-to-digital converters with 10-bit resolution.
The microcontroller is packaged in a compact 28-Pin QFN surface mount type.
It is equipped with 5 timers for time-based functionality.
It utilizes a RISC instruction set architecture for efficient processing.
Yes, the PIC18F24J11-I/ML is RoHS compliant, ensuring adherence to environmental regulations.
The height of this microcontroller is 950μm.
