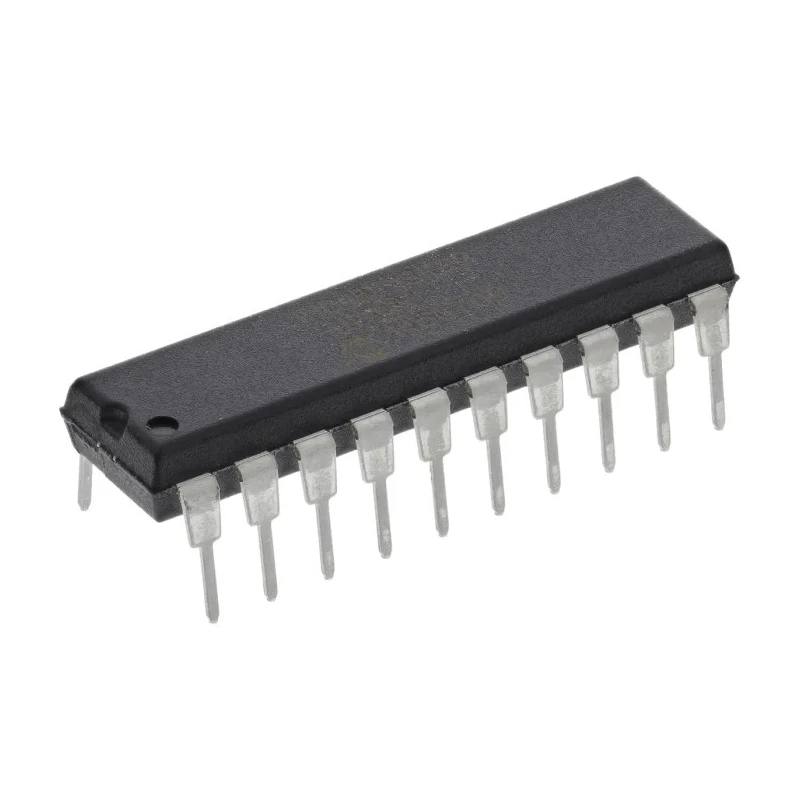

Microchip 8 bit PIC Microcontroller, PIC18F Series, 64 MHz, 8 kB Flash, 256 B RAM, 20-Pin PDIP PIC18F13K22-I/P

Microchip PIC18F13K22-I/P is a high-performance 8 bit PIC microcontroller featuring a maximum clock speed of 64 MHz and 8 kB of Flash program memory. The microcontroller integrates 256 bytes of RAM and operates with a PIC18 architecture that supports a 31-level hardware stack and an extended instruction set of 75 instructions. This architecture enhances efficiency and versatility for embedded designs.

This microcontroller is optimized with eXtreme Low Power technology making it ideal for battery-powered and energy-sensitive applications. The device supports a wide operating voltage range from 1.8 V to 5.5 V, enabling flexible power supply options. It features 12 channels of 10-bit analog-to-digital conversion, two analog comparators, and a 5-bit DAC, providing comprehensive interfaces for analog signal processing.

Connectivity is facilitated via SPI communication protocol with dedicated in-circuit serial programming (ICSP) and debugging capabilities, streamlining development and testing processes. The device offers 35 programmable I/O pins and multiple timer options, including three 16-bit timers and one 8-bit timer, supporting complex timing and control operations.

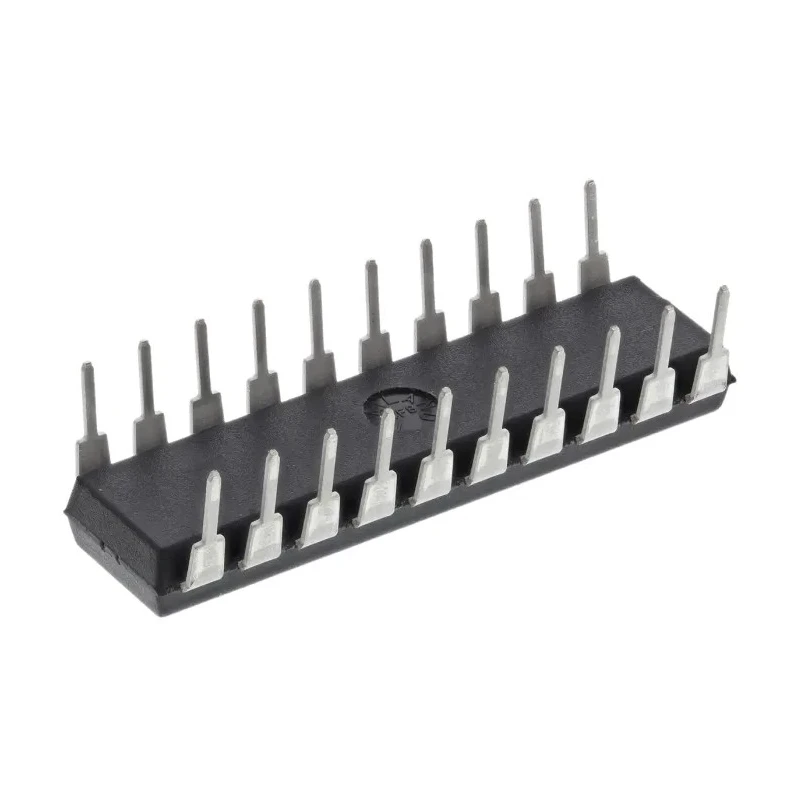

The microcontroller is housed in a 20-pin PDIP through-hole package measuring 26.92 mm by 7.11 mm, with a height of 4.95 mm, making it compatible with standard prototyping and production boards. It is engineered to operate reliably in industrial environments, rated for temperature ranges from -40°C to 85°C. Power dissipation is limited to 800 mW to safeguard device integrity under various load conditions.

Based on PIC18 architecture with extended instruction set and hardware stack. Includes multiple analog interfaces: 10-bit ADC channels, comparators, and DAC. Supports SPI interface along with ICSP and in-circuit debugging.

Multiple timers provide flexible timing functions for diverse applications. Designed for embedded use with low power consumption and robust operating temperature range. 20-pin PDIP package suited for traditional through-hole mounting.

This microcontroller is widely used in industrial, consumer electronics, automotive control systems, and embedded application development. Its combination of performance, peripherals, and low power makes it suitable for complex control tasks and real-time applications.

Explore more Microcontrollers in the Microchip PIC18F series and expand your design possibilities with proven reliability and broad industry support at EnvMart.
