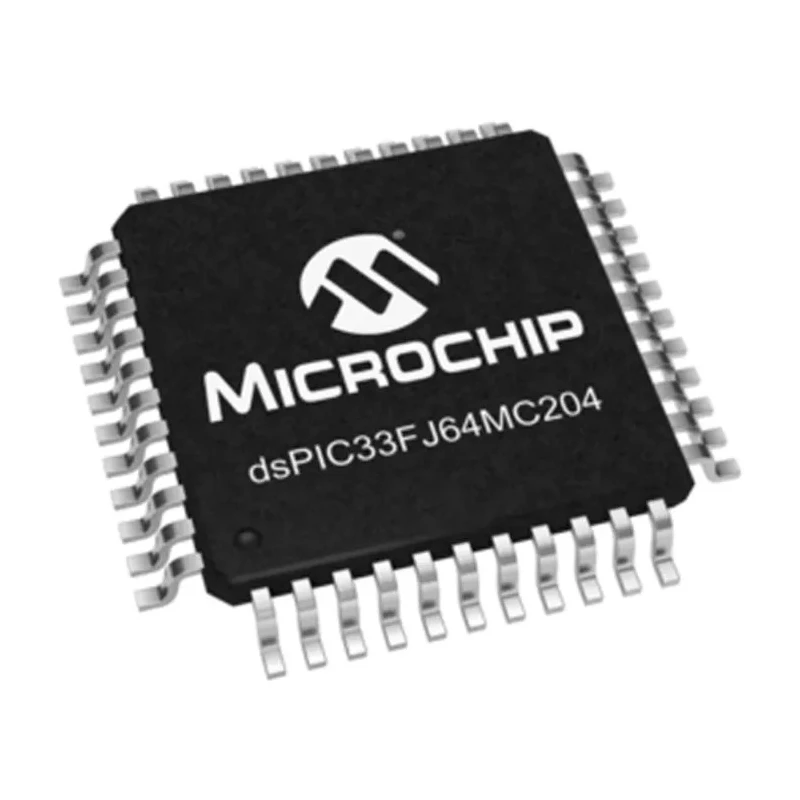

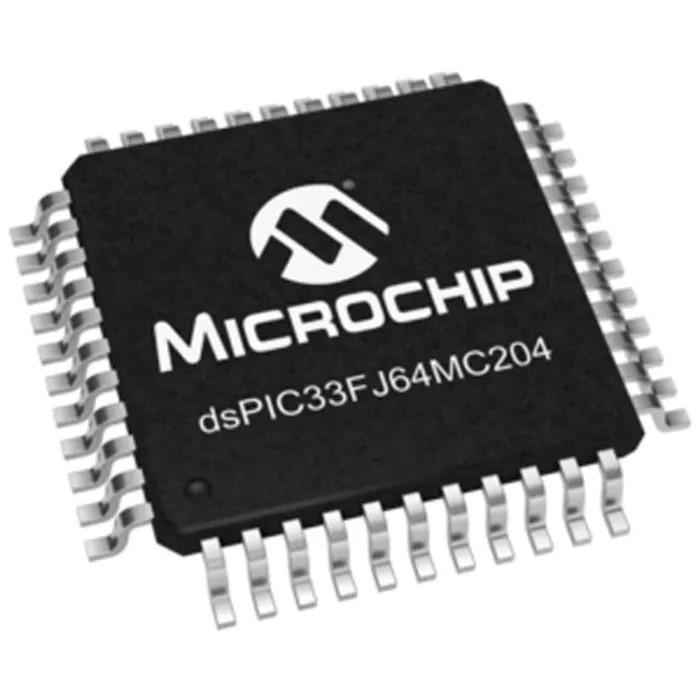

Microchip 16 bit Digital Signal Processor 40 MHz 70 MIPS 64kB FLASH 8kB RAM 44-Pin TQFP dsPIC33FJ64MC204-I/PT

Microchip dsPIC33FJ64MC204-I/PT is a high-performance 16 bit Digital Signal Processor that operates at a maximum clock frequency of 40 MHz. It features a 64kB FLASH program memory combined with 8kB RAM to support complex digital control and signal processing algorithms efficiently. The device architecture is based on a RISC instruction set which supports fast execution of digital filter algorithms and high-speed precision digital control loops.

Housed in a compact 44-pin TQFP surface mount package measuring 10 mm in length and width, and 1 mm in height, this DSP is suitable for integration into space-constrained industrial and automotive electronic designs. It operates reliably over a temperature range of -40°C to 85°C, meeting automotive standard AEC-Q100, which ensures high reliability and performance in demanding environments.

The processor outputs 70 MIPS of throughput, making it ideal for applications requiring rapid data processing including motor control systems, digital power supplies with SMPS peripherals, and audio or speech processing. Its 16-bit data bus width and 5 onboard timers enhance its functionality for diverse industrial and embedded systems applications.

Operating at a minimum supply voltage of 3.3V, this device is optimized for low power consumption. The surface mount mount type and TQFP package allow easy and efficient installation on modern PCBs.

Maximum clock frequency of 40 MHz delivering 70 MIPS processing power. 64kB FLASH and 8kB RAM memory to handle complex programs. RISC architecture for simplified instruction execution and enhanced processing speeds. 44-pin TQFP package with small footprint dimensions (10x10x1 mm) for compact PCB layouts.

Wide operating temperature range (-40°C to 85°C) compliant with automotive standards. Includes 5 timers enabling versatile timing applications. Low minimum supply voltage of 3.3V enabling energy efficient operation.

This Microchip Digital Signal Processor is well suited for industrial automation, automotive electronics, embedded control applications, and power management systems requiring precise timing and high performance computation.
