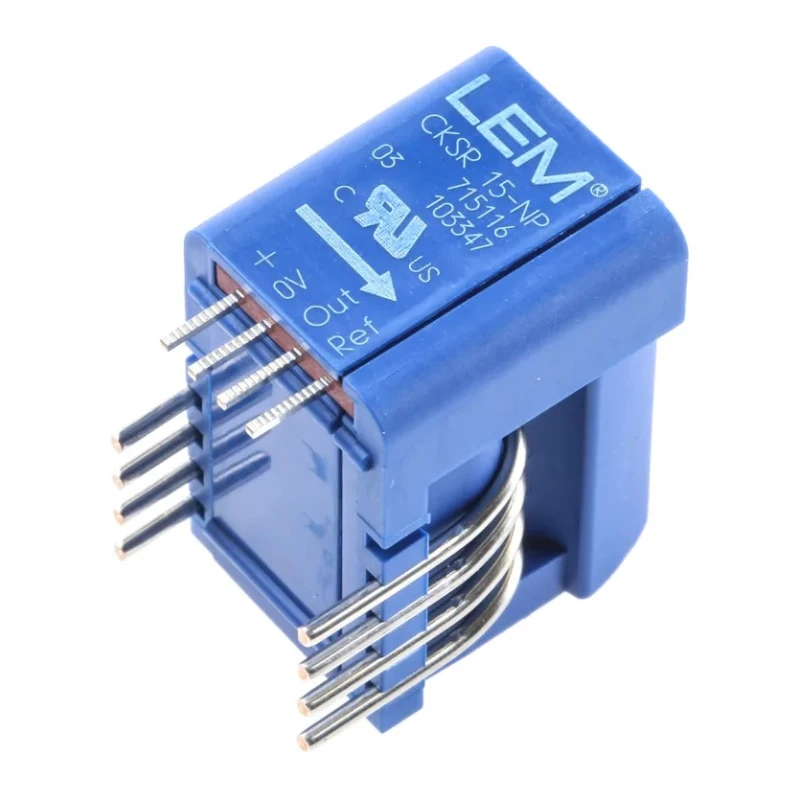

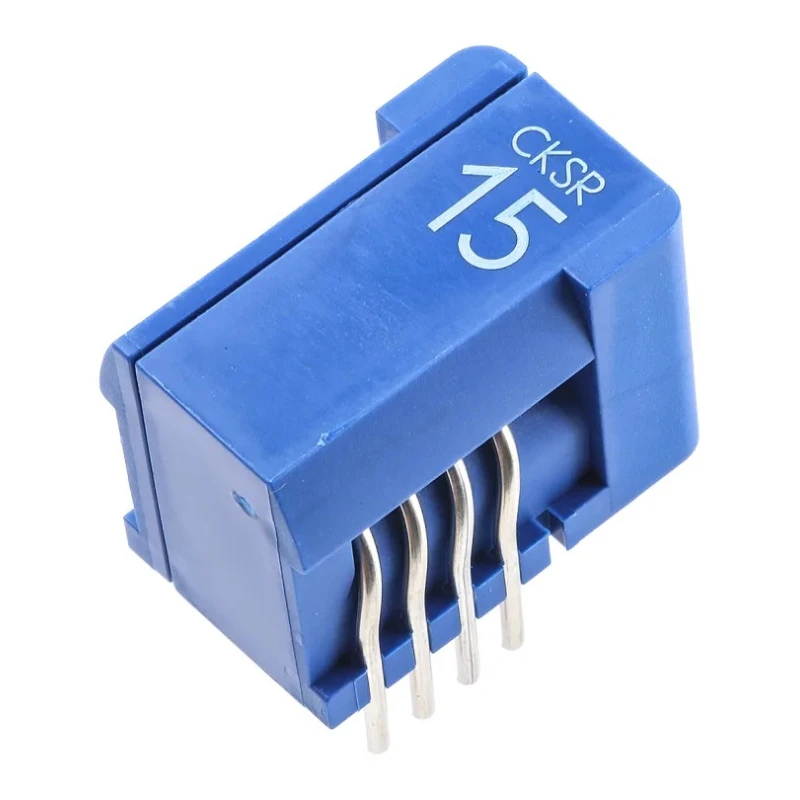

LEM CKSR Series Current Transformer 15 A 5.25 V PCB Mount CKSR 15-NP

LEM CKSR 15-NP Current Transformer is a precision measurement device from the CKSR series, engineered for industrial and process control applications requiring accurate current detection. Featuring a primary current rating of 15 A and a supply voltage of 5.25 V, this transformer is designed for mounting directly onto PCBs, ensuring minimal footprint with dimensions of approximately 16.5 mm length, 21.91 mm width, and 13.4 mm depth.

Operating efficiently in temperatures ranging from -40°C to 105°C and frequencies between 200 kHz and 300 kHz, the CKSR 15-NP uses Closed Loop Fluxgate technology to measure both AC and DC currents with low temperature drift and high precision.

This model boasts multiple international certifications such as CE, EN 50178: 1997, IEC 60950-1: 2006, IEC 61010-1: 2010, IEC 61326-1: 2012, and UL 508: 2013, ensuring compliance with global industrial safety and quality standards.

With a lightweight construction of only 9 grams, it minimizes additional load on circuit boards and is ideal for automation, manufacturing process control, and electrical distribution monitoring.

Compact PCB mount design for space-saving integration. Wide operating temperature range of -40°C to 105°C for harsh environments. Frequency support from 200 kHz up to 300 kHz for high-speed applications. International safety and quality approvals including CE and IEC standards.

Closed Loop Fluxgate technology for superior measurement accuracy. Lightweight at 9 g to reduce PCB mechanical stress. Capable of measuring both AC and DC currents. Suitable for industrial automation and process control use cases.

LEM products stand for reliability and precision in electrical measurement solutions. This CKSR 15-NP Current Transformer is a compact yet powerful component designed to integrate seamlessly into complex electrical and automation systems.
