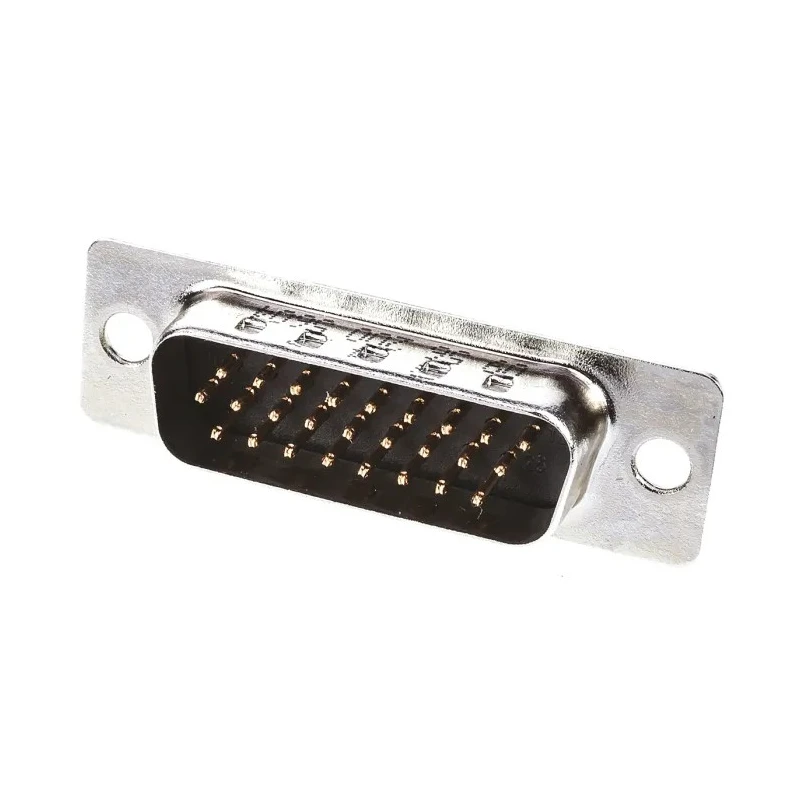

HARTING D-Sub 26 Way Straight 2.29 mm Pitch Cable D-Sub Connector 09562005615050
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
Key Features
- Features 26 contacts with a 2.29 mm pitch for high density connection.
- Supports a current rating of 2 amperes.
- Constructed with gold-plated copper alloy contacts for enhanced conductivity and durability.
- Equipped with a robust steel housing for structural integrity.
- Designed for solder termination and cable mount installation.
- Supports operating temperatures ranging from -55°C to 105°C.
- Male connector with a straight orientation for easy integration.
- Manufactured in China ensuring quality compliance.
Product Description
HARTING 09562005615050 D-Sub 26 Way Straight 2.29 mm Pitch Cable D-Sub Connector is engineered for high density and reliable cable connections in electronic systems. This connector is designed to exceed the contact capacity of a standard subminiature D connector by 70%, making it an ideal choice for applications requiring compact yet robust connections.
The connector features 26 stamped solder cup pins, gold-plated to at least 0.76 μm (30 μinch), ensuring excellent electrical performance and corrosion resistance. The housing is made of sturdy steel with a tinned shell, enhancing mechanical protection and EMI shielding benefits.
Suitable for cable mounting, this male connector with a straight orientation supports a current rating of 2A and a voltage rating up to 1000V. Its operating temperature range from -55°C to 105°C allows use in a wide range of industrial and electronic environments.
This product is developed to meet performance level S4 and does not include specific standards approvals, but Harting’s quality manufacturing processes ensure robust and reliable performance.
Typical use cases include industrial automation, control systems, communication equipment, and other electronic and power connector applications where compact, high-density D-Sub connectors are preferred.
Features 26 contacts with 2.29 mm pitch. Copper alloy contacts with gold plating for optimal conductivity. Steel housing for durability and EMI protection. Rated for 1000V and 2A current. Supports solder termination and cable mounting.
Operating temperature from -55°C to 105°C suits harsh environments. Male connector with straight orientation for easy integration. Explore the range of D-Sub Connectors at EnvMart for versatile electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector supports a current rating of 2 amperes.
The voltage rating for this model is up to 1000 volts.
The connector features a pitch size of 2.29 mm for its 26 contacts.
It is constructed with gold-plated copper alloy contacts and a robust steel housing.
The operating temperature range for this model is from -55°C to 105°C.
This connector is designed for solder termination, suitable for cable mounting.
The connector has a straight orientation, facilitating easy integration.
This model features 26 contacts.
It is suitable for applications in industrial automation, control systems, and communication equipment.
The connector has male contacts.
The steel housing enhances mechanical protection and provides EMI shielding benefits.
This connector is manufactured in China, ensuring quality compliance.
