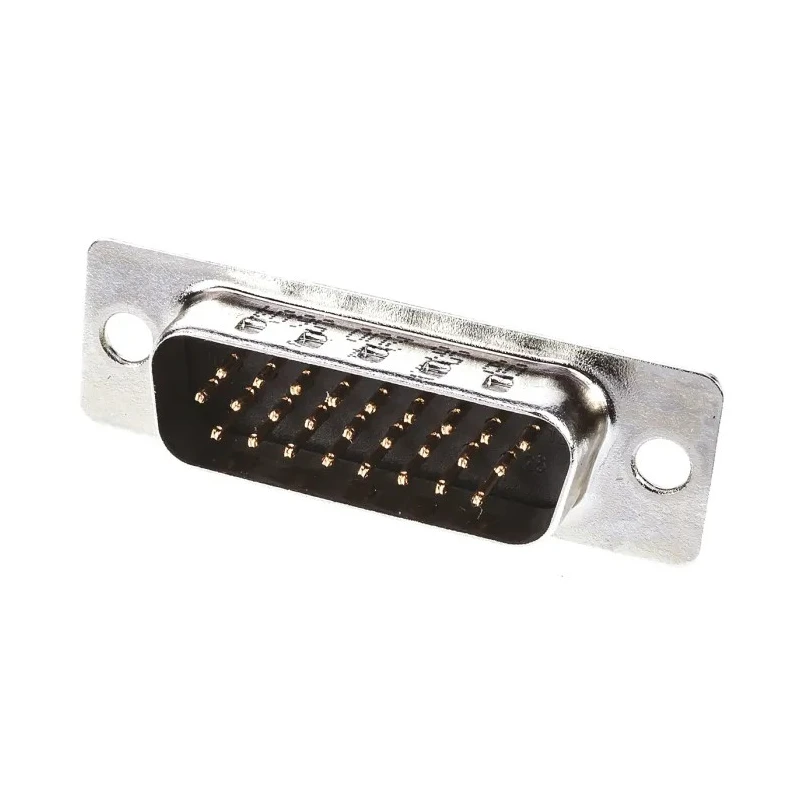

HARTING D-Sub 26 Way Straight 2.29 mm Pitch Cable D-Sub Connector 09562005615050
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
| HARTING D-Sub 26 Way Straight 2.29 mm Pitch Cable D-Sub ConnectorBrand | HARTING |
Key Features
- Features 26 contacts supporting a current rating of 2A each.
- Constructed with a steel housing and copper alloy contacts plated with gold for reliable conductivity.
- Operates at voltages up to 1000V with operating temperature range from -55°C to 105°C.
- Utilizes stamped solder cup termination for secure cable connection.
- Male contact gender with a straight orientation for cable mounting applications.
- High-density design exceeding standard subminiature D connector capacity by 70%.
- Performance level S4 with gold plating thickness ≥ 0.76 μm (30 μinch) for enhanced durability.
- Manufactured in China ensuring consistent quality and compliance.
Product Description
HARTING 09562005615050 D-Sub 26 Way Straight 2.29 mm Pitch Cable D-Sub Connector is engineered for high-density cable connection applications in electronics and power distribution systems. With a steel housing and durable copper alloy male contacts plated with gold, it ensures excellent electrical performance and mechanical robustness.
This connector supports a maximum current of 2A per contact and withstands operating voltages up to 1000V. It is rated for operation in harsh environments with a temperature range from -55°C to 105°C, making it suitable for industrial, manufacturing, and electronic equipment assemblies.
The straight cabling orientation and stamped solder cups facilitate reliable, soldered cable termination, optimizing installation efficiency and connection integrity. The high-density design provides a 70% increase in contact capacity compared to standard D-sub connectors, improving signal density in limited space.
With performance level S4, gold plating thickness ≥ 0.76 μm ensures corrosion resistance and long-term contact reliability. This product is manufactured in China, adhering to quality standards expected in professional industrial applications.
Features 26 contacts supporting a current rating of 2A each. Steel housing and copper alloy contacts plated with gold. Operates up to 1000V and temperature range -55°C to 105°C. Stamped solder cup termination type for cable mounting.
High-density contact arrangement increasing capacity by 70% over standard connectors. Male contact gender with straight orientation. Performance level S4 plating for durability and corrosion resistance. Manufactured in China to ensure quality and compliance.
This HARTING D-Sub Connector is ideal for use in electronics manufacturing, industrial equipment, test and measurement devices, communication systems, and other professional applications requiring compact, reliable, and high-performance connectors.
Explore our extensive range of industrial connectors at EnvMart for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Each contact supports a maximum current rating of 2A.
It operates at voltages up to 1000V.
The operating temperature range is from -55°C to 105°C.
It features a steel housing and copper alloy contacts plated with gold for reliable conductivity.
This model has a total of 26 contacts.
It utilizes stamped solder cup termination for secure cable connection.
The pitch size is 2.29 mm.
It has a male contact gender with a straight orientation.
It has a performance level of S4 with gold plating thickness of ≥ 0.76 μm.
This connector is manufactured in China, ensuring consistent quality and compliance.
It is suitable for electronics manufacturing, industrial equipment, test and measurement devices, and communication systems.
The D-Sub shell size is A.
