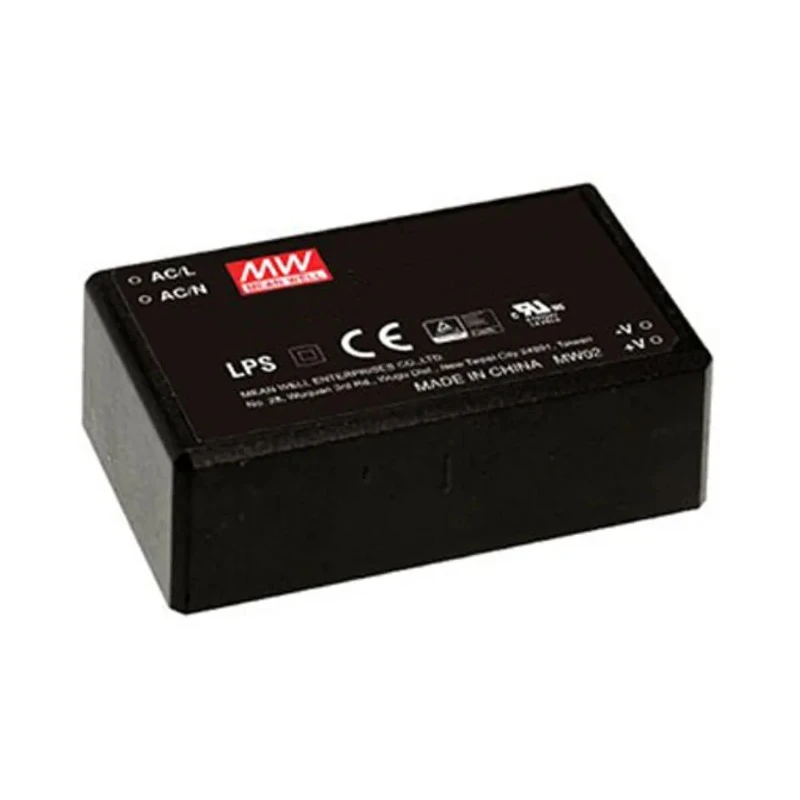

MEAN WELL IRM-45-5 45W Switching Power Supply 5V DC Output 8A PCB Mount IRM-45-5

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL IRM-45-5 45W Switching Power Supply 5V DC Output 8A PCB Mount IRM-45-5

Name: MEAN WELL IRM-45-5 45W Switching Power Supply 5V DC Output 8A PCB Mount IRM-45-5
Brand: MEAN WELL
SKU: 204359
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	40W
Efficiency	83.5%
Length	87mm
Model	IRM-45-5
Depth	29.5mm
Gross Weight	230g
Width	52mm
Mount Type	PCB
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Immunity	Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, heavy industry level (surge L-N: 1 kV), criteria A
Series	IRM
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	5V dc
SMPS Output Current	8A
Minimum Input Voltage	85V ac
EMC Emission	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

Key Features

Compact encapsulated AC-DC power supply with 45W output power.
Universal input voltage range from 85V AC to 264V AC.
Output current of 8A for stable power delivery.
Constructed with flame retardant plastic and fully potted silicone for anti-vibration and dust resistance.
Features overvoltage, overload, and short circuit protection for safety.
High efficiency up to 90.5% with low no-load power consumption below 0.1W.
Operating temperature range from -30°C to 70°C.
Complies with IEC 62368-1, UL 62368-1, TUV BS EN/EN 62368-1, and EAC TP TC 004 standards.

Product Description

MEAN WELL IRM-45-5 is a 45 W switching power supply designed for reliable 5V DC output at 8A current. The encapsulated AC-DC supply features a compact PCB mount form factor constructed with a 94V-0 flame retardant plastic case and fully potted silicone. This design provides excellent resistance to vibration up to 5G, dust, and moisture, making it ideal for industrial environments.

It supports a universal input voltage ranging from 85 V AC to 264 V AC and operates efficiently with a maximum efficiency of 90.5%, while consuming less than 0.1 W in no-load conditions. The unit delivers a stable output with overvoltage, overload, and short circuit protection mechanisms, ensuring enhanced safety and reliability for connected devices.

The IRM-45-5 complies with international safety and EMC standards including IEC 62368-1, UL 62368-1, TUV BS EN/EN 62368-1, and EAC TP TC 004, making it suitable for global industrial and commercial use. It is cooled by free air convection, eliminating the need for additional cooling components.

This power supply is particularly suited for hand held electronic devices, factory automation, mechanical equipment, and industrial electrical equipment. Its integrated EMI filtering components help in maintaining excellent electromagnetic compatibility by minimizing interference with other devices.

Compact 45 W output single voltage power supply. Universal AC input voltage (85-264V AC) for global use. Robust construction with flame retardant plastic and potting. High efficiency up to 90.5% and low no-load power consumption.

Comprehensive protection features for safe operation. Wide operating temperature range from -30°C to 70°C. Compliant with major international safety and EMC standards. Energy-saving and environmentally friendly design. PCB mount type ideal for integration into electronic systems.

Suitable for industrial automation and electrical equipment applications. Explore more power supplies and Switching Power Supplies at EnvMart for your industrial and electronic component needs.
