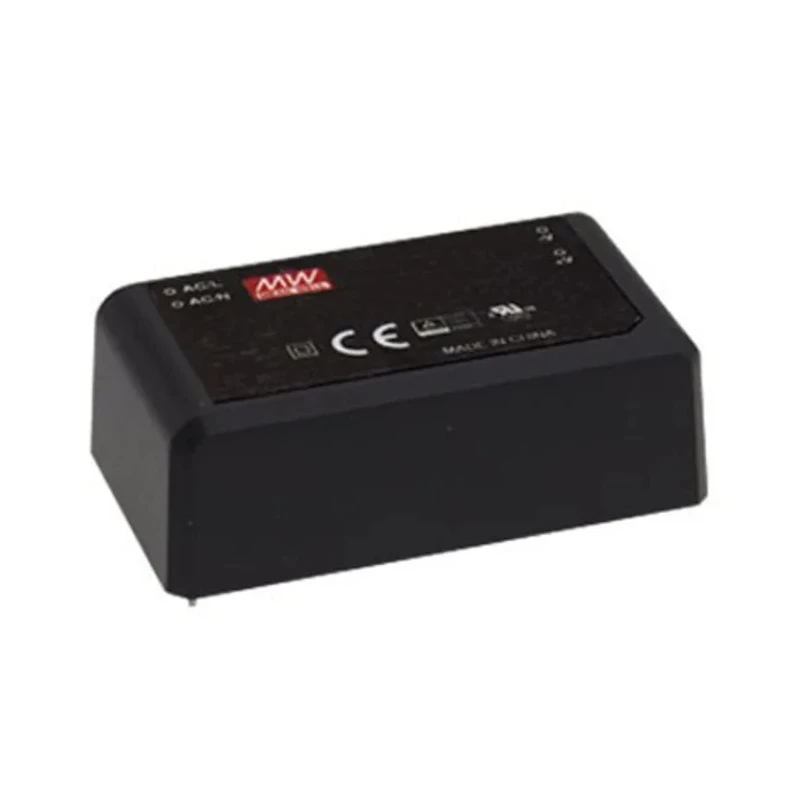

MEAN WELL IRM-30-48 Switching Power Supply 48V DC 30W Universal Input 85-264V AC PCB Mount IRM-30-48

MEAN WELL IRM-30-48 is a 30W single output encapsulated AC-DC switching power supply designed for robust industrial and electronic applications. The power supply delivers a maximum output voltage of 48V DC with an output current capacity of 630mA, powered by a universal AC input voltage range from 85V to 264V AC. It is built with a 94V-0 flame retardant plastic case fully potted with silicone to ensure anti-vibration capability up to 5G, dust and moisture resistance, and enhanced heat dissipation.

This switching power supply features high efficiency up to 90%, low no-load power consumption under 0.1W, and excellent EMI/RFI filtering, complying with global EMC standards. Its Class II isolation design and cooling by free air convection ensure safe and stable operation from -30°C to 70°C. Protection features include overvoltage, overload, and short circuit safeguards, making it a reliable choice for demanding electronic devices and industrial environments.

The compact PCB mounting form factor with dimensions 69.5mm (length) x 39mm (width) x 24mm (depth) and a lightweight 109g weight makes it suitable for integration in handheld devices, factory automation systems, mechanical equipment, and other industrial electrical applications.

Compact size with flame retardant plastic case and fully potted silicone for durability. Universal AC input voltage range from 85 V to 264 V enabling worldwide compatibility. High efficiency up to 90% with low no-load power consumption below 0.1 W.

Includes built-in EMI filtering and excellent EMC compliance for industrial environments. Operates in wide temperature range from -30°C to +70°C for harsh conditions. Provides protection against overvoltage, overload, and short circuit conditions.

Class II isolation for enhanced safety and cooled by free air convection. Ready for PCB mounting with soldering terminals for easy integration. 100% full load burn-in test ensures high reliability and long life. Complies with safety standards UL60950-1 and TUV EN60950-1.

This product is designed for use in industrial, manufacturing, factory automation, and electronic device applications requiring stable and reliable power supply performance. Its universal input and protective features make it adaptable to diverse environmental and electrical demands.
