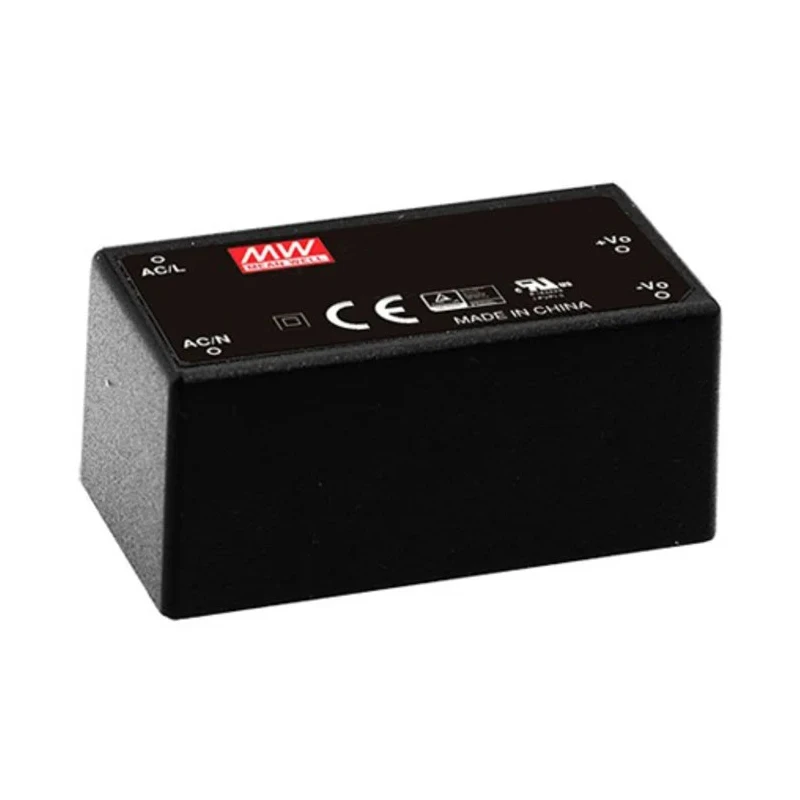

MEAN WELL 5 W Single Output PCB Mount Switching Power Supply 5 V DC 1 A IRM-05-5
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 5W |
| Efficiency | 71% |
| Length | 45.7mm |
| Model | IRM-05-5 |
| Depth | 21.5mm |
| Gross Weight | 40g |
| Width | 25.4mm |
| Mount Type | PCB |
| Safety Standards | UL60950-1, TUV EN60950-1 approved |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level (surge L-N: 1 KV), criteria A |
| Series | IRM-05 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 5V dc |
| SMPS Output Current | 1A |
| Minimum Input Voltage | 85V ac |
| EMC Emission | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
Key Features
- Offers a compact, encapsulated design suitable for PCB mounting.
- Operates with a universal AC input voltage range from 85 V AC to 264 V AC.
- Features high conversion efficiency up to 77 percent and low no-load power consumption below 0.1 W.
- Includes built-in overvoltage, overload, and short circuit protection for enhanced reliability.
- Designed to withstand vibration up to 5G and resist dust and moisture for industrial environments.
- Operates in temperature range from -30°C to 70°C ensuring stable performance.
- Meets international safety standards including UL 60950-1 and TUV EN 60950-1 certifications.
- Equipped with EMC compliance for emissions (EN55022 Class B) and immunity (EN61000 series).
Product Description
MEAN WELL IRM-05-5 is a 5 W single output PCB mount switching power supply designed for industrial, electronic, and automation applications. This encapsulated AC-DC power module supports universal input voltage from 85 V AC to 264 V AC and delivers a regulated 5 V DC output at 1 A.
The compact form factor with dimensions 45.7 mm (L) x 25.4 mm (W) x 21.5 mm (D) and lightweight 40 grams allows seamless integration onto PCBs. Featuring high efficiency up to 77% and very low no-load power (.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output of 5 V DC at a maximum current of 1 A.
The dimensions are 45.7 mm in length, 25.4 mm in width, and 21.5 mm in depth.
This unit meets international safety standards including UL 60950-1 and TUV EN 60950-1 certifications.
The gross weight of the IRM-05-5 is 40 grams.
It operates within a temperature range of -30°C to 70°C.
Yes, it includes built-in overvoltage, overload, and short circuit protection for enhanced reliability.
This model is designed for PCB mounting.
It complies with EMC emissions (EN55022 Class B) and immunity (EN61000 series) standards.
The maximum input voltage is 264 V AC.
This power supply is designed for industrial, electronic, and automation applications.
