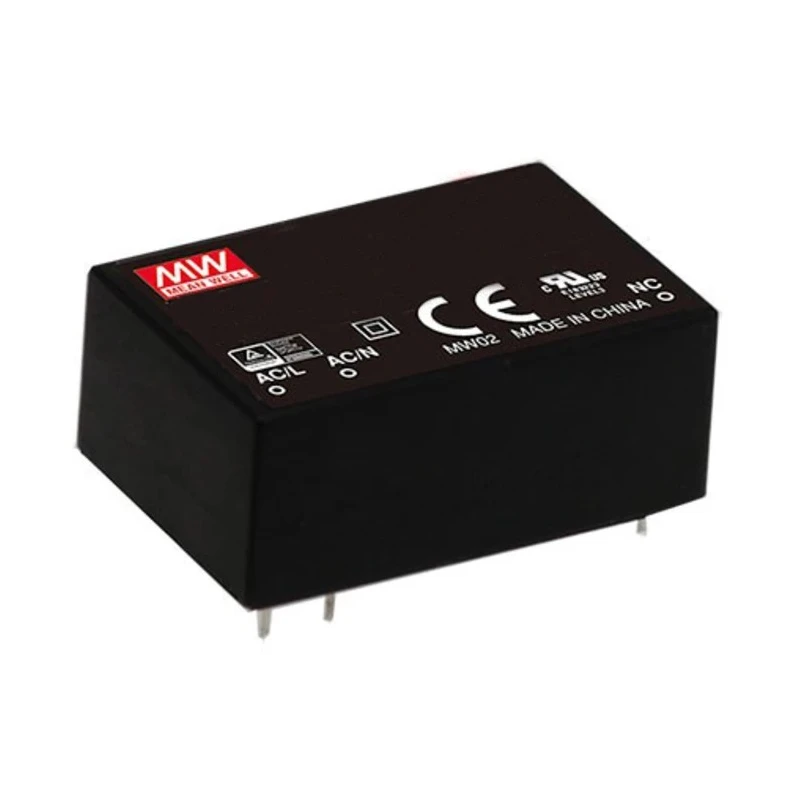

MEAN WELL IRM-03-24 Switching Power Supply 24V DC 3W 430V DC 305V AC PCB Mount IRM-03-24
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 3W |
| Efficiency | 80% |
| Length | 37mm |
| Model | IRM-03-24 |
| Depth | 15mm |
| Gross Weight | 20g |
| Width | 24mm |
| Mount Type | PCB |
| EMC Immunity | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, heavy industry level (surge L-N: 1 KV), criteria A |
| Series | IRM |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 430, 305V dc |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 125mA |
| Minimum Input Voltage | 85V ac |
| EMC Emission | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
Key Features
- Provides a single output of 24 volts DC with a power rating of 3 watts.
- Supports a wide input voltage range from 85V AC to 305V AC and 430V DC maximum input voltage.
- Equipped with overvoltage, overload, and short circuit protection for enhanced reliability.
- Constructed with a phenolic case and fully potted silicone for vibration, dust, and moisture resistance.
- Operates efficiently up to 80%, reducing energy consumption and heat generation.
- Designed for a temperature range of -30°C to 85°C, suitable for diverse environments.
- Compact size with dimensions 37mm length, 24mm width, and 15mm depth for easy PCB integration.
- Meets important safety and EMC standards including UL 62368-1, TUV, and EN55022 Class B.
Product Description
MEAN WELL IRM-03-24 is a high-quality switching power supply featuring a single 24V DC output and capable of delivering 3 watts of power. This model is designed with a compact phenolic case fully potted with silicone, offering excellent resistance to vibration up to 5G, dust, moisture, and facilitating efficient heat dissipation. It is optimized for PCB mounting, simplifying integration into electronic assemblies.
The power supply accepts a universal AC input voltage ranging from 85V to 305V AC and also supports DC inputs up to 430V DC, making it versatile for various power environments. It boasts a low no-load power consumption of under 0.075W and achieves an efficiency rating of up to 80% depending on operating conditions.
Safety is paramount, with the unit meeting international certifications such as UL 62368-1, TUV, and compliance with IEC and EN standards. It includes built-in protection features for overvoltage, overload, and short circuit conditions, enhancing its durability and operational safety.
Operating temperature ranges from -30°C to 85°C, suitable for demanding industrial environments. The IRM-03 series power supplies are Class II devices equipped with EMI and EMC filtering components, effectively minimizing electromagnetic interference and ensuring stable operation in industrial, laboratory, and commercial electronic applications.
Single 24V DC output at 3W power rating. Wide input voltage range from 85V AC to 305V AC; supports 430V DC input. Built-in protections include overload, short circuit, and overvoltage safeguards. Compact form factor with 37mm x 24mm x 15mm dimensions for PCB mounting.
High efficiency up to 80% with low no-load power consumption.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a single output of 24 volts DC with a power rating of 3 watts.
This power supply supports a wide input voltage range from 85V AC to 305V AC and up to 430V DC.
The dimensions are 37mm in length, 24mm in width, and 15mm in depth, making it suitable for PCB mounting.
The maximum operating temperature is 85°C, allowing it to function in demanding environments.
It includes built-in protections for overvoltage, overload, and short circuit conditions to enhance operational safety.
It has an efficiency rating of up to 80%, which helps reduce energy consumption and heat generation.
The minimum operating temperature is -30°C, making it suitable for various environmental conditions.
The gross weight of this model is 20 grams.
It meets important safety and EMC standards including UL 62368-1, TUV, and EN55022 Class B.
The output current is 125mA, which is suitable for various applications.
It is equipped with EMI and EMC filtering components to minimize electromagnetic interference, ensuring stable operation.
This model is designed for PCB mounting, facilitating easy integration into electronic assemblies.
