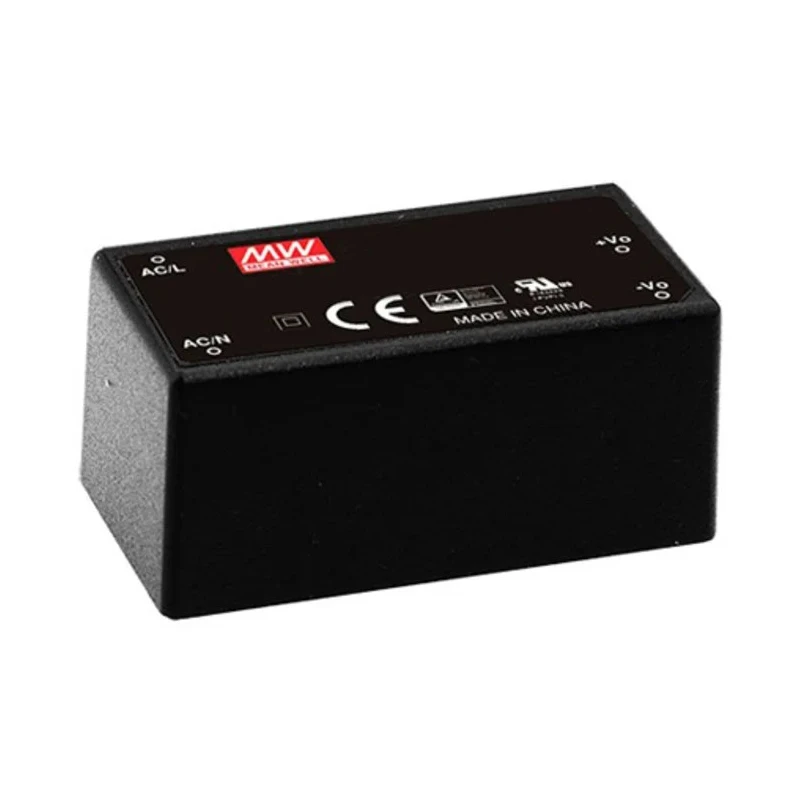

MEAN WELL IRM-05-24 Switching Power Supply 24V DC 5.5W Universal AC Input 85-264V AC IRM-05-24
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 5.5W |
| Efficiency | 77% |
| Length | 45.7mm |
| Model | IRM-05-24 |
| Depth | 21.5mm |
| Gross Weight | 40g |
| Width | 25.4mm |
| Mount Type | PCB |
| Safety Standards | UL60950-1, TUV EN60950-1 approved |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level (surge L-N: 1 KV), criteria A |
| Series | IRM |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 230mA |
| Minimum Input Voltage | 85V ac |
| EMC Emission | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
Key Features
- Compact encapsulated design for direct PCB mounting.
- Wide operating temperature range from -30°C to 70°C.
- High efficiency up to 77% with low no-load power consumption below 0.1W.
- Provides protection against overvoltage, overload, and short circuits.
- Meets international safety and EMC standards including UL62368-1 and TUV EN62368-1.
- Supports resistance to dust, moisture, and vibration up to 5G.
- Includes built-in EMI filtering for excellent electromagnetic compatibility.
- Universal input voltage supports operation worldwide.
Product Description
MEAN WELL IRM-05-24 is a 5 W single output encapsulated switching power supply offering a 24V DC output voltage and 5.5 W power rating. It operates with a universal AC input voltage range from 85 V AC to 264 V AC, making it highly versatile for various electronic applications. The compact design is optimized for PCB mounting and incorporates protective features such as overvoltage, overload, and short circuit protection to ensure safe and reliable operation.
The IRM-05 series meets high standards with approvals including UL 62368-1, TUV BS EN/EN 62368-1, IEC 62368-1, and EAC TP TC 004. It features high efficiency up to 77% and low no-load power consumption below 0.1 W, complying with global energy regulations. Designed for industrial and commercial environments, this power supply offers resistance to vibration up to 5G, dust, and moisture while maintaining effective heat dissipation cooled by free-air convection.
Key applications for the IRM-05-24 include handheld electronic devices, factory automation equipment, mechanical machinery, and various industrial electrical systems. The device is a Class II design which enhances installation safety without the need for a safety ground. It features a single output current of 230 mA with dimensions optimized for space-saving PCB integration.
Compact encapsulated form factor enabling direct PCB soldering. Universal input voltage range from 85 to 264 V AC supports global use. Protection circuitry for overvoltage, overload, and short circuit conditions. High efficiency rating of up to 77% reduces energy loss.
Meets multiple international safety and EMC standards ensuring compliance. Anti-vibration hardened design withstanding up to 5G forces. Low no-load power consumption less than 0.1 W for energy savings. Class II insulation design enhancing installation safety.
Operating temperature range from -30°C to 70°C supports harsh environments. Ideal for industrial automation, handheld electronics, and mechanical equipment power needs. Explore the MEAN WELL IRM-05 series on EnvMart for a reliable power supply solution in your electronic and industrial projects.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IRM-05-24 provides a 24V DC output voltage with a power rating of 5.5W.
It operates with a universal AC input voltage range from 85V AC to 264V AC.
The dimensions of this model are 45.7mm in length, 25.4mm in width, and 21.5mm in depth.
The IRM-05-24 has an efficiency rating of up to 77%.
The gross weight of this power supply is 40g.
This model operates within a temperature range of -30°C to 70°C.
It includes protection against overvoltage, overload, and short circuits.
It meets international safety and EMC standards including UL 62368-1 and TUV EN 62368-1.
The output current for this power supply is 230mA.
This model is designed for PCB mounting.
It is designed for industrial and commercial environments, with resistance to dust, moisture, and vibration up to 5G.
It includes built-in EMI filtering for excellent electromagnetic compatibility and complies with various EMC standards.
