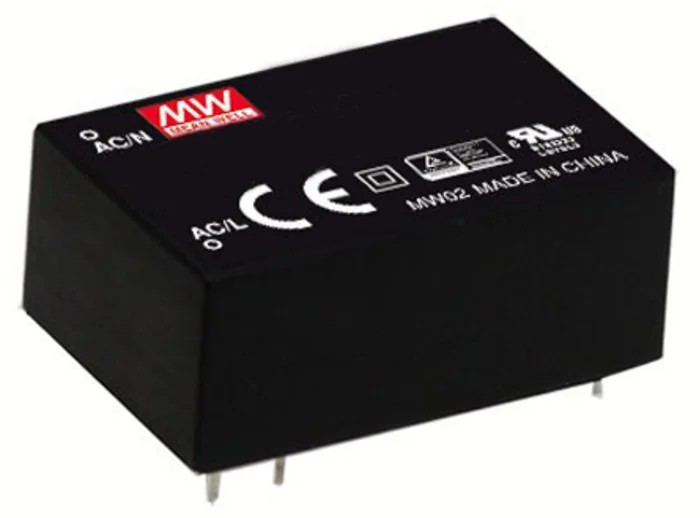

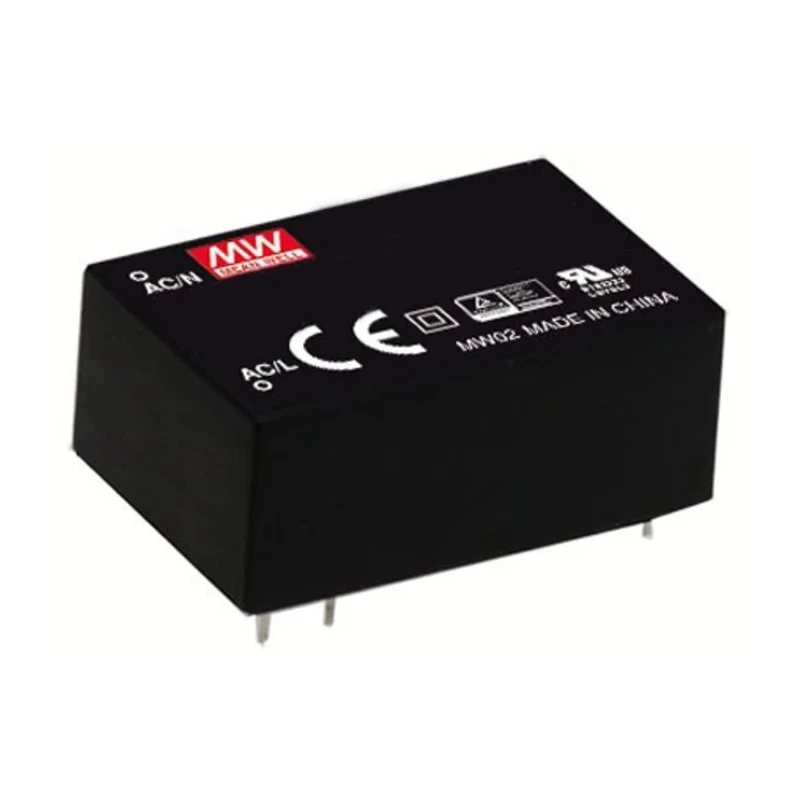

MEAN WELL IRM-01-24 Switching Power Supply 24V DC 1W 430V DC 305V AC PCB Mount IRM-01-24

MEAN WELL IRM-01-24 switching power supply offers a compact, highly reliable 1 W output with 24V DC voltage output and a wide input voltage range from 85V AC to 305V AC, extending up to 430V DC maximum input voltage. This model has been engineered for PCB mounting with a phenolic case fully potted in silicone to provide excellent vibration resistance up to 5G and enhanced protection against dust and moisture. The encapsulated design ensures excellent heat dissipation and system stability.

Featuring high efficiency up to 77%, the IRM-01-24 model meets worldwide regulations for power consumption and electromagnetic compatibility. Low no-load power consumption below 0.075 W contributes to energy savings. Multiple internal protections such as overvoltage, overload, and short circuit safeguard operational integrity, making this power supply suitable for sensitive and industrial-grade applications.

This switching power supply is approved to safety standards UL 60950-1, TUV EN 60950-1, and complies with EMC emission regulations EN55022 Class B and immunity standards EN61000-4 series. Class II isolation ensures added safety, and the unit is cooled by free air convection, so no additional cooling is required.

Typical use cases for the IRM-01-24 include handheld electronic devices, factory automation equipment, mechanical and industrial electrical instruments requiring a stable and efficient power source. The PCB mount design allows easy installation on custom printed circuit boards for versatile industrial implementations.

Compact encapsulated AC-DC supply with 1 W output power. Phenolic case and silicone potting ensure durability and vibration resistance. Universal wide AC input range 85 - 305 V AC and DC input up to 430 V DC. High efficiency with low standby power consumption below 0.075 W.

Built-in EMI filtering and compliance with international EMC standards. Multiple protection features including overvoltage, overload, and short circuit. Wide operating temperature of -30°C to +85°C suitable for harsh environments.

Suitable for industrial, laboratory, and manufacturing power supply needs. Explore more Switching Power Supplies and reliable power solutions in the Electronics & Electricals section at EnvMart for your industrial and commercial requirements.
