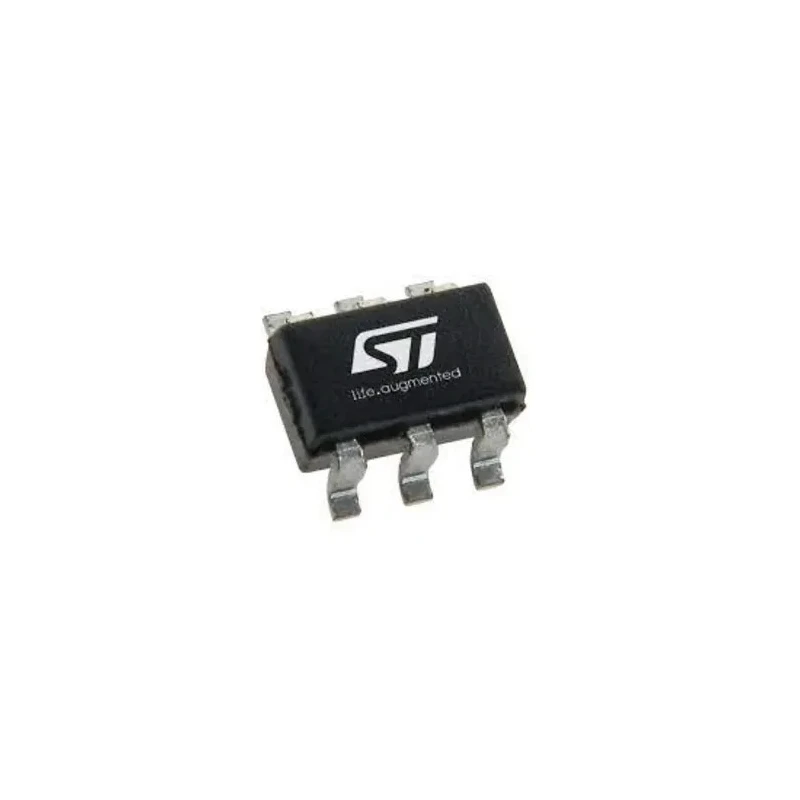

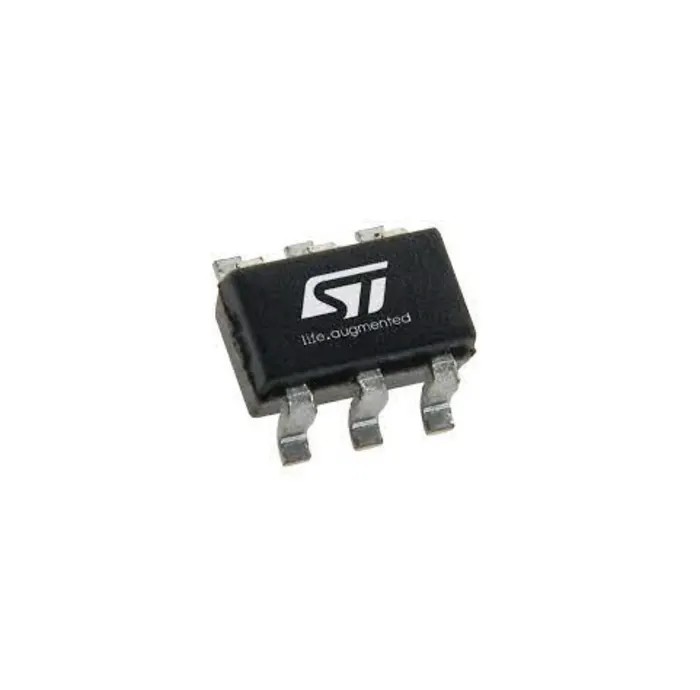

STMicroelectronics Current Sensing Amplifier Single Supply 2.7V to 26V 6-Pin SC-70-6 TSC215IYCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.4mm |
| Length | 1.8mm |
| Model | TSC215IYCT |
| Mount Type | Surface |
| Series | TSC21x |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70-6 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | Automotive grade, RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 115μA |
| GBP - Gain Bandwidth Product | 60kHz |
| CMRR - Common Mode Rejection Ratio | 105dB |
Key Features
- Features high precision zero-drift architecture for accurate current sensing.
- Offers wide common mode voltage range from -0.3V to +26V.
- Incorporates a gain bandwidth product of 60 kHz for responsive signal amplification.
- Includes a single channel with a common mode rejection ratio of 105 dB.
- Compact SC-70-6 package with 6 pins suitable for surface mount technology.
- Low supply current consumption of 115 μA for energy-efficient operation.
- Operates reliably within temperature range from -40°C to 125°C.
- Complies with automotive grade standards and RoHS for quality and environmental safety.
Product Description
The STMicroelectronics TSC215IYCT is a precision current sensing amplifier designed for applications requiring accurate measurement of current via a shunt resistor. It operates with a single power supply voltage ranging from 2.7V to 26V and supports a wide common mode voltage range from -0.3V to +26V, making it suitable for various automotive and industrial environments.
This zero-drift amplifier architecture ensures minimal offset and gain error, with gain error limited to ±1%, offset drift up to 0.1 μV/°C, and gain drift of 20 ppm/°C maximum, delivering excellent accuracy and stability over temperature variations.
Packaged in a compact SC-70-6 surface mount package with six pins, the TSC215IYCT ensures space-saving on PCB designs. It consumes low supply current of approximately 115 μA, supporting power-sensitive electronic system designs.
Operating temperatures range from -40°C to 125°C, allowing reliable performance in harsh environmental conditions typical in automotive and industrial applications. The device complies with automotive grade quality and RoHS standards, confirming its suitability for regulated markets.
High precision zero-drift current sensing amplifier. Wide common mode voltage from -0.3 to 26 V. Single power supply operation from 2.7 V to 26 V. Low quiescent current at 115 μA. Compact SC-70-6 surface mount package with 6 pins.
Operating temperature from -40°C to 125°C. Gain bandwidth product of 60 kHz for fast response. Compliance with automotive-grade and RoHS standards. This component is ideal for current measurement in automotive, industrial, and electronic equipment applications requiring precise Current Sensing Amplifiers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a single power supply voltage ranging from 2.7V to 26V.
It supports a wide common mode voltage range from -0.3V to +26V.
The gain bandwidth product for this unit is 60 kHz, allowing for responsive signal amplification.
It has a low supply current consumption of approximately 115 μA, making it energy-efficient.
This amplifier operates reliably within a temperature range from -40°C to 125°C.
It features a single channel for current sensing applications.
The common mode rejection ratio is 105 dB, providing excellent noise rejection.
The dimensions are 1.8mm in length and 1.4mm in height, suitable for surface mount technology.
It complies with automotive grade standards and RoHS for quality and environmental safety.
This model is designed for surface mounting, which is ideal for compact PCB designs.
The offset drift is limited to 0.1 μV/°C, ensuring minimal error over temperature variations.
It is part of the TSC21x series of current sensing amplifiers.
