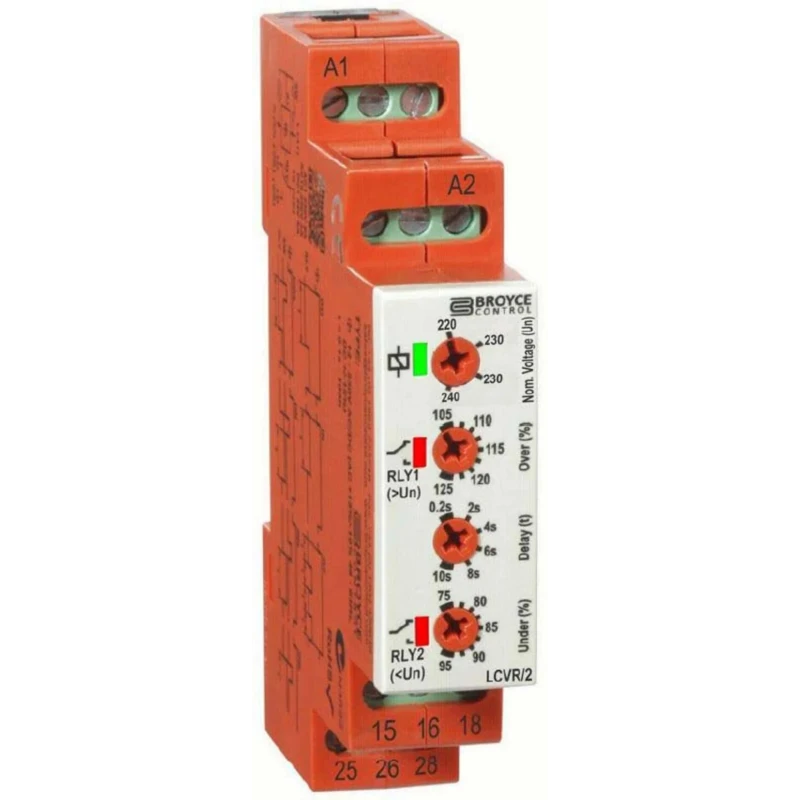

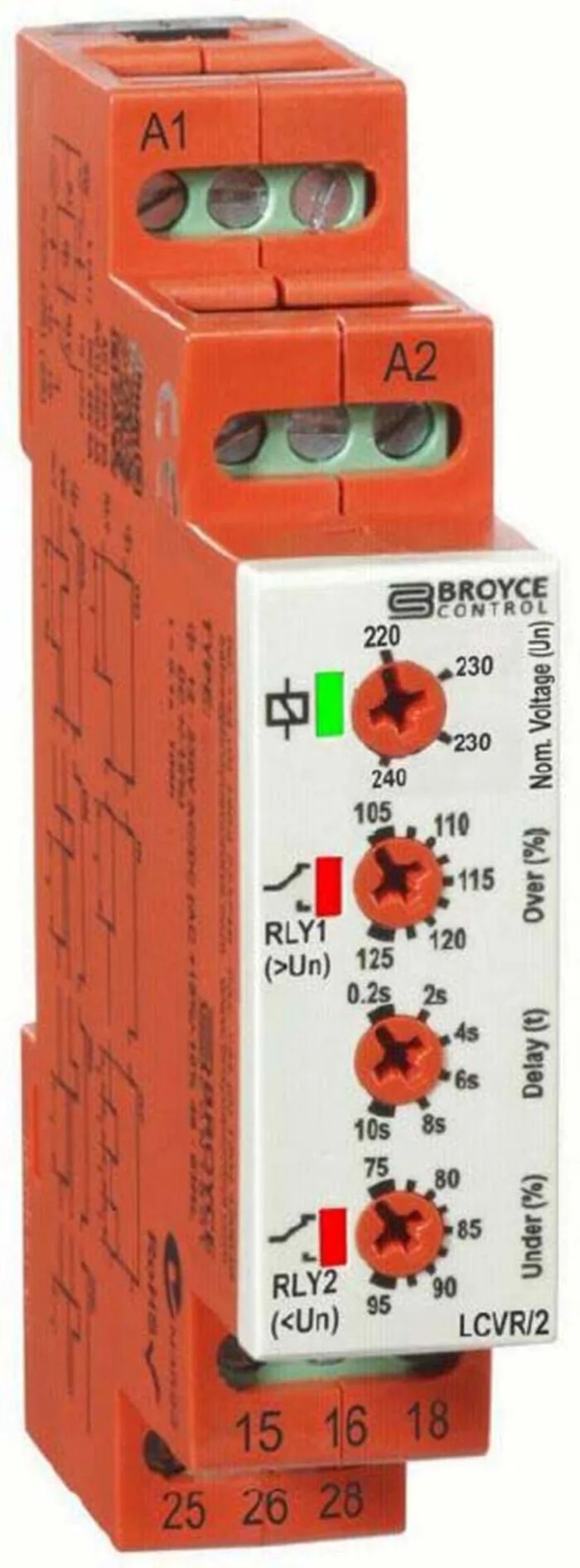

Broyce Control Monitoring Relay, 1 Phase, SPDT Contact Configuration, DIN Rail Mount, 230V AC LCVR/2 230V

Broyce Control LCVR/2 230V Monitoring Relay is a high-precision, microprocessor-based device engineered for monitoring single-phase electrical voltage levels. It features a space-saving DIN rail mount with a 17.5 mm wide housing, ideal for compact electrical panels and control enclosures.

This relay accurately measures true RMS voltage and supports selectable nominal voltages to suit the most common single-phase supply voltages. It continuously monitors supply voltage, detecting under-voltage and over-voltage conditions with independently adjustable trip levels and time delays, providing flexible and reliable system protection.

The LCVR/2 230V model is equipped with two SPDT relay outputs rated for 5A contact current, enabling independent activation for under-voltage and over-voltage detection alerts. The device's status indicators include a green LED for supply presence and a red LED for relay activation, facilitating easy visual monitoring.

Manufactured with flame retardant materials certified to UL94 VO standard, this monitoring relay offers enhanced safety during operation. It is rated for an electrical life of 150,000 operations or more, supporting long-term durability in demanding industrial environments.

The relay is designed for reliable operation in ambient temperatures ranging from -20 to +60°C, making it suitable for diverse industrial and commercial applications such as electrical automation, HVAC systems, manufacturing process controls, and condition monitoring systems.

Compact 17.5 mm DIN rail mounted housing for efficient panel integration. Microprocessor based with true RMS voltage monitoring for precise performance. Selectable nominal voltage settings tailored to single-phase supplies.

Adjustable under-voltage and over-voltage trip points with time delay. Two independent SPDT relay outputs rated 5A for versatile control functions. Clear LED indications for supply and relay status facilitate troubleshooting.

Constructed from UL94 VO flame retardant material for enhanced safety. Electrical life rated for at least 150,000 operations ensures reliability. Operates in a temperature range of -20°C to +60°C for varied environments.

Applications include industrial automation, HVAC, manufacturing, and system monitoring.

This high-quality Monitoring Relay from Broyce Control provides reliable voltage supervision with detailed adjustability for integration into industrial electrical systems. Its robust design and advanced features ensure precise protection and easy status monitoring for electrical phase applications. Explore EnvMart's Electronics & Electricals category for more monitoring and control devices tailored for professional use.
