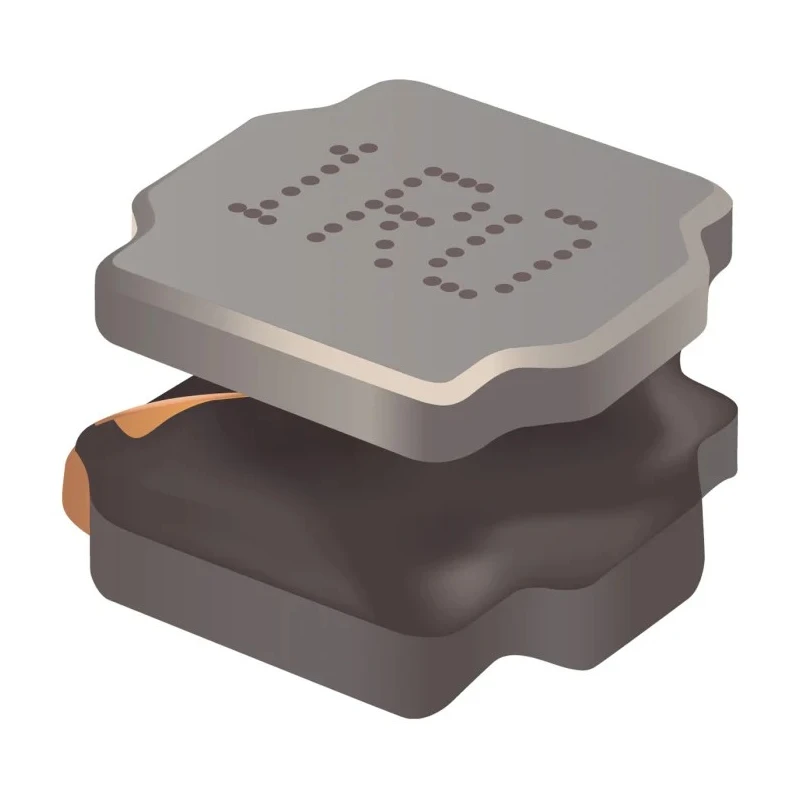

Bourns Shielded Wirewound Surface Mount Inductor with Ferrite Core 220 μH Semi Shielded ±20 % 600 mA Idc SRN6045TA

Bourns SRN6045TA Shielded Wirewound Surface Mount Inductor is engineered for high-quality power inductance needs featuring a ferrite core with semi shielded wirewound construction. The inductor provides an inductance of 220 μH with a tolerance of ±20%, supporting a maximum DC current of 600 mA and a DC resistance of 900 mΩ. Its compact dimensions of 6mm length, 6mm depth, and 4.2mm height make it suitable for dense PCB layouts requiring surface mount components.

Designed and approved for automotive applications in compliance with AEC-Q200 standards, this inductor is well suited for automotive systems including driver assistance, information systems, lighting, and entertainment modules. The operating temperature range from -55°C to 125°C ensures durability under extreme environments. Its semi magnetically shielded design helps reduce electromagnetic interference, enhancing circuit stability.

This inductor features a maximum self resonant frequency of 5 MHz and a minimum quality factor of 15, indicating effective performance across a range of frequencies. The RoHS compliance ensures environmental safety adhering to current electronic component standards. Its moulded construction provides mechanical strength for demanding industrial, automotive, and telecommunications applications.

Bourns SRN6045TA is ideal for power supplies, DC-DC converters, televisions, and various digital video systems. The device facilitates noise reduction and improves power efficiency in surface mount designs. The product's semi shielded core and compact size make it a versatile choice for engineers seeking dependable inductors in demanding electronic circuits.

Max DC current rating of 600 mA suitable for moderate current circuits. Compact 6mm x 6mm x 4.2mm dimensions ideal for surface mount PCB assembly. Reliable semi magnetic shielding reduces interference and noise emissions.

Operates efficiently in temperatures ranging from -55°C up to 125°C. Meets automotive standard AEC-Q200 ensuring high reliability in vehicle systems. Low DC resistance of 900 mΩ minimizes power losses during operation. Maximum self resonant frequency up to 5 MHz for versatile frequency use.

Minimum quality factor of 15 ensures stable inductance performance.

This Bourns surface mount inductor belongs to the SRN6045TA series, which spans inductances from 1 μH up to 220 μH and current ratings up to 8A, making it flexible for multiple applications.
