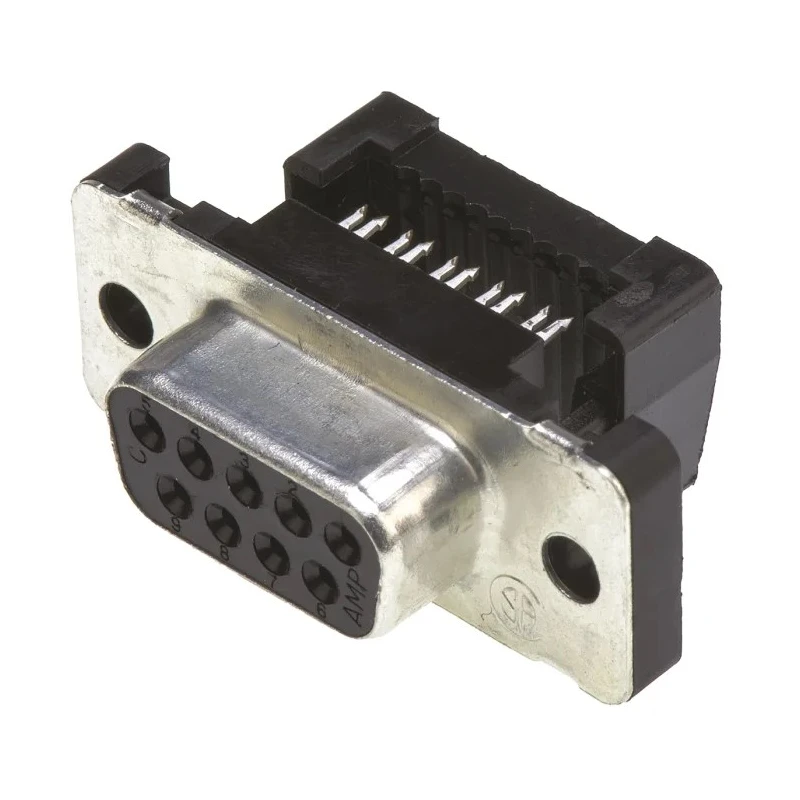

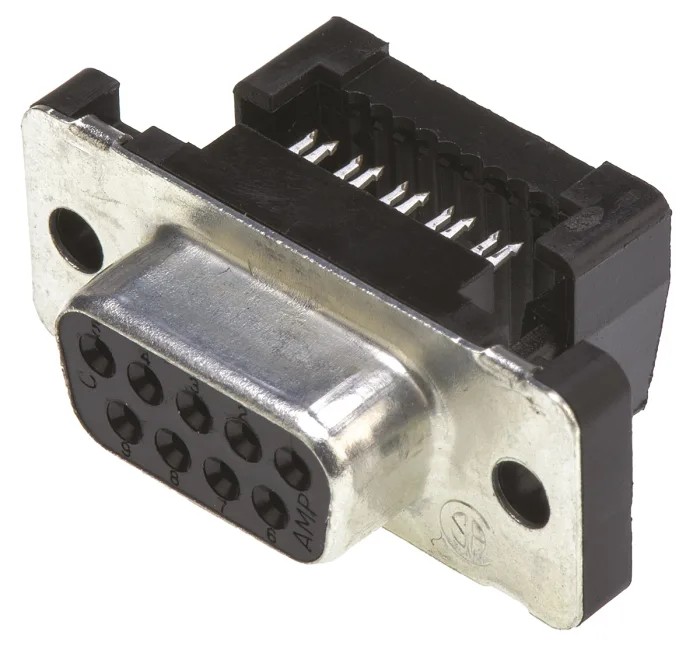

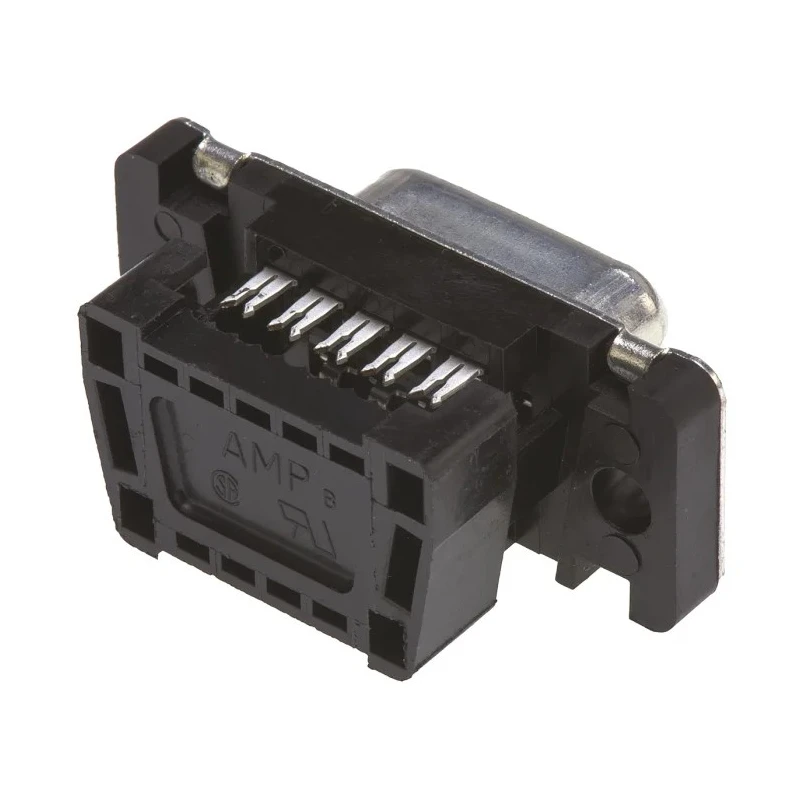

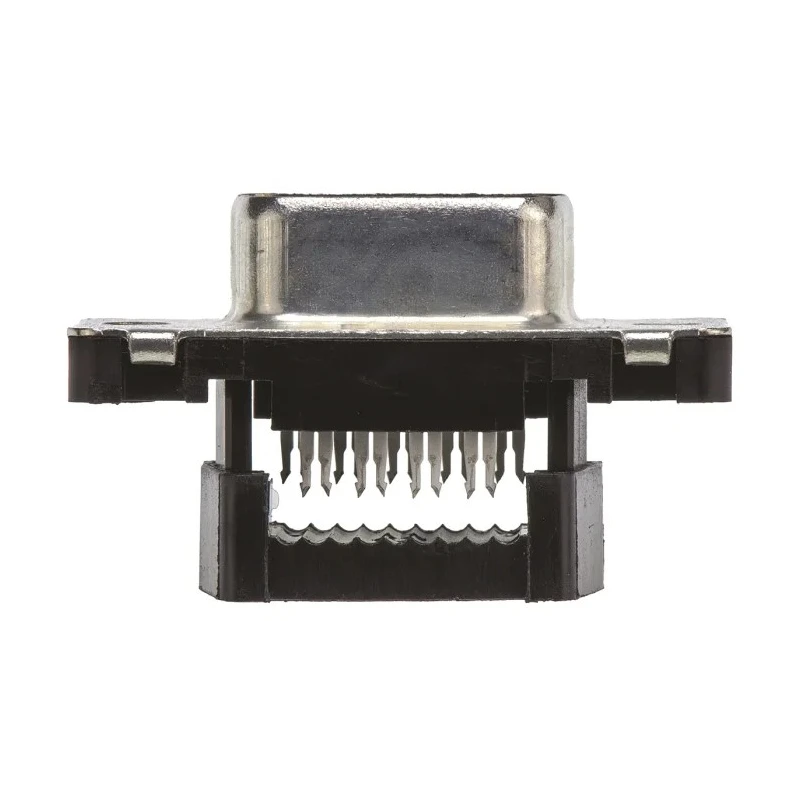

TE Connectivity Amplimite HDF-20 9 Way Right Angle 2.77 mm Pitch Cable D-Sub Connector Female 1658612-4

TE Connectivity 1658612-4 Amplimite HDF-20 9 Way Right Angle 2.77 mm Pitch Cable D-Sub Connector Female is engineered for robust and reliable cable connection needs in electronic components and power connector assemblies. This low-profile IDC metal shell D-Sub connector is designed to accept flat ribbon cables with 28 AWG and 26 AWG solid and stranded round conductors arranged on 1.27 mm centers.

The connector features a steel housing providing enhanced mechanical protection, with phosphor bronze contacts plated with gold over nickel to ensure excellent conductivity and corrosion resistance. Its right angle orientation facilitates compact PCB and cable routing configurations.

Rated at 1.25A current and 250V voltage, it supports demanding power and signal transmission requirements while withstanding temperatures ranging from -55°C to 105°C. The IDC termination type simplifies assembly with flat ribbon cables, making it suitable for industrial, commercial, and electronic system manufacturing environments.

This product belongs to the Amplimite HDF-20 series noted for low profile metal shells and is compatible with HD-20 Board Mount, HDP, and HDE (sizes 1-4) d-sub connectors. Accessory components such as strain relief options and screwlocks are available for enhanced mechanical stability.

Features right angle female connector with 9 contact points. Steel housing with black thermoplastic pre-assembled housing and tin-plated steel front shell. Phosphor bronze contacts with duplex plating of gold over nickel for durability and conductivity.

Suitable for 28 and 26 AWG flat ribbon cable with a pitch of 2.77 mm. Durable operation across -55°C to 105°C temperature range. Voltage rating up to 250V and current rating up to 1.25A. Part of Amplimite HDF-20 low profile IDC metal shell D-Sub Connector series.

Applications include electronic component connectors, power connector assemblies, and cable interconnections.

This connector is widely used in industrial electronics, power distribution, manufacturing systems, and telecommunications due to its reliable electrical and mechanical properties. Its robust construction and precise contact pitch allow for secure, long-lasting connections in demanding environments.
