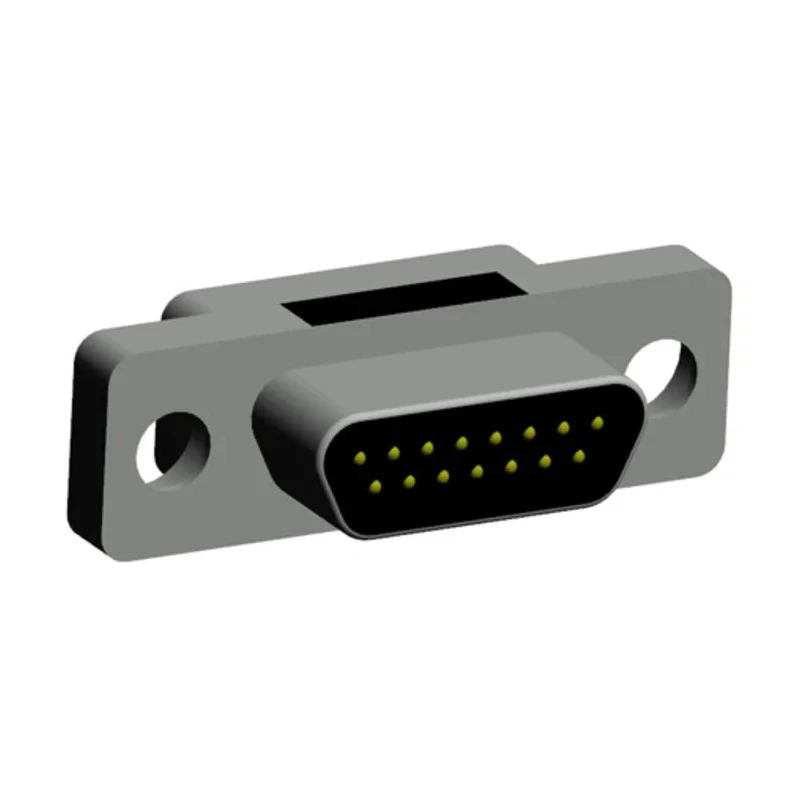

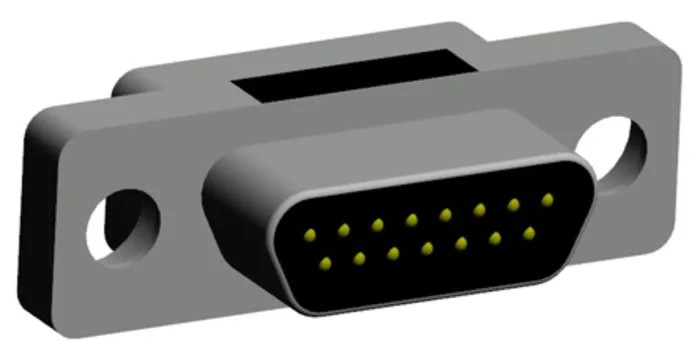

Norcomp 380 Micro-D 15 Way Straight 1.27 mm Pitch Through Hole D-Sub Connector Male 380-015-113L001
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Norcomp |
| Orientation | Straight |
| Current | 1A |
| Model | 380-015-113L001 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Beryllium Copper Alloy |
| Series | 380 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 1.27mm |
| Contact Plating | Tin, Gold |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Micro-D |
Key Features
- The compact design is one-third the size of a standard D-Sub connector.
- Constructed with polybutylene terephthalate housing for durability and high reliability.
- Features beryllium copper alloy contacts plated with tin and gold for optimal conductivity.
- Operates reliably in temperatures ranging from -55°C to 85°C.
- Rated for a current of 1 ampere and voltage of 500 volts.
- Incorporates solder termination and a male connector gender.
- Designed with a metal-to-metal interface to improve grounding and shielding performance.
- Suitable for use in commercial applications requiring robust I/O connectors with limited space.
Product Description
Norcomp 380-015-113L001 is a Micro-D series D-Sub Connector featuring 15 contacts with a 1.27 mm pitch. Designed as a compact and rugged interface, this straight male connector mounts through hole and operates at 500 volts and 1 amp rating. The connector housing is made of polybutylene terephthalate providing enhanced durability under challenging environmental conditions, tolerating temperatures from -55°C to 85°C.
This D-Sub connector uses beryllium copper alloy contacts with tin and gold plating, ensuring excellent electrical conductivity and corrosion resistance. Its metal-to-metal interface supports improved grounding and electromagnetic shielding, vital for industrial and commercial electronic equipment.
Ideal for scenarios where space saving is a priority, this micro-miniature connector only measures one-third the size of standard D-Sub connectors. It provides a secure mechanical connection and is suitable for intermate with most commercial competitive products. Its solder termination offers reliable electrical joins for PCB assembly.
The Norcomp 380 series is tailored for applications including industrial controls, instrumentation, telecommunications, and embedded systems that demand compact connectors without compromising performance.
The connector is rated for 1 amp current and up to 500 volts. Operating temperature range is from -55°C to 85°C for varied industrial environments. Housing material ensures mechanical robustness and reliability. Contact plating with tin and gold enhances conductivity and durability.
Mount type is through hole with straight orientation suitable for PCB mounting. Micro-D style provides a smaller footprint compared to standard D-Sub Connectors. Metal-to-metal interface improves shielding and grounding efficiency.
Male connector gender and solder termination type offer compatibility and secure connection.
This connector is manufactured in Taiwan, Province Of China, adhering to robust manufacturing standards and quality control protocols. It is an optimal choice for engineers designing compact, high-reliability electronic interconnection solutions in commercial and industrial sectors.
Explore EnvMart's extensive range of connectors for comprehensive solutions to your electronic interconnect requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 500 volts.
It is rated for a current of 1 ampere.
The operating temperature range is from -55°C to 85°C.
The housing is made of polybutylene terephthalate, and the contacts are made from beryllium copper alloy with tin and gold plating.
This connector features 15 contacts.
It incorporates a solder termination type.
The pitch of the contacts is 1.27 mm.
It has a straight orientation suitable for through hole mounting.
It is manufactured in Taiwan, Province Of China.
It is suitable for industrial controls, instrumentation, telecommunications, and embedded systems.
The metal-to-metal interface improves grounding and electromagnetic shielding performance.
Yes, it is designed to intermate with most commercial competitive products.
