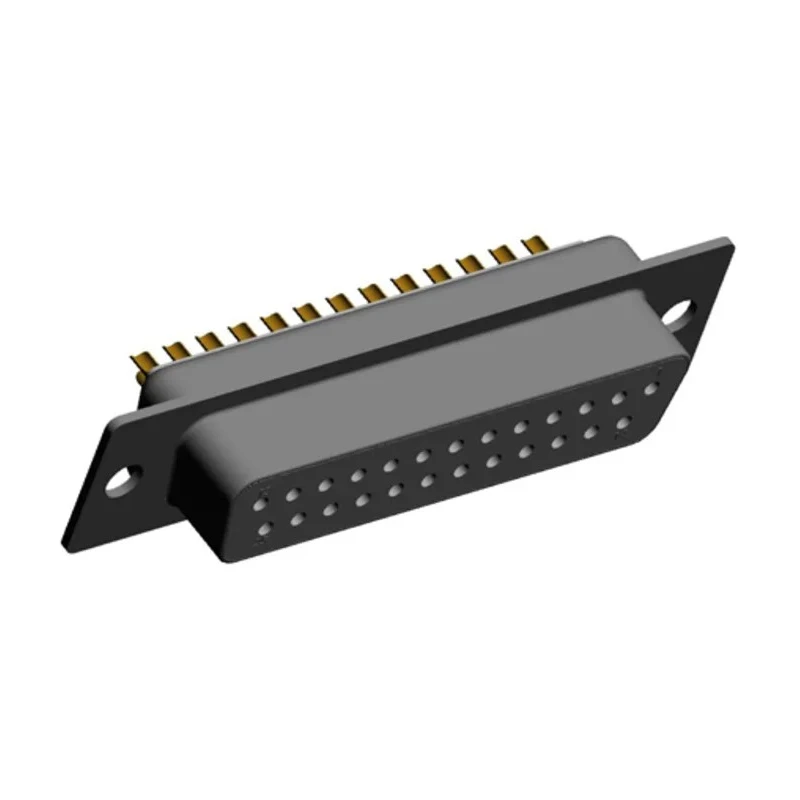

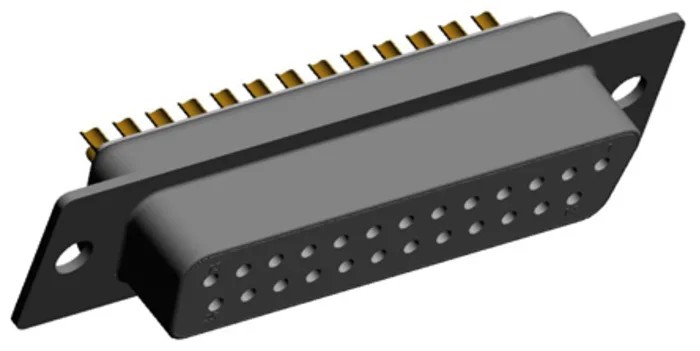

Norcomp SEAL-D 25 Way Straight 2.769 mm Pitch Cable D-Sub Connector Female 500V 5A 772-E25-203R001
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 500V |
| Brand | Norcomp |
| Orientation | Straight |
| Current | 5A |
| Model | 772-E25-203R001 |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 772, SEAL-D |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -50°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- Suitable for cable mounting with a straight orientation.
- Features 25 contacts rated for 5A current and 500V voltage.
- Constructed with gold plated brass contacts for enhanced conductivity.
- Steel housing provides robust shielding and durability.
- Operates reliably within a temperature range of -50°C to 100°C.
- Solder termination type ensures stable and secure connections.
- Complies with IEC-529-IP67 sealing standards for protection against dust and moisture.
- Ideal for industrial, medical, and outdoor applications requiring durable connectors.
Product Description
Norcomp 772-E25-203R001 SEAL-D 25 Way Straight Cable D-Sub Connector Female is designed for demanding environments requiring sealed protection and reliable electrical performance. Featuring a pitch of 2.769 mm and 25 precision contacts, this connector accommodates currents up to 5A and voltages up to 500V.
The connector has a sturdy steel housing that is nickel plated to enhance shielding and grounding capabilities, complemented by gold plated brass contacts to ensure superior conductivity and corrosion resistance. Its solder termination type provides a secure and permanent connection for cable assemblies.
With an operational temperature range from -50°C to 100°C, this SEAL-D series connector meets IP67 ingress protection standards as per IEC-529, making it suitable for outdoor, industrial, and medical equipment exposed to harsh conditions including temporary submersion and washdown environments.
These connectors maintain a standard D-Sub physical footprint, enabling seamless upgrades for IP66/67 sealing without requiring redesign of enclosures or PCBs. Applications include handheld computers, scanners, remote sensors, data loggers, transmitters, emergency beacons, gas and electric metering systems, and portable electric generation equipment.
Suitable for cable mounting with a straight orientation. Contains 25 gold plated brass contacts rated at 5A current and 500V voltage. Steel nickel plated housing for improved shielding and grounding performance. Sealing to IEC-529-IP67 requirements for protection against dust and moisture.
Operating temperature range from -50°C up to 100°C for broad environmental usability. Solder termination type secures reliable electrical connections. Maintains compatibility with standard D-Sub Connector footprints. Designed for robust industrial, medical, and outdoor applications.
Made in the United States ensuring high manufacturing quality.
Explore the Norcomp SEAL-D series connectors for reliable, sealed D-Sub solutions meeting rigorous industrial standards. Browse more connectors and electronic components in the Power Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 5A and a voltage of 500V.
It operates reliably within a temperature range of -50°C to 100°C.
This model features a solder termination type, ensuring stable and secure connections.
The contacts are arranged with a pitch of 2.769 mm.
This connector has a total of 25 contacts.
It features gold plated brass contacts and a steel housing that is nickel plated for enhanced shielding.
It complies with IEC-529-IP67 sealing standards, providing protection against dust and moisture.
It is ideal for industrial, medical, and outdoor applications, including handheld computers and remote sensors.
The connector is designed for cable mounting with a straight orientation.
Yes, it maintains compatibility with standard D-Sub connector footprints, allowing for seamless upgrades.
It is made in the United States, ensuring high manufacturing quality.
The connector has a female contact gender.
