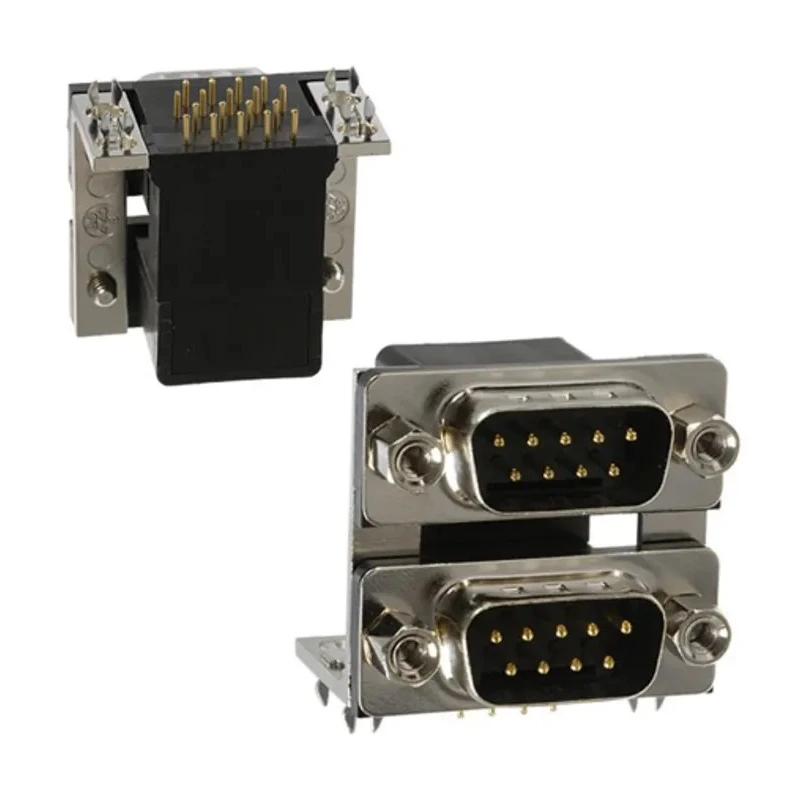

Norcomp Right Angle 189 Series 9 2.769 mm Pitch PCB D-Sub Connector with 4 to 40 Insert 189-009-613R491
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 1kV |
| Brand | Norcomp |
| Orientation | Right Angle |
| Current | 5A |
| Model | 189-009-613R491 |
| Mount Type | PCB |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 189 |
| Mounting Hardware | 4 to 40 Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts A | 9 |
| D-Sub Shell Size A | DA-9 |
| Contact Gender A | Female |
| D-Sub Shell Size B | DB-9 |
| Contact Gender B | Male |
Key Features
- Features a right angle orientation for PCB mounting applications.
- Constructed with brass contacts plated in gold for superior conductivity.
- Shell made of nickel-plated steel to enhance shielding and durability.
- Designed to handle up to 5A current and withstand voltages up to 1kV.
- Operates reliably within temperature ranges from -55°C to 105°C.
- Equipped with boardlocks and 4 to 40 inserts for secure mounting.
- Includes dual-port stacking to maximize PCB space efficiency.
- High-temperature UL94V-0 thermoplastic insulator supporting 260°C process temperature.
Product Description
Norcomp 189-009-613R491 is a right angle PCB mount D-Sub connector from the 189 series, featuring a 9-contact arrangement and a precise 2.769 mm pitch. This connector offers dual-port stacked design intended to maximize available PCB space, making it ideal for applications where multiple I/O ports are required within constrained layouts.
The contacts are made from high-quality brass and plated with gold to ensure excellent electrical conductivity and corrosion resistance. The connector shell is constructed from nickel-plated steel which provides robust shielding, grounding, and mechanical strength. Additionally, ground indents improve grounding and retention capabilities.
This model operates effectively under a wide temperature range from -55°C up to 105°C, supported by a UL94V-0 rated thermoplastic insulator capable of withstanding 260°C processing temperatures. It is designed to carry currents up to 5 amps and voltages of 1 kilovolt, making it suitable for various electronic and industrial applications.
Mounting hardware includes boardlocks and offers options such as 4 to 40 flush inserts or hex standoffs for secure and reliable PCB retention. The right angle orientation of the connector facilitates neat and compact PCB configurations.
Right angle PCB mounting for space efficiency. Gold plated brass contacts for reliable connectivity. Nickel plated steel shell with ground indents for enhanced shielding and retention. UL94V-0 high temperature thermoplastic insulator rated for 260°C.
Supports electrical parameters up to 5A and 1kV voltage. Dual-port stacked design maximizes PCB utilization. Mounting options include boardlocks and 4 to 40 inserts. Wide operating temperature range from -55°C to 105°C. Ideal for electronic components and industrial control equipment.
This Norcomp D-Sub connector is a robust, cost-effective solution for high-density PCB connections in industrial, laboratory, telecommunications, and electronic manufacturing environments. Its compact design and durable materials make it an essential component in high-performance electrical assemblies.
Explore more D-Sub Connectors and similar components at EnvMart to find the right fit for your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed to handle a maximum current of 5A.
It can withstand voltages up to 1kV.
The pitch size for this D-Sub connector is 2.769 mm.
The contacts are made from brass and plated with gold, while the housing is constructed from nickel-plated steel.
It operates reliably within a temperature range from -55°C to 105°C.
It includes mounting hardware with 4 to 40 inserts for secure PCB retention.
This connector features a right angle orientation for PCB mounting applications.
This model has a total of 9 contacts.
It uses a solder termination type.
The D-Sub shell size classification for this model is DA-9 for the female side and DB-9 for the male side.
It is suitable for various electronic and industrial applications, particularly where high-density PCB connections are needed.
The Norcomp 189-009-613R491 is manufactured in Taiwan.
