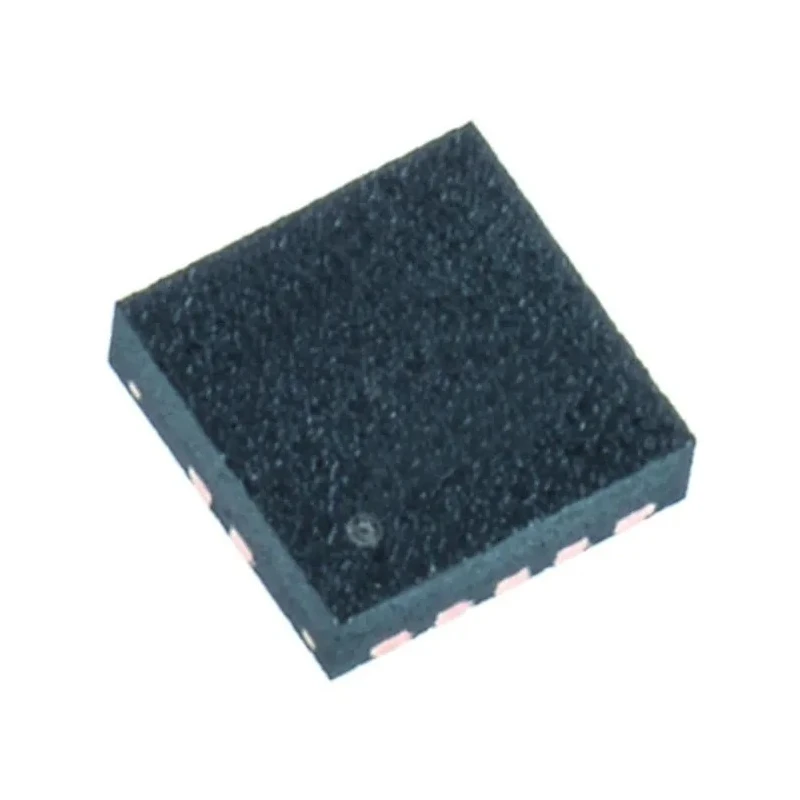

Texas Instruments 5-Channel DC-DC Switching Regulator, 1.2A, 1.5MHz, SON 10-Pin TPS63001DRCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 3mm |
| Model | TPS63001DRCT |
| Width | 3mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | TPS6300x |
| Output Current | 1.2A |
| Maximum Operating Temperature | 85°C |
| Package Type | SON |
| Load Regulation | 0.5 % |
| Minimum Operating Temperature | -40°C |
| Regulator Type | DC-DC |
| Switching Frequency | 1.5MHz |
| Number of outputs | 5 |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 50μA |
| Line Regulation | 0.5 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 1.8V |
| Pin Count | 10 |
Key Features
- Operates with input voltage range from 1.8 V to 5.5 V for versatile applications.
- Surface mount SON 10-Pin package measuring 3 mm x 3 mm with 900 μm height.
- Provides five fixed output channels with 1.2 A maximum output current.
- Features low quiescent current of 50 μA for energy-efficient performance.
- Supports automatic buck-boost operation ideal for battery-powered devices.
- Ensures stable voltage regulation with 0.5 % line and load regulation.
- Complies with RoHS standards for environmental safety.
- Suitable for operating temperatures ranging from -40 °C to 85 °C.
Product Description
Texas Instruments TPS63001DRCT is a state-of-the-art 5-Channel DC-DC switching regulator designed for efficient power management in compact electronic devices. It integrates an automatic buck-boost converter capable of seamless step-down and step-up voltage conversion, making it highly suitable for battery-operated applications.
With a compact SON 10-Pin surface-mount package measuring 3 mm by 3 mm and a profile height of 900 μm, this semiconductor device offers excellent integration on crowded circuit boards. Operating at a switching frequency of 1.5 MHz, it supports a maximum output current of 1.2 A across five outputs, providing stable and reliable power delivery.
Its low quiescent current of 50 μA contributes to energy efficiency, thereby extending battery life in portable devices. The regulator delivers excellent voltage precision with both line and load regulation maintained at 0.5 %, ensuring consistent performance under varying electrical loads. It supports a wide input voltage range from 1.8 V to 5.5 V, accommodating various battery chemistries and configurations.
The product complies with RoHS environmental standards and operates reliably within temperatures from -40 °C up to 85 °C, making it suitable for diverse industrial and consumer electronic environments.
Operates efficiently as an integrated buck-boost converter using a single inductor. Designed for battery powered applications including two-cell or three-cell alkaline, NiCd, NiMH, or single-cell lithium batteries. Enables improved production efficiency for handheld devices requiring space-constrained power solutions.
Meets stringent environmental compliance with RoHS certification. Compact footprint with surface mount technology facilitates high-density PCB designs. Integrated switching regulator technology optimizes energy use and thermal management.
Ideal for applications in cellular phones, portable communication equipment, and similar handheld electronics. For more high-quality power management ICs and related components, explore the Electronics & Electricals Power Management ICs category on EnvMart.
Explore more products in our Voltage Regulator category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with an input voltage range from 1.8 V to 5.5 V, making it versatile for various applications.
This model provides five fixed output channels with a maximum output current of 1.2 A.
The switching frequency of the TPS63001DRCT is 1.5 MHz.
The SON package measures 3 mm x 3 mm with a height of 900 μm.
It features a low quiescent current of 50 μA, contributing to energy-efficient performance.
The regulator ensures stable voltage regulation with both line and load regulation maintained at 0.5%.
It is suitable for operating temperatures ranging from -40 °C to 85 °C.
Yes, it complies with RoHS standards for environmental safety.
This model uses surface mount technology, facilitating high-density PCB designs.
It is ideal for battery-powered applications, including devices using two-cell or three-cell alkaline, NiCd, NiMH, or single-cell lithium batteries.
The output type of this regulator is fixed, providing stable voltage across its outputs.
The country of origin for this product is India.
