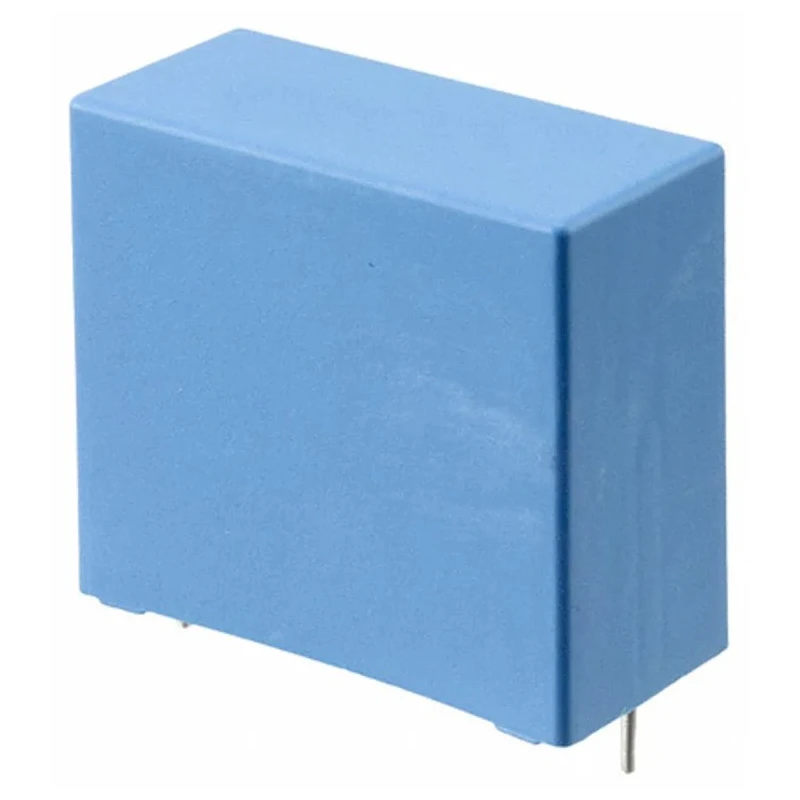

KEMET PHE450 Polypropylene Capacitor, ±5 % Tolerance, 22 nF, 3 kV DC, 180 V AC, Through Hole Radial Lead

KEMET PHE450 PHE450XD5220JD20R06L2 polypropylene capacitor is a high-quality film capacitor designed for applications requiring precision and reliability. It features a capacitance of 22 nF with a tolerance of ±5 %, rated for a maximum DC voltage of 3 kV and an AC voltage of 180 V. This capacitor uses double metallised polypropylene film, providing exceptional pulse current capability and stability in demanding electronic circuits.

The capacitor is encapsulated in a self-extinguishing resin that meets UL 94 V-0 requirements, enhancing safety against electrical fires. Its radial lead configuration with a 22.5 mm pitch and 6 mm lead length facilitates through-hole mounting on printed circuit boards (PCBs). The component is RoHS compliant and is designed for operation in temperatures ranging from -55°C to 105°C, making it suitable for a wide range of industrial, commercial, and communication electronics applications.

With dimensions of 23 mm height, 26 mm length, and 13.5 mm width, this compact capacitor is ideal for snubber and pulse circuits, especially in switch mode power supplies and television deflection circuits where high current stress occurs. Its low dissipation factor of 0.0003 % ensures minimal energy loss, improving overall circuit efficiency.

Packaged on tape and reel, it supports automated assembly lines for efficient production. The PHE450 series polypropylene capacitors by KEMET offer reliability, safety, and superior electrical characteristics essential for manufacturing, industrial control systems, and consumer electronic devices.

Constructed with double metallised polypropylene film for high pulse current tolerance. Encapsulated in self-extinguishing material complying with UL 94 V-0 standards. Operating temperature range from -55°C to 105°C ensures durability in harsh environments.

Lead pitch of 22.5 mm and lead length of 6 mm with a radial terminal type for easy PCB mounting. Rated for 3 kV DC voltage and 180 V AC voltage applications including snubber and pulse circuits. Compliant with RoHS ensuring environmentally safe usage.

Dimensions are compact with 23 mm height, 26 mm length, and 13.5 mm width. Extremely low dissipation factor of 0.0003% for high efficiency performance. Suitable for use in switch mode power supplies and television deflection circuits.

Packaged on tape & reel for automated assembly processes. Explore the KEMET category on EnvMart to find advanced Film Capacitors and additional electronic components that meet industrial and commercial application requirements.
