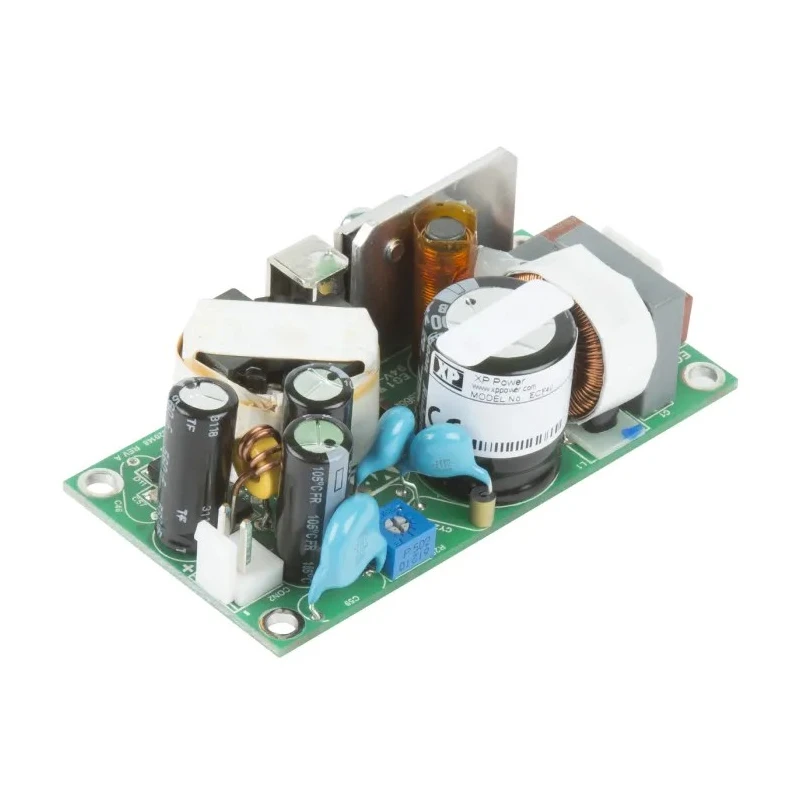

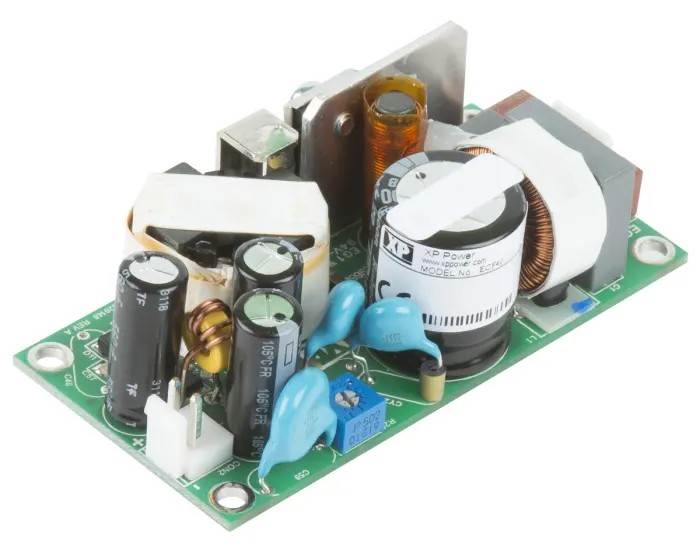

XP Power Switching Power Supply Chassis Mount 18V DC 40W 2.23A 80-264V AC Input ECF40US18
Specifications
| Country of Origin | India |
|---|---|
| Brand | XP Power |
| Power | 40W |
| Efficiency | 93% |
| Length | 76.2mm |
| Model | ECF40US18 |
| Depth | 28.14mm |
| Gross Weight | 69g |
| Width | 38.1mm |
| Mount Type | Chassis |
| Series | ECF |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Voltage | 18V dc |
| SMPS Output Current | 2.23A |
| Minimum Input Voltage | 80V ac |
Key Features
- Convection cooled power supply with a low profile of 1.1 inches.
- Wide input voltage range from 80V AC to 264V AC for global compatibility.
- High efficiency rating of 93 percent reduces energy consumption.
- Engineered for medical and ITE applications with two AC line fuses and low leakage currents.
- Compact footprint measuring 38.1mm width, 28.14mm depth, and 76.2mm length.
- Operates in harsh environments with temperature range from -40°C to 70°C.
- Designed for high power density in a minimal size.
- 3-year warranty ensures long-term reliability.
Product Description
XP Power ECF40US18 is a premium switching power supply designed for demanding industrial and medical use. This chassis mount power supply delivers a regulated 18V DC output at 2.23A from an AC input voltage range of 80V to 264V, supporting international applications.
The ECF40US18 features a compact and low profile design with a footprint of 1.5 by 3 inches and a height of just 1.1 inches, making it ideal for space-constrained applications. Constructed to operate efficiently with 93% energy conversion, it minimizes heat generation and reduces energy costs.
With a robust operating temperature range from -40°C to 70°C, this power supply ensures reliable performance in extreme environmental conditions. It is equipped with two AC line fuses and low leakage currents, meeting strict medical and ITE standards, thus suitable for sensitive healthcare equipment and information technology environments.
The high power density design allows delivering 40W in a convection cooled enclosure, eliminating the need for additional fans and reducing noise. This model belongs to XP Power’s established ECF40 series known for quality and compliance.
Convection cooled for silent operation. Medical and ITE standard approvals. Two AC line fuses for enhanced safety. Wide input voltage range reducing derating needs. Lightweight design weighing only 69 grams.
Typical industrial applications include medical instrumentation, telecommunications, and embedded control systems. XP Power's 3-year warranty underlines the durability and reliability designed into the ECF40US18 model.
Discover more high quality power supplies and electronic components at EnvMart to meet your industrial and commercial requirements.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output of 18V DC at a maximum current of 2.23A.
The input voltage range for the ECF40US18 is from 80V AC to 264V AC, making it suitable for global applications.
The ECF40US18 has an efficiency rating of 93%, which helps reduce energy consumption.
This power supply has a compact footprint measuring 76.2mm in length, 38.1mm in width, and 28.14mm in depth.
The ECF40US18 operates effectively in a temperature range from -40°C to 70°C.
This power supply is designed for chassis mounting.
It is equipped with two AC line fuses and has low leakage currents, meeting medical and ITE standards for safety.
This model weighs only 69 grams, contributing to its lightweight design.
The power supply has one output.
Typical applications include medical instrumentation, telecommunications, and embedded control systems.
The high power density allows it to deliver 40W in a convection cooled enclosure, minimizing heat generation and eliminating the need for fans.
This model comes with a 3-year warranty, ensuring long-term reliability.
