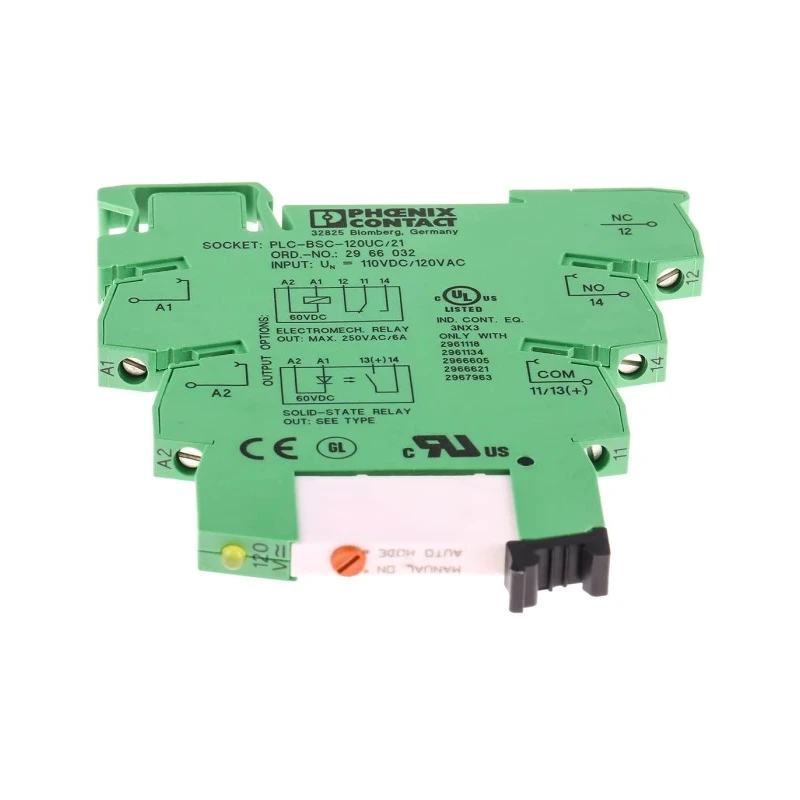

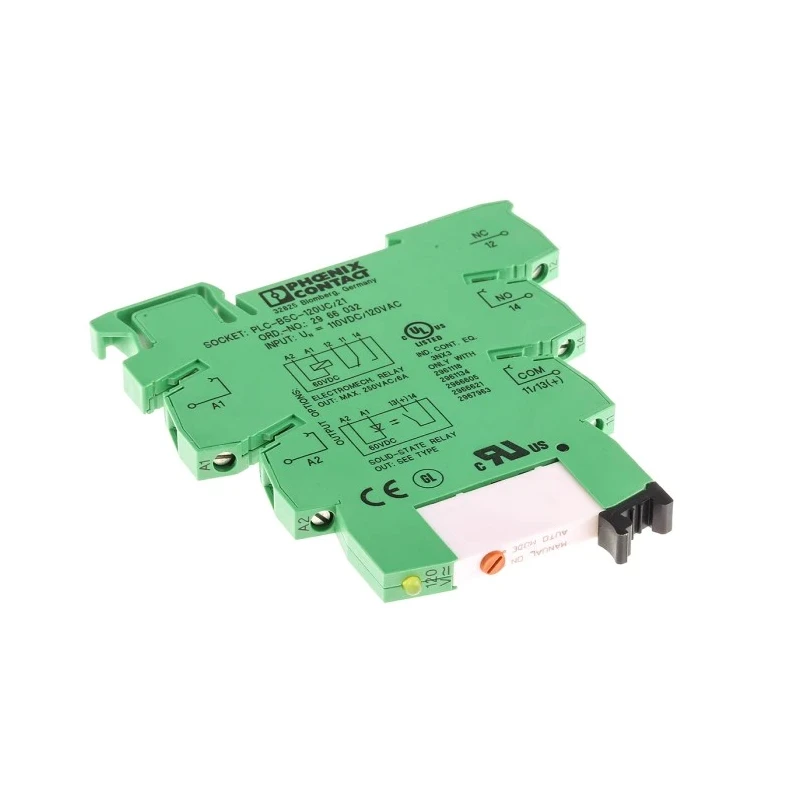

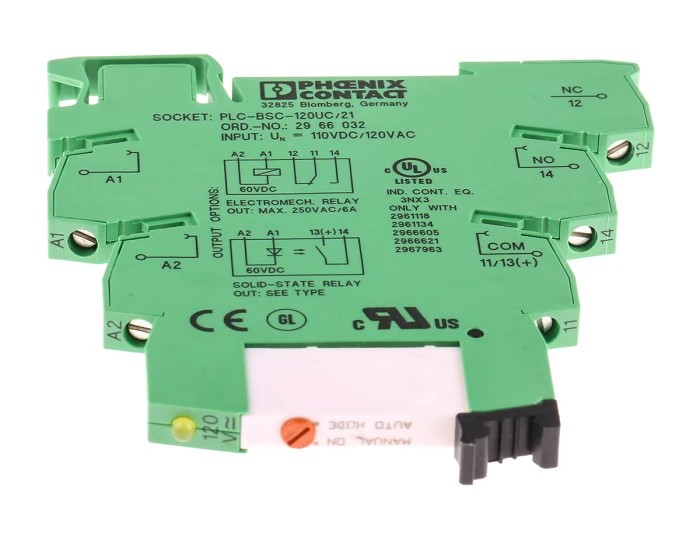

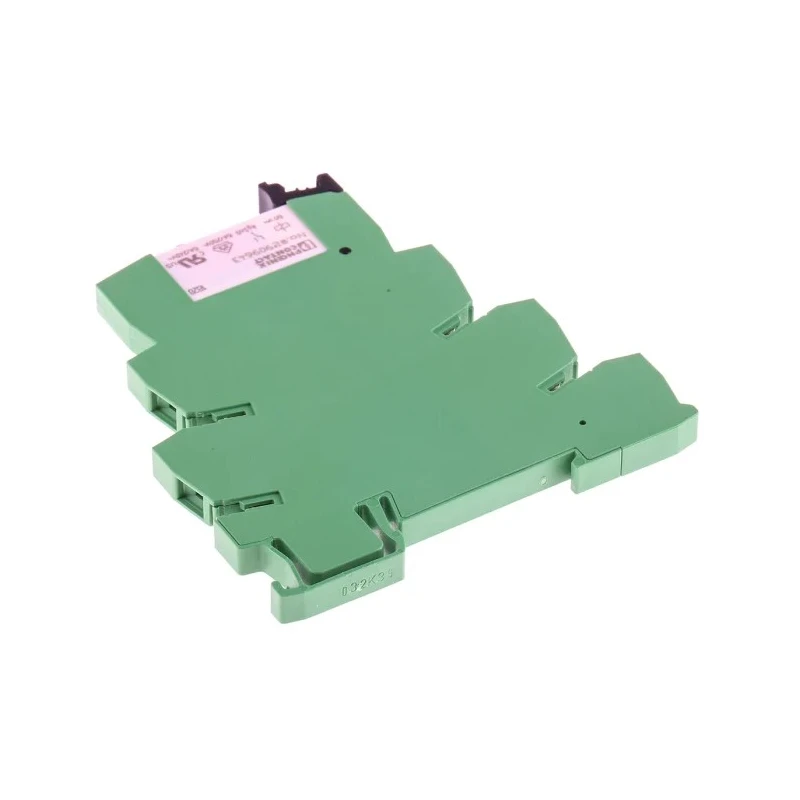

Phoenix Contact MS Series Interface Relay, DIN Rail Mount, 110V ac/dc Coil, SPDT Contact, 15.3mA Coil Current 2909651
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Height | 80mm |
| Length | 94mm |
| Model | 2909651 |
| Width | 6.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | PLC-RSC-120UC/21/MS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | IEC 60947-5-1, IEC 60664 |
| Coil Voltage | 110V ac/dc |
| Coil Current | 15.3mA |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
Key Features
- The relay module features a coil current of 15.3mA for energy-efficient operation.
- Contact configuration is Single Pole Double Throw (SPDT) supporting up to 6A switching current.
- Mount type is DIN rail, enabling easy installation on NS 35/7.5 rails.
- Equipped with screw terminal for secure wiring connections.
- Operates reliably within a temperature range of -40°C to 60°C with silver alloy contact material.
- Compact design with dimensions 94mm length, 80mm height, and 6.2mm width saves space on DIN rail.
- Conforms to IEC 60947-5-1 and IEC 60664 standards ensuring quality and safety.
- Includes yellow LED operating voltage display to indicate coil status.
Product Description
Phoenix Contact 2909651 MS Series Interface Relay is a compact and reliable DIN rail-mounted relay module designed for industrial automation and control systems. Featuring a coil voltage of 110V ac/dc and a low coil current of 15.3mA, this relay provides efficient electrical isolation and switching capabilities. It offers a Single Pole Double Throw (SPDT) contact configuration with a switching current of 6A, supporting both AC and DC voltages up to 250V.
The relay's compact dimensions (94mm length, 80mm height, 6.2mm width) allow for space-saving installation on standard NS 35/7.5 DIN rails. The module includes screw terminal connections for secure and reliable wiring. Manufactured with high-quality silver alloy contacts, it ensures durability and excellent conductivity. Operating temperature range spans from -40°C to 60°C, suitable for a variety of industrial environments.
Compliance with IEC 60947-5-1 and IEC 60664 standards confirms the relay meets rigorous electrical and safety requirements. The MS series is designed for use in automation equipment, providing voltage adjustment, signal conditioning, and electrical isolation between control circuits and peripheral devices.
The relay module is cost-effective and saves valuable DIN rail space. Suitable for power amplification and frequency varying voltage level adjustment applications. Yellow LED operating voltage display indicates coil status.
Equipped with a free-wheeling (damping) diode for coil protection. Ideal for industrial, manufacturing, electrical, and HVAC automation uses.
The set and series provide reliable Interface Relay solutions for challenging industrial automation tasks. This product is manufactured in Germany in new condition, ensuring high quality and performance.
Explore more industrial automation relays and interface modules on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 110V ac/dc.
It supports a maximum switching current of 6A.
The dimensions are 94mm in length, 80mm in height, and 6.2mm in width.
This model is designed for DIN rail mounting, specifically on NS 35/7.5 rails.
It operates reliably within a temperature range of -40°C to 60°C.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The contacts are made of silver alloy, ensuring good conductivity.
It conforms to IEC 60947-5-1 and IEC 60664 standards.
This model is equipped with screw terminal connections for secure wiring.
The coil current is 15.3mA, which supports energy-efficient operation.
It is suitable for industrial automation, control systems, and HVAC automation uses.
Yes, it includes a yellow LED operating voltage display to indicate coil status.
