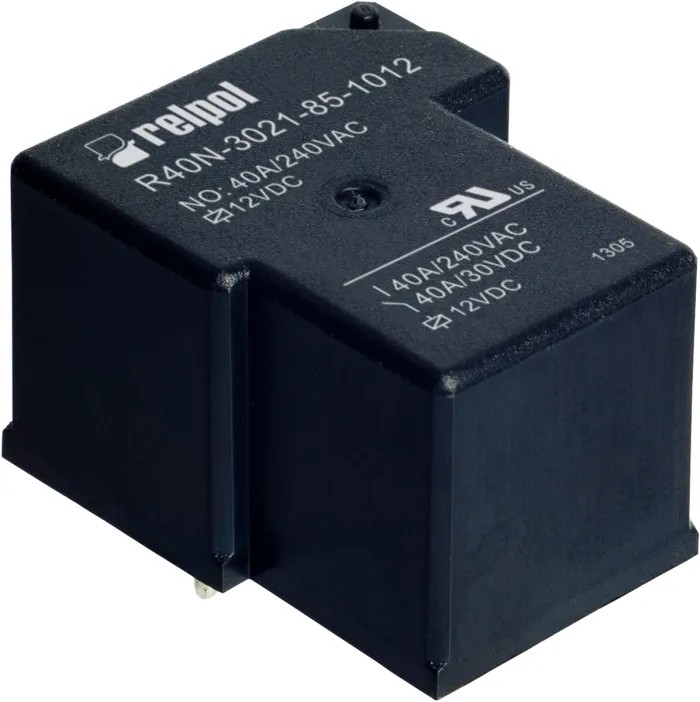

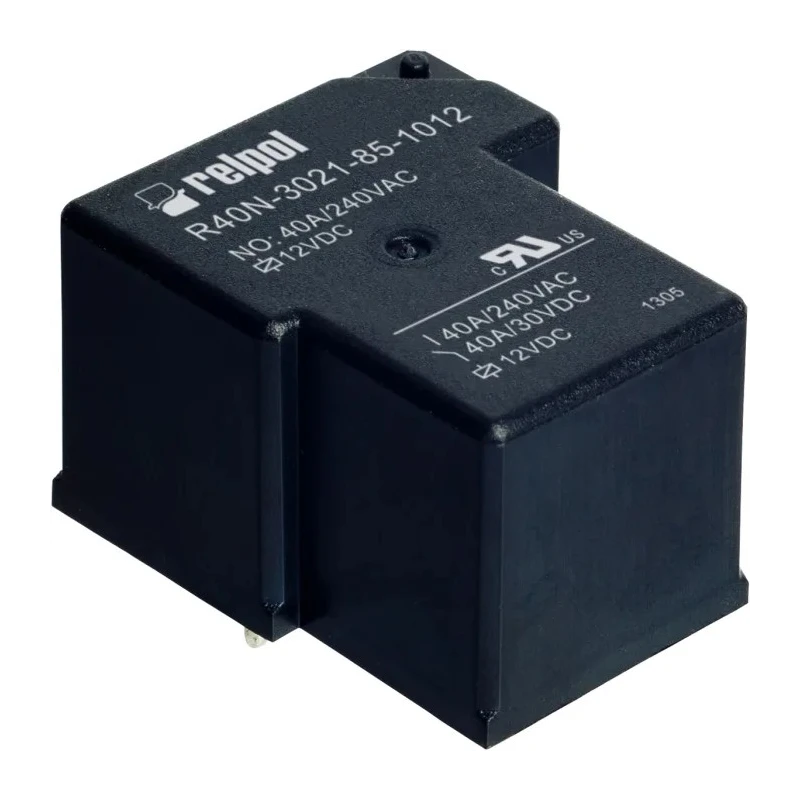

Relpol PCB Power Relay 12V dc Coil 40A Switching Current 1 CO R40N-3011-85-1012

Free Delivery in India | Lowest Global Shipping Charges

Relpol PCB Power Relay 12V dc Coil 40A Switching Current 1 CO R40N-3011-85-1012

Name: Relpol PCB Power Relay 12V dc Coil 40A Switching Current 1 CO R40N-3011-85-1012
Brand: Relpol
SKU: 202393
Price: 11.54 USD
Availability: InStock



Category Power Relay Brand Relpol Condition New

Specifications

Country of Origin	Poland
Brand	Relpol
Height	20.5mm
Length	32.5mm
Model	R40N-3011-85-1012
Width	25.5mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	R40N
Maximum Operating Temperature	100°C
Contact Configuration	1 CO
Minimum Operating Temperature	-55°C
Switching Current	40A
Terminal type	PCB Pin
Contact Resistance	30mΩ
Standards/Approvals	RoHS, EAC
Coil Resistance	160Ω
Coil Voltage	12V dc
Switching DC Voltage	110V dc
Switching AC Voltage	110V ac
Coil Power	900mW

Key Features

Operates with a 12V dc coil voltage for reliable switching.
Supports a switching current of up to 40 amperes.
Designed with a 1 CO contact configuration for versatile usage.
Compact PCB mount type with silver alloy contacts ensuring durability.
Wide operating temperature range from -55°C to 100°C.
Low contact resistance of 30 milliohms for efficient operation.
High shock and vibration resistance suitable for industrial applications.
Compliant with RoHS and EAC standards for safety and quality.

Product Description

Relpol R40N-3011-85-1012 is a PCB Power Relay engineered for industrial and general-purpose applications requiring compact design and high reliability. It features a 12V dc coil and supports high switching currents up to 40A, making it suitable for switching loads in automotive, machinery, and electronic equipment environments.

This relay is mounted on PCBs with PCB pin terminals, incorporating a 1 CO contact configuration with silver alloy contacts that provide excellent conductivity and durability. It operates efficiently within a temperature range of -55°C to 100°C and accommodates switching voltages of up to 110V AC or DC. The coil resistance of 160Ω and coil power of 900mW ensure stable energizing performance.

With a compact size of 32.5mm length, 25.5mm width, and 20.5mm height, this relay offers versatility for dense PCB layouts while maintaining mechanical robustness. It exhibits low contact resistance of 30mΩ and high shock and vibration resistance, suitable for demanding industrial conditions.

Certified to meet RoHS and EAC standards, the relay provides confidence in environmental compliance and reliability. Operates with a 12V dc coil voltage for reliable switching. Supports a switching current of up to 40 amperes.

Designed with a 1 CO contact configuration for versatile usage. Compact PCB mount type with silver alloy contacts ensuring durability. Wide operating temperature range from -55°C to 100°C. Low contact resistance of 30 milliohms for efficient operation.

High shock and vibration resistance suitable for industrial applications. Compliant with RoHS and EAC standards for safety and quality. Ideal for automobile, machine, and electronic equipment use.

This PCB power relay is an essential component for electrical, automation, and machine control systems requiring precision switching with high current capacity. Explore more options in relays and Power Relays at EnvMart for your industrial and electronic application needs.
