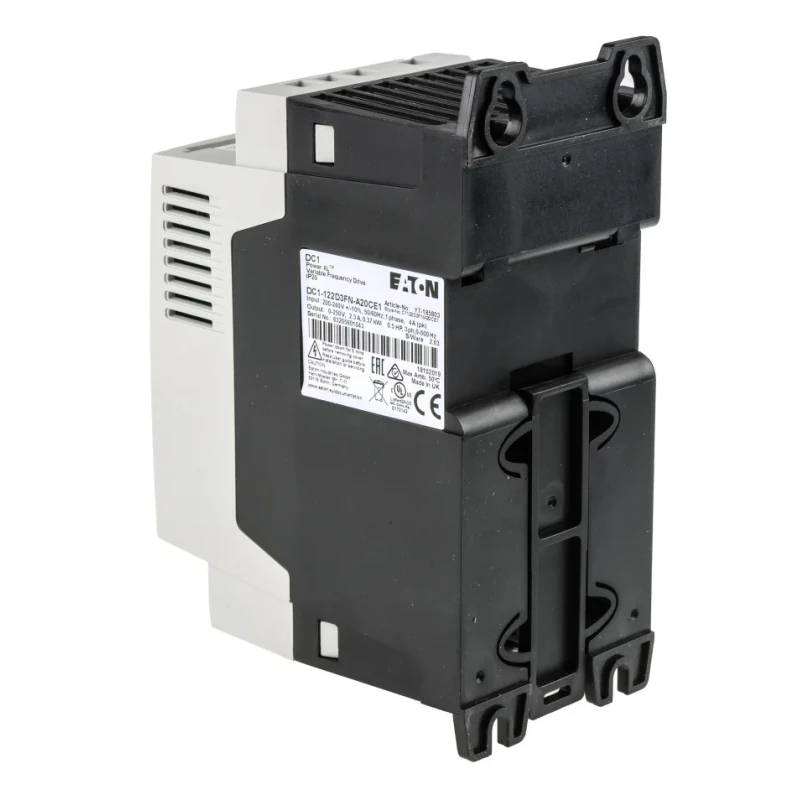

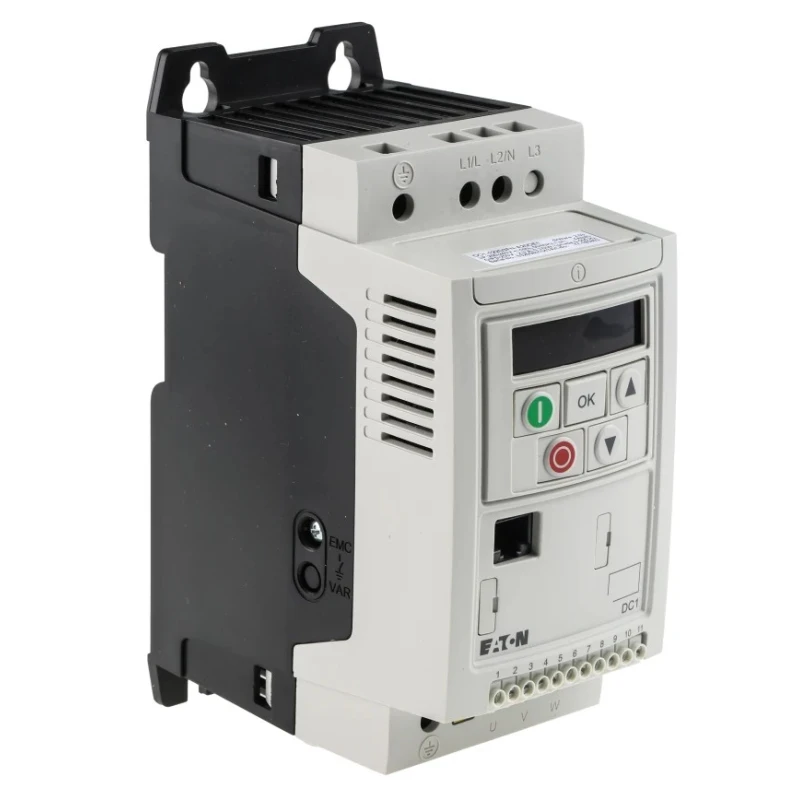

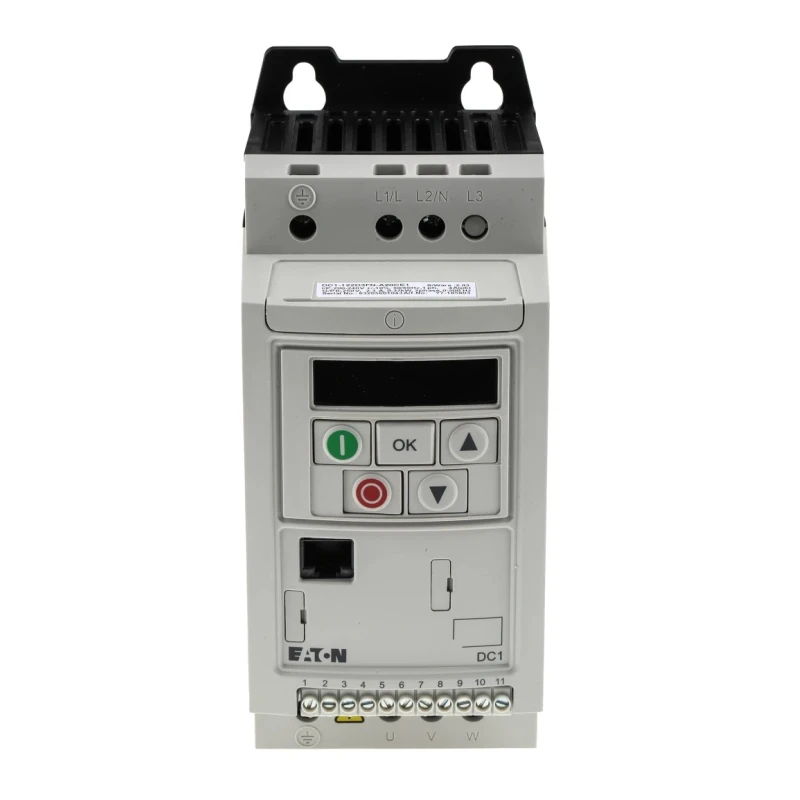

Eaton Inverter Drive, 370 W, 1 Phase, DC1 Series, 230V ac, 2.3 A 185803 DC1-122D3FN-A20CE1
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Model | 185803 DC1-122D3FN-A20CE1 |
| IP Rating | IP20 |
| Drive Type | Vector Control |
| Mount Type | Flange |
| Overall Length | 81mm |
| Series | DC1 |
| Overall Width | 124mm |
| Power Rating | 370W |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 50Hz |
| Minimum Operating Temperature | +50°C |
| Number of Phases | 1 |
| Maximum Output Current | 2.3A |
| Standards/Approvals | CE, cUL, EAC, RCM, UkrSEPRO, UL |
| Overall Depth | 184mm |
| Minimum Supply Voltage | 230V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor |
| Large overload capability | 150% for 60 seconds, 175% for 2 seconds |
Key Features
- Single-phase input with 230V AC supply voltage and 2.3 A maximum output current.
- Compact design featuring flange mount type with dimensions 124 x 81 x 184 mm (W x L x D).
- IP20 rated enclosure suitable for indoor industrial environments.
- V/Hz control with start voltage boost and slip compensation for precise motor speed regulation.
- Integrated PI controller and support for CANopen and Modbus communication protocols.
- Operating temperature range up to 50°C, suited for machine building, fans, pumps, and conveyor systems.
- Easy commissioning with only 14 basic parameters and digital LED display for user-friendly control.
- Energy-saving design compliant with CE, cUL, EAC, RCM, UkrSEPRO, and UL standards.
Product Description
Eaton 185803 DC1-122D3FN-A20CE1 inverter drive delivers 370 W power with a single-phase 230V AC input and variable frequency vector control, designed specifically for asynchronous motors. This compact inverter belongs to Eaton's DC1 series and provides a maximum output current of 2.3 A, optimized for efficient operation in industrial settings.
The unit features a flange mount type with overall dimensions of 124 mm width, 81 mm length, and 184 mm depth, housed in an IP20 rated enclosure ensuring basic protection against solids for indoor use. It operates reliably within a temperature range up to 50°C, accommodating typical factory environments and machine building requirements.
Designed for quick deployment, the DC1 series inverter uses only 14 basic parameters for fast commissioning and includes a digital LED display for straightforward monitoring and adjustments. The drive performs V/Hz control enhanced with start voltage boost and slip compensation to maintain precise motor speed control. An integrated PI controller helps optimize process control.
Communication is facilitated through integrated CANopen and Modbus protocols, allowing easy integration into automation systems. The drive has a robust overload rating, tolerating 150% current for 60 seconds and 175% for 2 seconds, suitable for transient heavy load conditions seen in fans, pumps, and conveyor drives.
This Eaton inverter drive is a better world product, designed to save energy while meeting stringent international standards including CE, cUL, EAC, RCM, UkrSEPRO, and UL. Made in the United Kingdom, it serves diverse industrial applications, particularly in automation, manufacturing, HVAC systems, and water treatment plants.
Single-phase input 230V AC with 2.3 A output current. Compact flange mounting with IP20 enclosure. Easy setup with 14 parameters and digital display. Supports CANopen and Modbus communication. High overload capability for demanding loads.
Energy-efficient operation for industrial automation. Suitable for fans, pumps, conveyors, and machine builders. Compliance with global safety and quality standards. Manufactured in the United Kingdom. Part of Eaton’s PowerXL Compact DC1 series.
Explore Eaton products and Inverter Drives categories on EnvMart for comprehensive industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton inverter drive has a power rating of 370 W.
This model provides a maximum output current of 2.3 A.
It is compatible with asynchronous motors.
The unit features an IP20 rated enclosure, suitable for indoor use.
The overall dimensions are 124 mm in width, 81 mm in length, and 184 mm in depth.
The inverter drive operates reliably within a temperature range up to 50°C.
It supports CANopen and Modbus communication protocols for integration into automation systems.
This model features a flange mount type for installation.
It has a large overload capability, tolerating 150% current for 60 seconds and 175% for 2 seconds.
It utilizes vector control for precise motor speed regulation.
It complies with several international standards including CE, cUL, EAC, RCM, UkrSEPRO, and UL.
The drive can be commissioned using only 14 basic parameters, simplifying the setup process.
