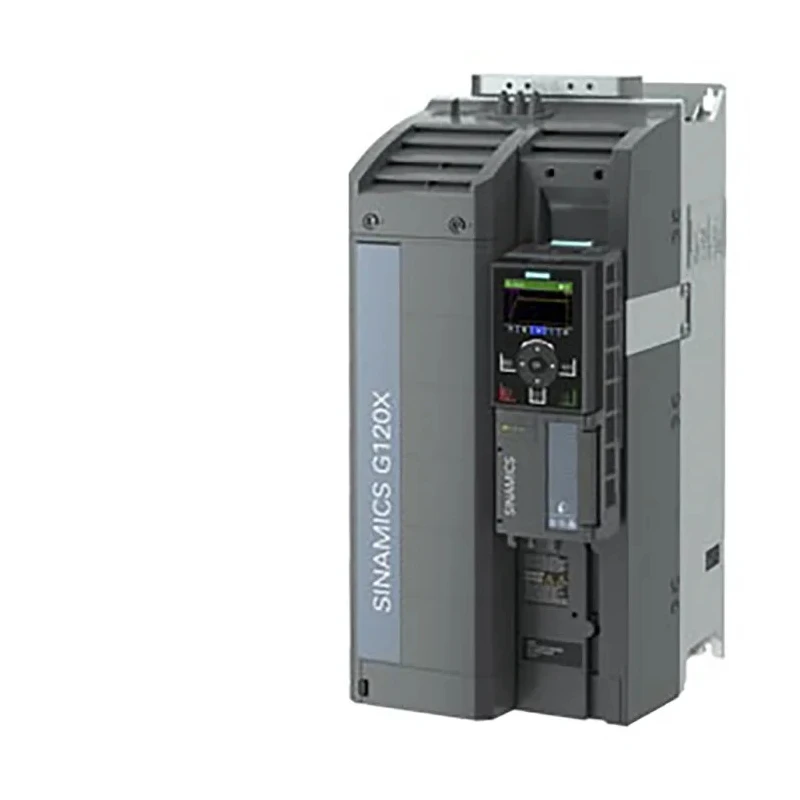

Siemens Inverter Drive 22 kW 3 Phase SINAMICS G120X Series 480V 12A 6SL3220-2YE32-0UF0

Siemens 6SL3220-2YE32-0UF0 inverter drive is a high-performance industrial product designed for efficient motor control in a wide range of applications including manufacturing, HVAC systems, water treatment, and industrial automation.

It features a 22 kW power rating and a 3 phase AC input compatible with various AC motor types. Its maximum output current of 12A combined with PID control drive type facilitates precise process control.

The drive comes from the SINAMICS G120X series, known for its energy efficiency with power-saving features such as flux reduction through automatic adaptation to load conditions and a hibernation mode optimized for processes.

The design is wall mountable with IP20 ingress protection, making it suitable for protected indoor environments. Voltage inputs range from 380V to 480V with output frequency capabilities up to 200Hz, offering versatile control over motor speed.

This product operates reliably in temperature environments from -20°C to +55°C, supporting harsh industrial settings. The inclusion of an SD memory card enables simple pre-configuration and cloning of parameters for quick replacement and reduced downtime.

Dimensions are compact, with an overall length of 200mm, width 239mm, and depth 472mm, allowing space-saving installations.

The inverter drive holds multiple international certifications including CE, UL Listed, cUL Recognized, EAC Certified, KCC, RCM, REACH, and SEMI F47 standards, ensuring compliance with global safety and environmental regulations.

Manufactured in the United Kingdom, this drive contributes to energy savings under partial loads and is an ideal choice for improving efficiency in commercial and industrial motor control applications.

Equipped with SINAMICS G120X series technology ensuring energy efficiency. Supports maximum output current of 12A with PID control drive type. Wall mountable design with IP20 protection rating. Operational voltage range from 380V minimum to 480V maximum supply voltage.

Allows output frequency up to 200Hz suitable for AC motors. Operates effectively within -20°C to +55°C temperature range. Includes unique SD memory card for easy pre-parameterization and data cloning. CE, UL, cUL, EAC, KCC, RCM, REACH, and SEMI F47 certifications for international compliances.

Compact dimensions: 200mm length, 239mm width, and 472mm depth. Designed and manufactured in the United Kingdom with energy-saving capabilities. Discover high-quality Inverter Drives and automation products with Siemens in the EnvMart industrial catalog.
