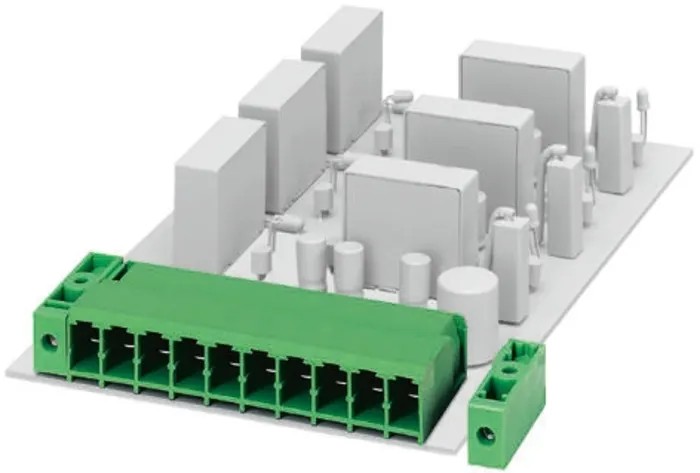

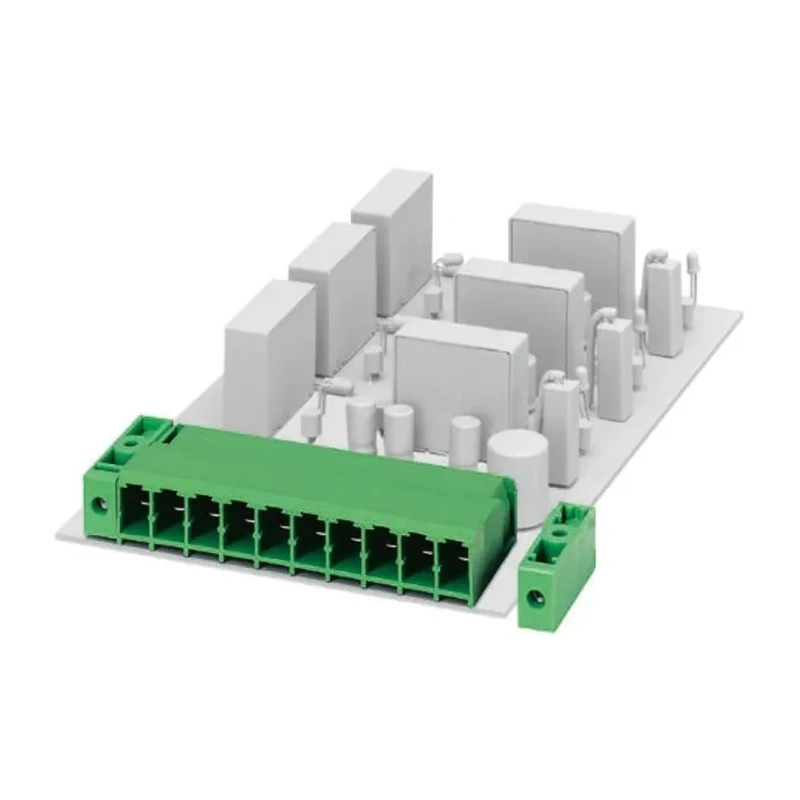

Phoenix Contact Pluggable Terminal Block 12-Contact 7.62 mm Pitch 1 Row 20A 400V Polybutylene Terephthalate Housing 1804894

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Pluggable Terminal Block 12-Contact 7.62 mm Pitch 1 Row 20A 400V Polybutylene Terephthalate Housing 1804894

Name: Phoenix Contact Pluggable Terminal Block 12-Contact 7.62 mm Pitch 1 Row 20A 400V Polybutylene Terephthalate Housing 1804894
Brand: PHOENIX CONTACT
SKU: 201712
Price: 15.3 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	400V
Brand	Phoenix Contact
Colour	Green
Orientation	Right Angle
Current	20A
Length	29mm
Model	1804894
Depth	19.25mm
Width	91.42mm
Housing Material	Polybutylene Terephthalate
Series	PC 4/12-G-7.62
Number of Rows	1
Pitch	7.62mm
Standards/Approvals	CHINA RoHS, CSA, cULus, EU REACH SVHC, EU RoHS
Number of Contacts	12
Connector Gender	Male
Maximum Wire Size mm²	4mm²
Wire Connection Method	Solder

Key Features

The housing is made of durable polybutylene terephthalate, ensuring high mechanical stability.
Supports a maximum current of 20A and voltage rating of 400V for robust electrical performance.
Male connector gender with a right angle orientation facilitates accurate and safe wiring in compact spaces.
Wire connection is solder-based, suitable for soldering applications on PCBs.
The terminal block measures 91.42 mm in width, 29 mm in length, and 19.25 mm in depth, fitting standard PCB designs.
Complies with CHINA RoHS, CSA, cULus, EU REACH SVHC, and EU RoHS standards for safety and environmental compliance.
Made in Germany, reflecting high manufacturing quality and reliability.

Product Description

Phoenix Contact 1804894 is a high-quality pluggable terminal block designed for electronic and electrical applications requiring secure and reliable connections. It features 12 contacts arranged in a single row with a 7.62 mm pitch, providing precise spacing for PCB mounting and wiring integration.

The housing is constructed from polybutylene terephthalate, known for its excellent mechanical strength and thermal resistance, suitable for demanding industrial environments. The terminal block supports a current rating of 20A and a voltage rating of 400V, ensuring it meets the electrical requirements of medium-power electronics and control systems.

Its male connector gender and right angle orientation support versatile PCB layouts where space optimization is critical. The wire connection method using solder ensures stable, permanent connections ideal for circuit boards in industrial, laboratory, manufacturing, and automation systems.

Dimensionally, the block measures 91.42 mm wide, 29 mm long, and 19.25 mm deep, aligning with standard COMBICON PC 4/12-G-7.62 series specifications. Compliance with CHINA RoHS, CSA, cULus, EU REACH SVHC, and EU RoHS standards attests to its safety, environmental friendliness, and broad usability.

Manufactured in Germany, this terminal block exemplifies precision engineering and durability, ideal for applications in electronics components and power connectors sectors. Durable polybutylene terephthalate housing ensures longevity and stability.

12-contact design with standardized 7.62 mm pitch for PCB compatibility. Supports up to 20A current and 400V voltage for dependable power connections. Male, right angle connector orientation facilitates diverse PCB applications.

Solder wire connection method provides robust and secure electrical connections. Compliance with multiple international safety and environmental standards. Compact dimensions fit standard PCB form factors.
