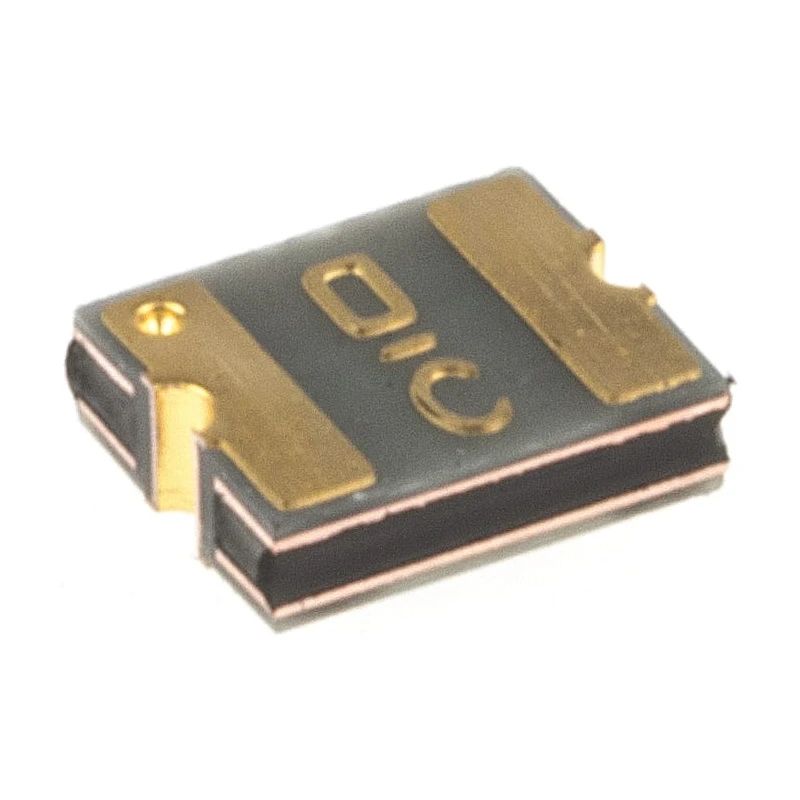

Bourns 0.35A Resettable Fuse 6V Surface Mount 1210 Package MF-USMF035-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 6V |
| Brand | Bourns |
| Height | 0.85mm |
| Length | 3.43mm |
| Model | MF-USMF035-2 |
| Width | 2.8mm |
| Current Rating | 40A |
| Series | MF-USMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1210 |
| Trip Current | 0.75A |
| Power Dissipation | 0.6W |
| Terminal Material | Electroless Nickel Immersion Gold Plated |
| Standards/Approvals | UL, RoHS |
| Time to Trip | 0.2s |
| Hold Current | 0.35A |
| Minimum Resistance | 0.2Ω |
| Maximum Resistance | 1.3Ω |
Key Features
- Provides fast tripping resettable circuit protection for electronic circuits.
- Features automatic reset and returns to low resistance state after fault removal.
- Comes in a compact 1210 surface mount package suitable for automated assembly.
- Constructed with electroless nickel immersion gold plated terminals for reliable connections.
- Operates reliably between -40°C and 85°C ambient temperatures.
- Power dissipation rating of 0.6 watts ensures effective thermal management.
- Complies with UL and RoHS standards for quality and environmental safety.
- Ideal for use in security systems, power supplies, automotive, medical, and telecom applications.
Product Description
Bourns MF-USMF035-2 is a 0.35 Ampere resettable fuse rated at 6 Volts in a 1210 surface mount technology package designed for automatic circuit protection. It quickly limits excessive current by switching to a high resistance state during overloads or short circuits, then automatically resets once the fault condition is cleared and power is removed.
This fuse offers maintenance-free operation capable of thousands of reset cycles, making it highly reliable for continuous protection in sensitive electronics. Its small footprint and surface mount format facilitate easy installation in automated manufacturing.
Featuring electroless nickel immersion gold plating on terminals, it ensures low resistance and consistent electrical contact. The device supports a trip current of 0.75A, hold current of 0.35A, and power dissipation of 0.6W, with a minimum resistance of 0.2Ω and maximum resistance of 1.3Ω.
The operating temperature range from -40°C to +85°C provides robustness in industrial, automotive, medical, instrumentation, and telecommunications fields. Provides fast tripping resettable circuit protection for electronic circuits.
Features automatic reset and returns to low resistance state after fault removal. Compact 1210 surface mount package suitable for automated assembly. Electroless nickel immersion gold plated terminals ensure reliable electrical connections.
Operates reliably in temperatures from -40°C to 85°C. Power dissipation rating of 0.6 watts. Conforms to UL and RoHS standards. Widely used in security systems, power supplies, automotive, medical, instrumentation, and telecommunication equipment.
This product is part of the Bourns MF-USMF series optimized for fast response and reset capability in low voltage circuit protection. It is essential for industrial, laboratory, and commercial electronic safety and efficiency.
Explore more industrial-grade Resettable Fuses and related circuit protection products with robust performance standards here at EnvMart.
