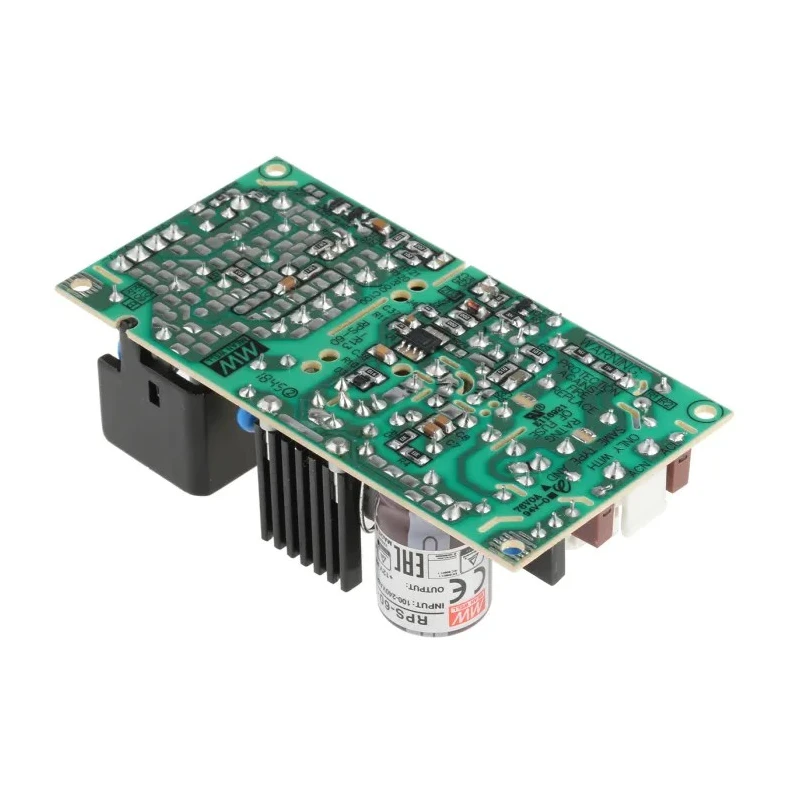

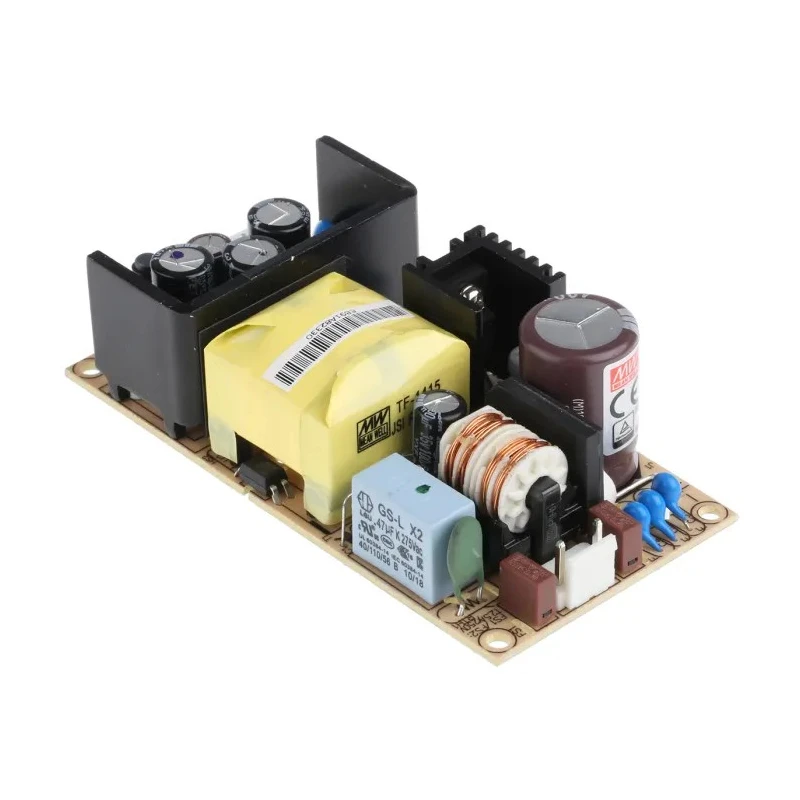

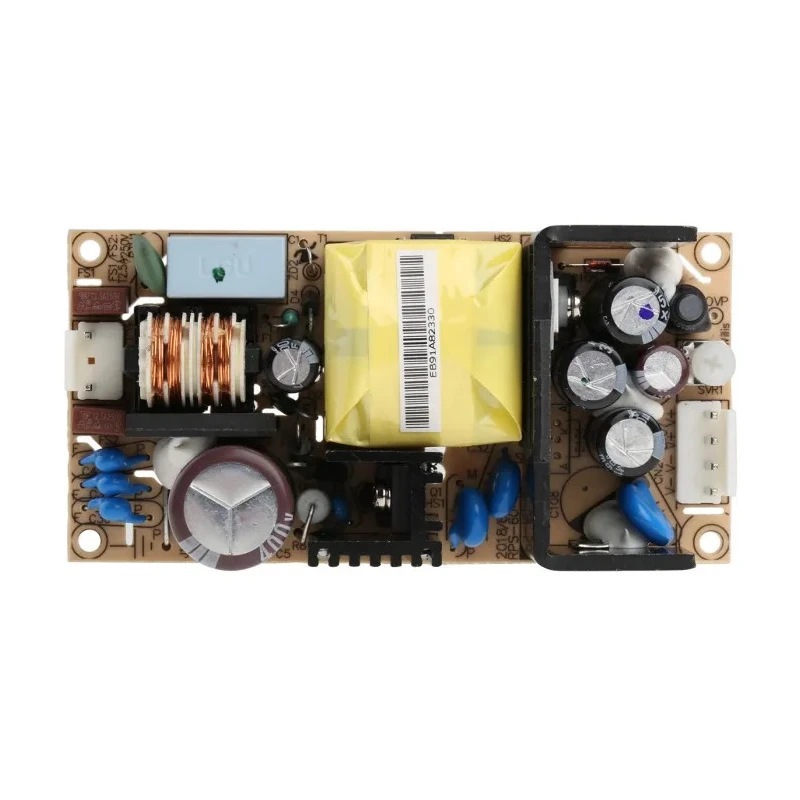

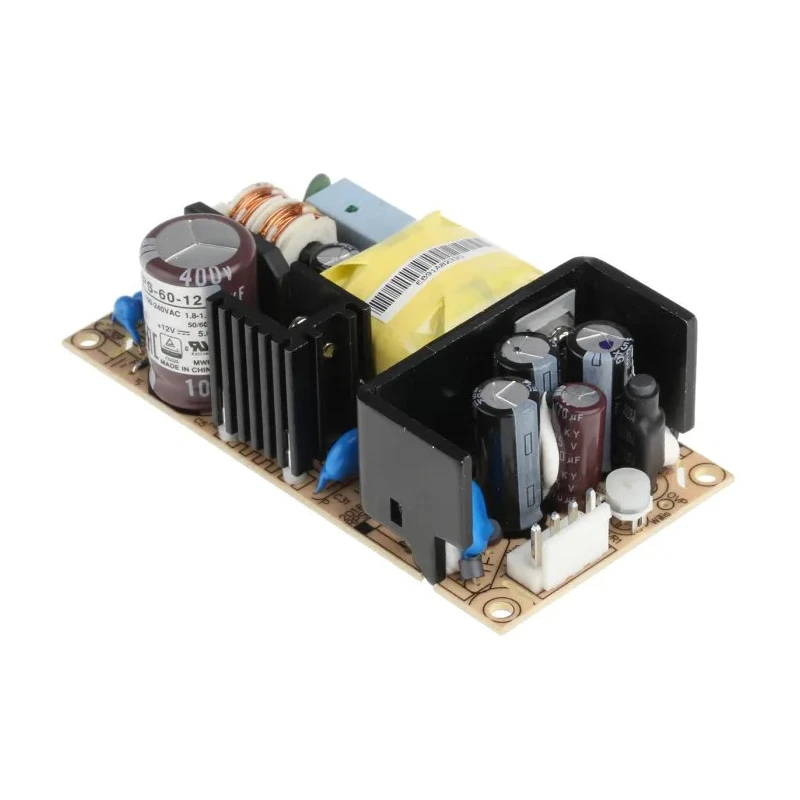

MEAN WELL 60W 12V DC Switching Power Supply Chassis Mounted Model RPS-60-12

MEAN WELL RPS-60-12 is a high-performance switching power supply providing 12V DC output at 5A with a power rating of 60W. It is a chassis-mounted unit designed to operate reliably in a wide range of industrial and medical applications requiring a compact and energy-efficient power solution.

This model features a universal input voltage range from 90V AC to 264V AC and 127V DC to 370V DC, making it versatile for global use. The power supply achieves a high efficiency of 84%, reducing power losses and heat generation, while its low no-load power consumption under 0.75W supports energy conservation.

The unit includes essential protections against short circuit, overload, and overvoltage conditions, enhancing operational safety and device longevity. Cooling is achieved through free air convection, eliminating the need for additional fans and lowering maintenance.

Dimensionally, the power supply is compact with a length of 101.6mm and 29mm in both width and depth, enabling easy integration in equipment with limited space.

This device complies with stringent medical safety standards and electromagnetic compatibility requirements including EN 61000-3-2, EN 55022 class B, UL 62368-1, and others, making it suitable for medical machines, oral irrigators, hemodialysis equipment, sleep apnea devices, and medical monitor applications.

The product is manufactured in China and is designed to meet the demands of industrial, laboratory, medical, and commercial power applications where reliability and safety are critical.

Single output with a maximum voltage of 12V DC. Maximum output current of 5A ensuring stable performance. Wide input voltage range from 90V AC to 264V AC and 127V DC to 370V DC. Compact chassis mount design with dimensions 101.6mm length, 29mm width, and 29mm depth.

High efficiency up to 84%, minimizing energy loss. Operational temperature range from -20°C to 70°C suitable for industrial environments. Low no-load power consumption less than 0.75W for energy saving. Includes protection features such as short circuit, overload, and overvoltage protection.

Complies with multiple international safety and EMC standards for medical and industrial applications. Explore other high-quality power supplies and components to find the right solution for your industrial or medical power needs on EnvMart.
