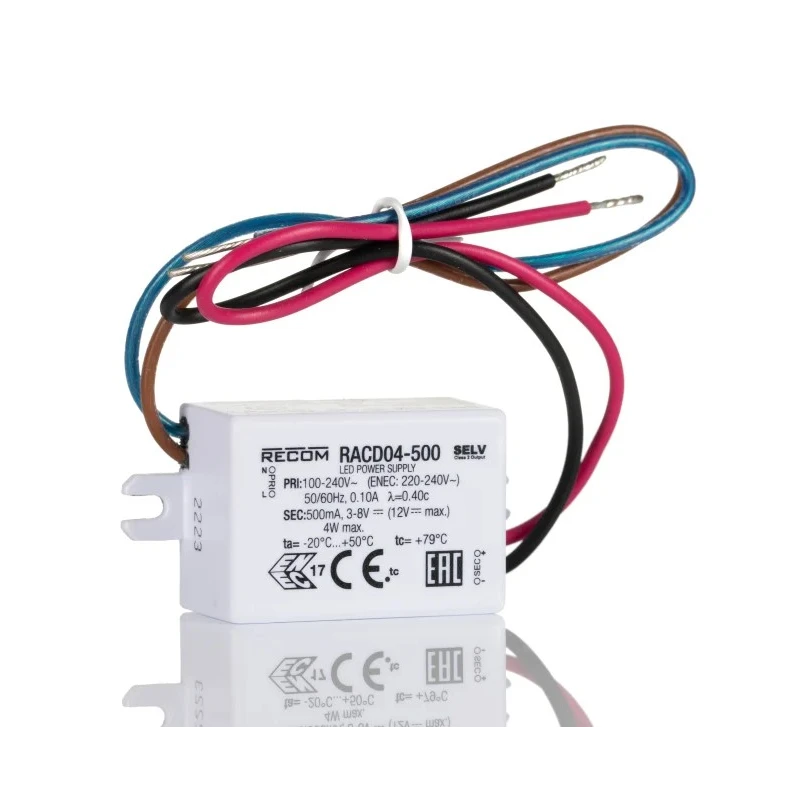

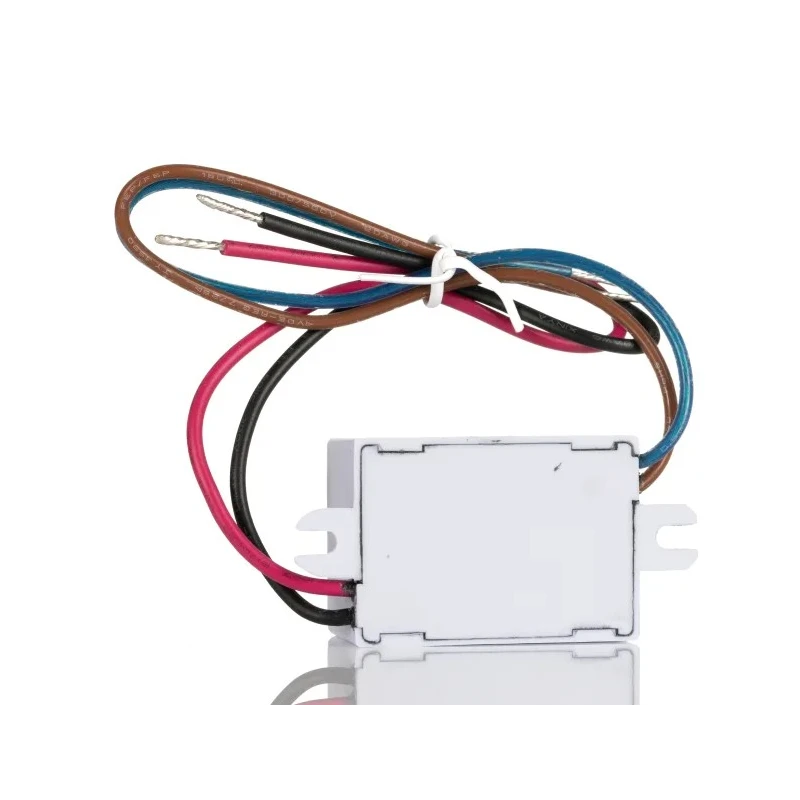

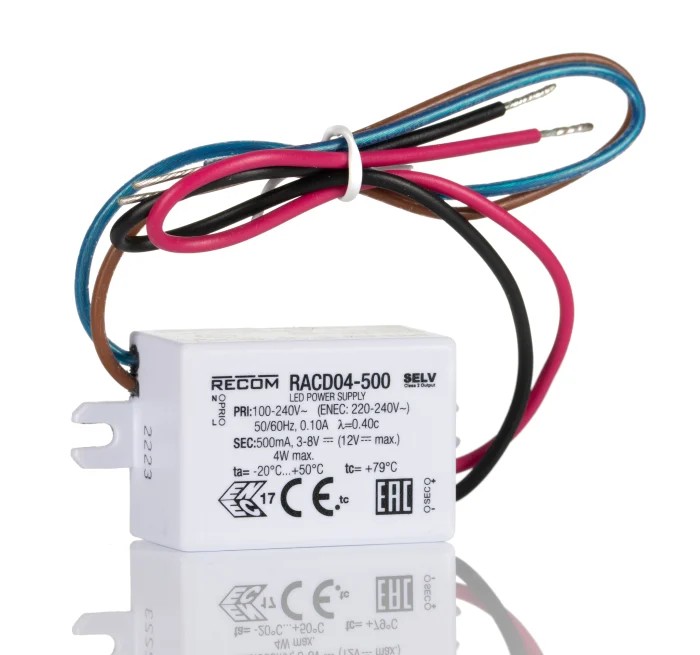

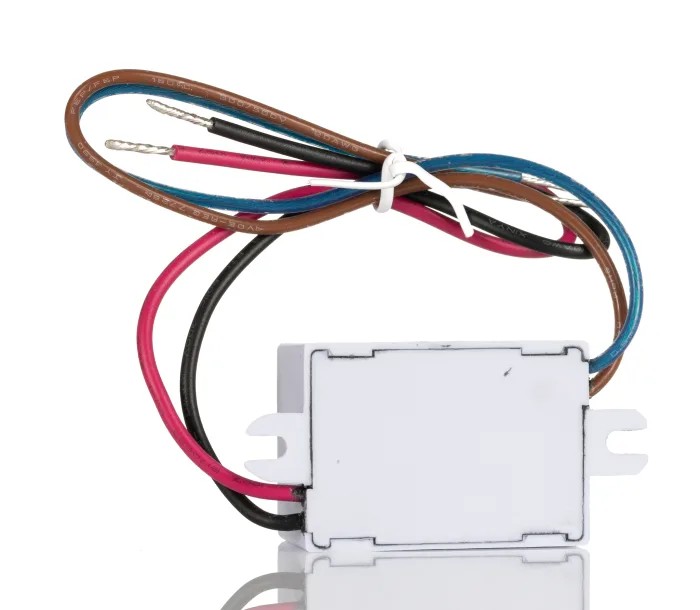

Recom IP65 1 Output LED Driver, 3 V DC to 8 V DC, 4 W, 500 mA Constant Current, AC-DC Enclosed RACD04-500

Free Delivery in India | Lowest Global Shipping Charges

Recom IP65 1 Output LED Driver, 3 V DC to 8 V DC, 4 W, 500 mA Constant Current, AC-DC Enclosed RACD04-500

Name: Recom IP65 1 Output LED Driver, 3 V DC to 8 V DC, 4 W, 500 mA Constant Current, AC-DC Enclosed RACD04-500
Brand: Recom
SKU: 201056
Price: 20.22 USD
Availability: InStock



Category LED Lighting Components Brand Recom Condition New

Specifications

Country of Origin	India
Brand	Recom
Model	IP65
IP Rating	IP65
Mount Type	Screw
Series	RACD04
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Current
Number of outputs	1
Terminal type	Wire
Maximum Output Power	4W
Input Voltage	264V ac
Output Voltage	3, 8V dc
Power Dissipation	4W
Primary Type	AC-DC
Driver Current	500mA
LED Voltage	264, 90V

Key Features

This LED driver supports AC input voltage up to 264 V and features screw mounting for secure installation.
The enclosure is rated at IP65, ensuring protection against dust and low-pressure water jets.
It offers a line regulation rating of ±5% and a start-up time of 500 ms for reliable performance.
The driver includes built-in protections for overvoltage, overload, and short circuits.
Applications include signaling systems, retail installations, and process control environments.
Operating temperature range spans from -20°C to +50°C, suitable for various challenging industrial contexts.
Color-coded wiring facilitates easy identification and installation.

Product Description

Recom RACD04-500 is a high-efficiency IP65-rated LED driver designed to deliver a constant current of 500 mA with output voltage adjustable between 3 and 8 V DC. It supports a wide AC input voltage range up to 264 V, making it suitable for diverse power environments.

The product features an enclosed AC-DC configuration with screw mounting to ensure stability and ease during installation. Its plastic and silicone insulation minimizes electrical hazards, enhancing user safety in industrial and commercial applications.

With a maximum output power of 4 W and power dissipation rated equally at 4 W, this LED driver converts up to 75% of input power efficiently, reducing energy waste. The unit’s line regulation rating of ±5% and quick 500 ms start-up time contribute to a reliable and prompt power supply for LED lighting systems.

The IP65 rating certifies protection against dust and water jets, ensuring robust performance even in dusty or moist conditions, making it ideal for indoor and semi-outdoor LED lighting setups. The driver is equipped with comprehensive protections including overvoltage, overload, and short-circuit safeguards, which help to prevent downtime by allowing automatic recovery from faults.

Typical applications include signaling systems, retail displays, and industrial process control where steady and energy-efficient LED power is critical. The device operates reliably across a broad temperature range from -20°C to +50°C, supporting usage in a variety of challenging industrial or commercial environments.

This LED driver supports AC input voltage up to 264 V and features screw mounting for secure installation. IP65-rated enclosure offers protection against dust and low-pressure water jets. Provides constant current output of 500 mA adjustable between 3 V DC and 8 V DC.

Converts up to 75% of input power efficiently with a maximum output of 4 W. Built-in overvoltage, overload, and short-circuit protection enables automatic fault recovery. Wide operating temperature range of -20°C to +50°C accommodates diverse industrial environments.

Color-coded wires simplify installation and connection identification. Explore the range of LED Drivers by Recom on EnvMart for reliable solutions in electronic lighting components and systems.
