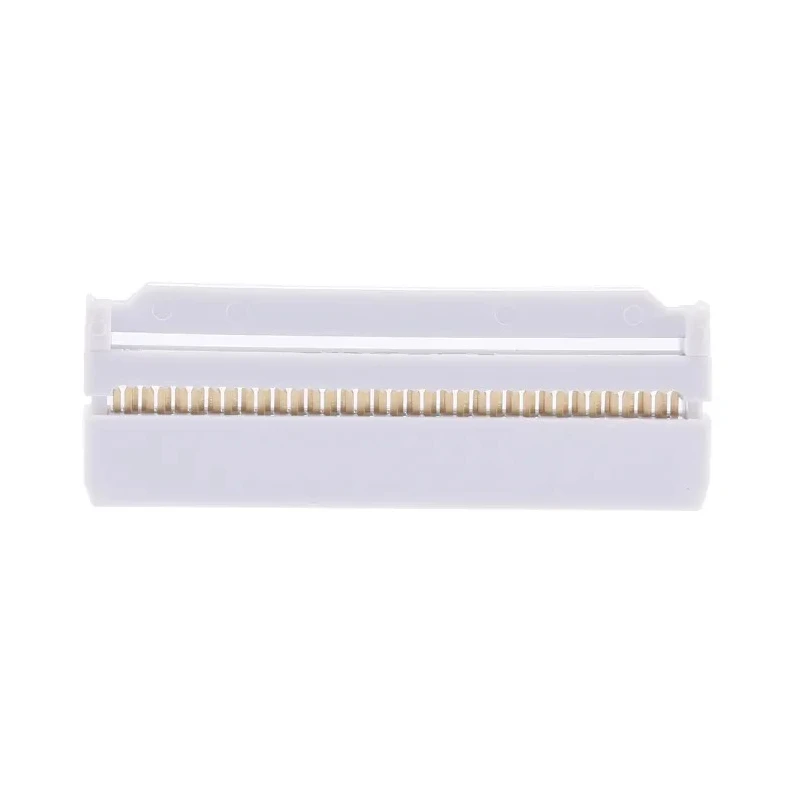

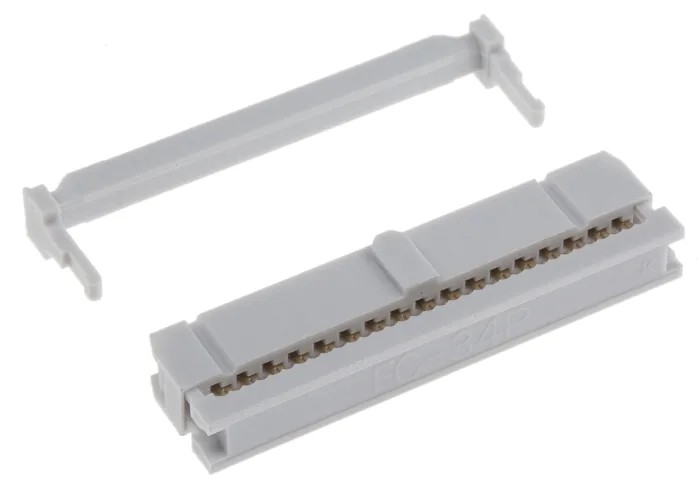

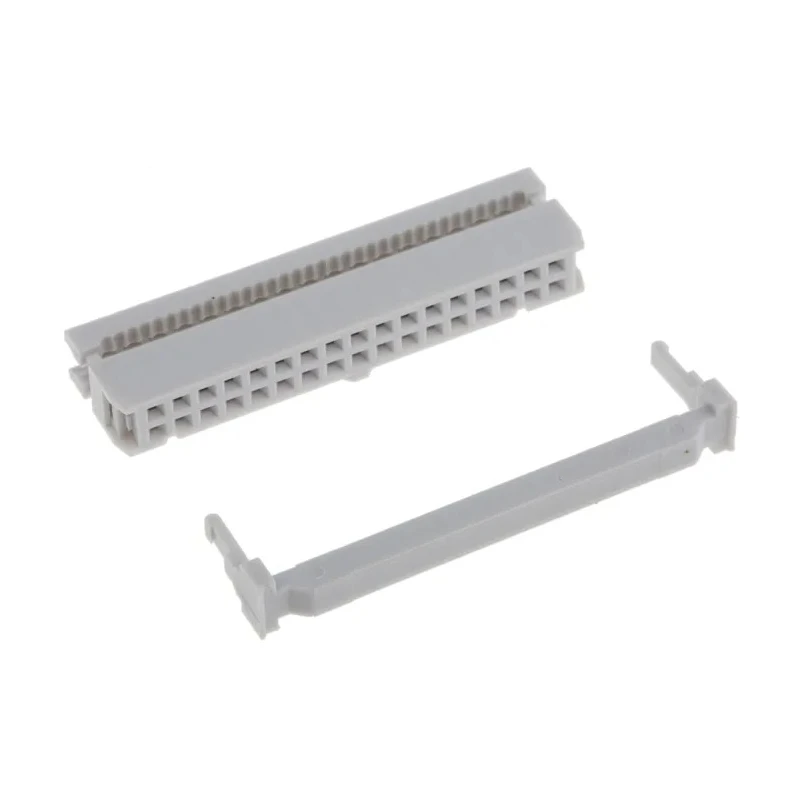

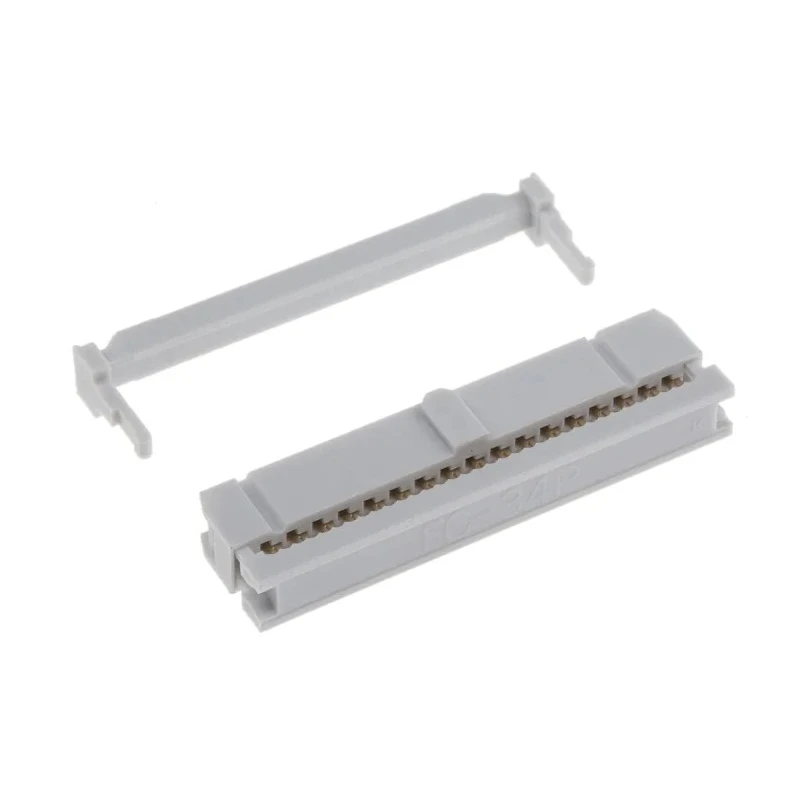

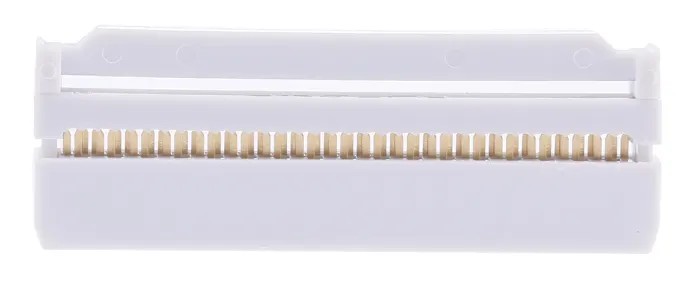

RS PRO 34-Way IDC Connector Female for Cable, 2 Row, 500V, 1A Current, Gold over Nickel Contacts 625-7280

RS PRO 625-7280 34-Way IDC Connector Female for Cable, 2 Row is a high-quality insulation displacement connector designed for efficient and reliable cable termination in electronic applications. Rated at 500 volts and supporting a 1 amp current, this connector is suitable for low voltage power and signal connections.

Constructed with phosphor bronze contacts plated with gold over nickel and housed in tough polybutylene terephthalate, this connector offers excellent durability and corrosion resistance. Its robust glass-filled polyester housing protects against mechanical stress and environmental factors, ensuring long-term reliability.

The cable mount connector has a right angle orientation, optimizing space in assemblies. It features a 2.54 mm pitch and a central bump polarization with double depth polarizing grooves which ensure proper mating and prevent misalignment during installation.

Operating effectively over a wide temperature range from -55°C to 105°C, the connector is well suited for use in computers connecting internal drives, SSDs, and other peripheral components, as well as in phones, laptops, and industrial electronic equipment.

This IDC connector terminates cables by slicing through the cable insulation to form strong cold-welded connections without the need for soldering or special tooling, accelerating assembly and reducing labor costs.

Features a 34-contact, 2-row female IDC style connection. Supports a maximum current of 1 ampere for low voltage applications. Contacts plated with gold over nickel ensure excellent conductivity and corrosion resistance.

Cable mount with right angle orientation for space-efficient installations. Constructed with phosphor bronze contacts and a durable polybutylene terephthalate housing. Operating voltage rated at 500 volts for various electronic uses.

Wide operating temperature range from -55°C to 105°C. Shrouded connector offers extra protection and durability. Designed with central bump polarization and double depth polarizing grooves for reliable mating. Ideal for wire-to-board applications including computer drives, phones, laptops, and other electronic equipment.

RS PRO products are known for their dependability and value, offering rigorous in-house testing for quality assurance. This connector serves industrial, laboratory, manufacturing, and commercial electronics assembly applications.
