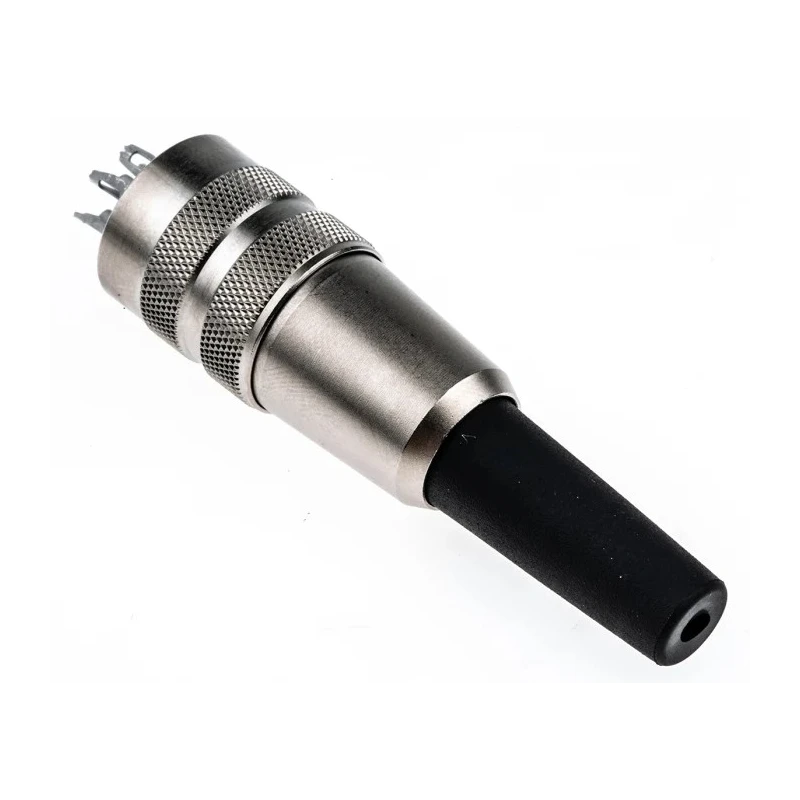

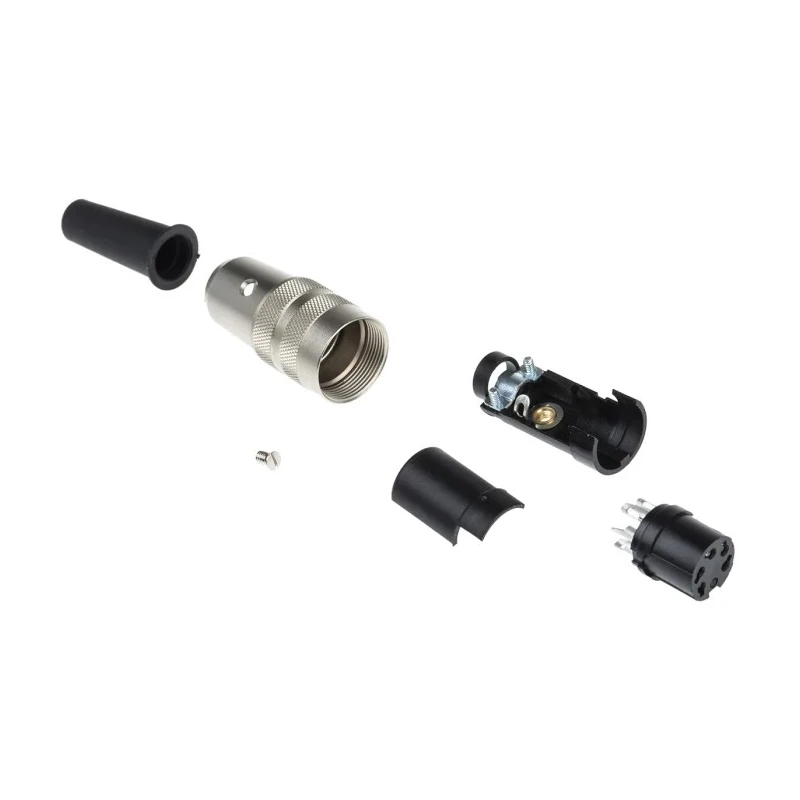

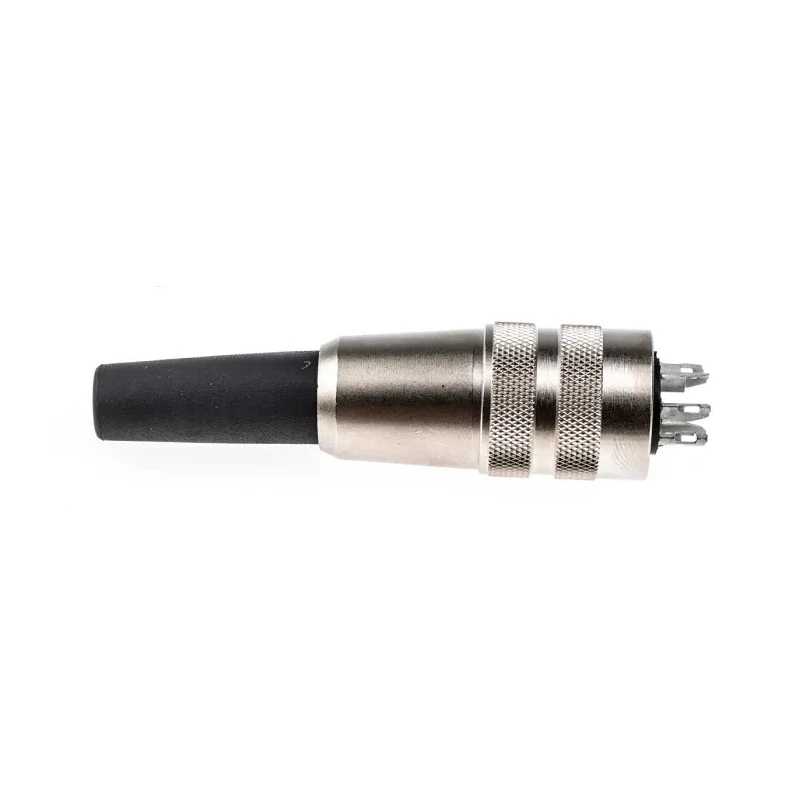

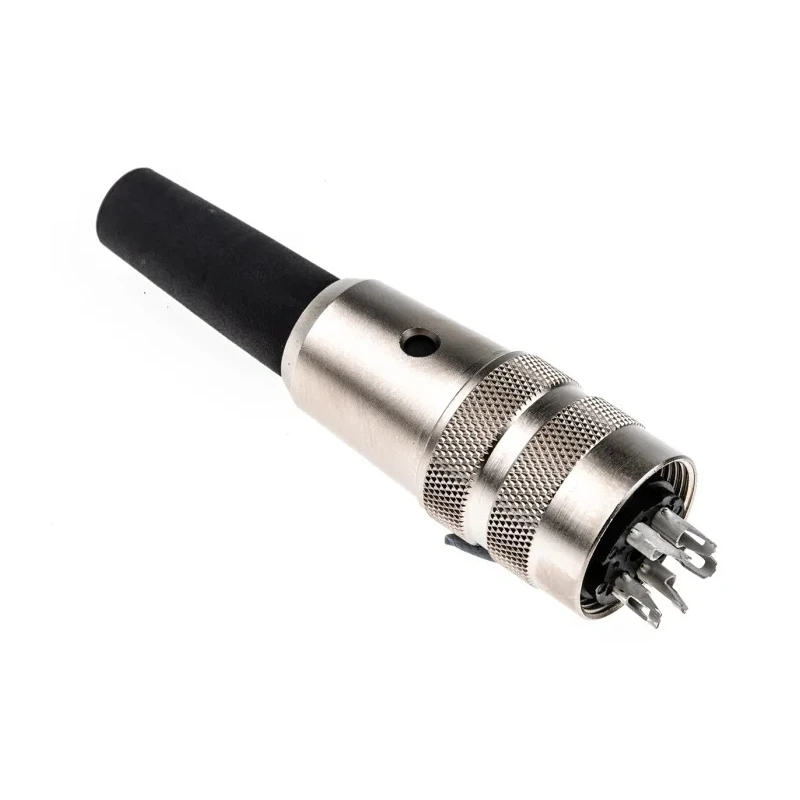

binder Circular Connector 5 Contacts Cable Mount M16 Socket Female IP40 680 Series 09-0314-00-05
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 6A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | DIN EN 61076-2-106 |
| Contact Plating | Silver |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Shell Size | 18.5 mm |
| Mating Type | Screw Lock |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- Compact miniature cable mount circular connector with M16 size and 5 contacts.
- Designed as a socket with female contact gender and solder termination.
- Supports current rating of 6A and voltage up to 125V.
- Robust polyamide housing with silver-plated bronze contacts ensures durability.
- Features screw lock mating type and IP40 ingress protection rating suitable for indoor use.
- Wide operating temperature range from -40°C up to 85°C.
- Complies with DIN EN 61076-2-106 standard for industrial circular connectors.
- Compact shell size of 18.5 mm with straight orientation simplifies cable connection.
Product Description
binder 09-0314-00-05 is a miniature circular connector designed for cable mounting applications with 5 contacts in an M16 size format. This female socket connector is part of the robust 680 series, featuring a polyamide housing and silver-plated bronze contacts to ensure reliable electrical connections.
The connector supports a current rating of 6A and operates at voltages up to 125V, making it suitable for industrial instrumentation, process control equipment, machine tools, and electrical systems requiring secure cable connections.
Equipped with a screw lock mechanism for secure mating and an internal bend protection sleeve, the 680 series connectors offer excellent cable retention and mechanical reliability. The IP40 ingress protection rating indicates suitability for indoor environments free from dust and moisture, thus it is not recommended for harsh or outdoor conditions.
This connector complies with DIN EN 61076-2-106 standards, ensuring industrial-grade performance under a wide temperature range from -40°C to 85°C. The compact design with an 18.5 mm shell size and straight orientation facilitates ease of installation in automated and machine applications.
Compact miniature cable mount design with M16 size and 5 contact points. Robust polyamide housing and silver-plated bronze contacts for durability. Screw lock mating type ensures secure and vibration-resistant connection.
IP40 rating for indoor use in non-dusty, non-moist environments. Wide operating temperature range suitable for diverse industrial applications. Compliant with DIN EN 61076-2-106 for quality industrial connectors. Internal bend protection sleeve for enhanced cable longevity.
Ideal for automation, instrumentation, and electrical equipment connections.
Ideal for industrial, manufacturing, automation, and electrical engineering sectors where reliable and compact cable connections are required. Explore more circular connectors and industrial electrical components at EnvMart for your application needs.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 6A.
It can operate at voltages up to 125V.
The connector features a solder termination type.
It has an IP40 ingress protection rating, suitable for indoor use.
The connector operates within a temperature range of -40°C to 85°C.
It has a polyamide housing and silver-plated bronze contacts.
This model features 5 contacts.
The shell size of this connector is 18.5 mm.
It uses a screw lock mating type for secure connections.
It complies with the DIN EN 61076-2-106 standard for industrial circular connectors.
The connector has a straight orientation.
It is suitable for industrial instrumentation, process control equipment, and electrical systems requiring secure cable connections.
