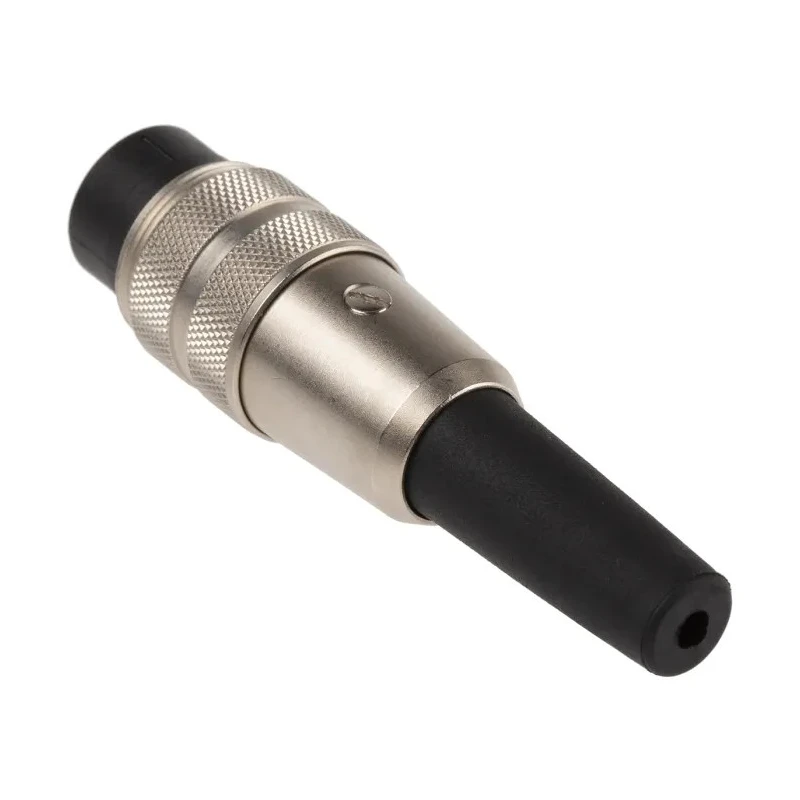

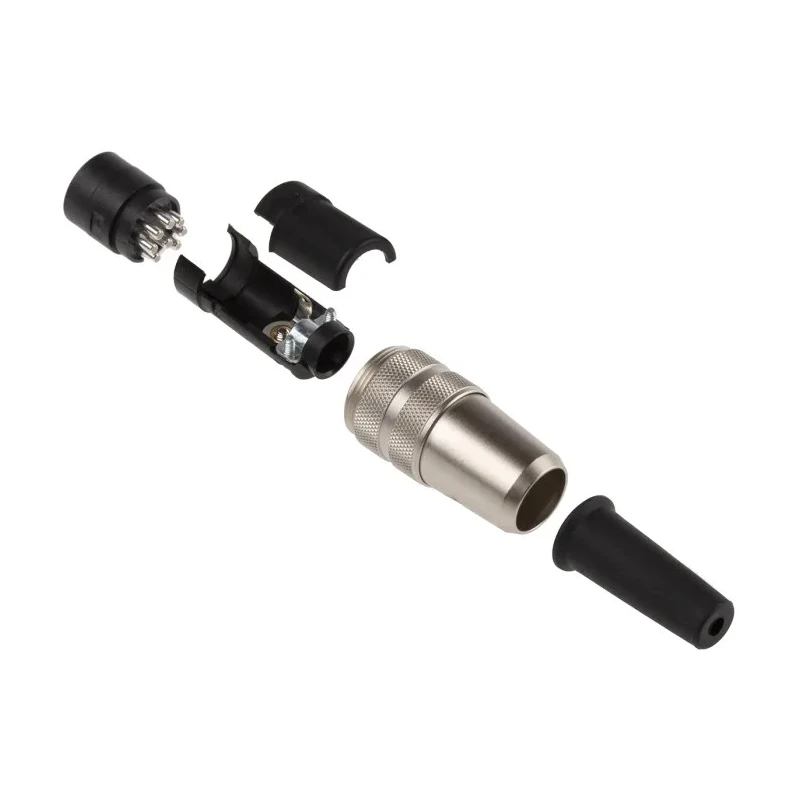

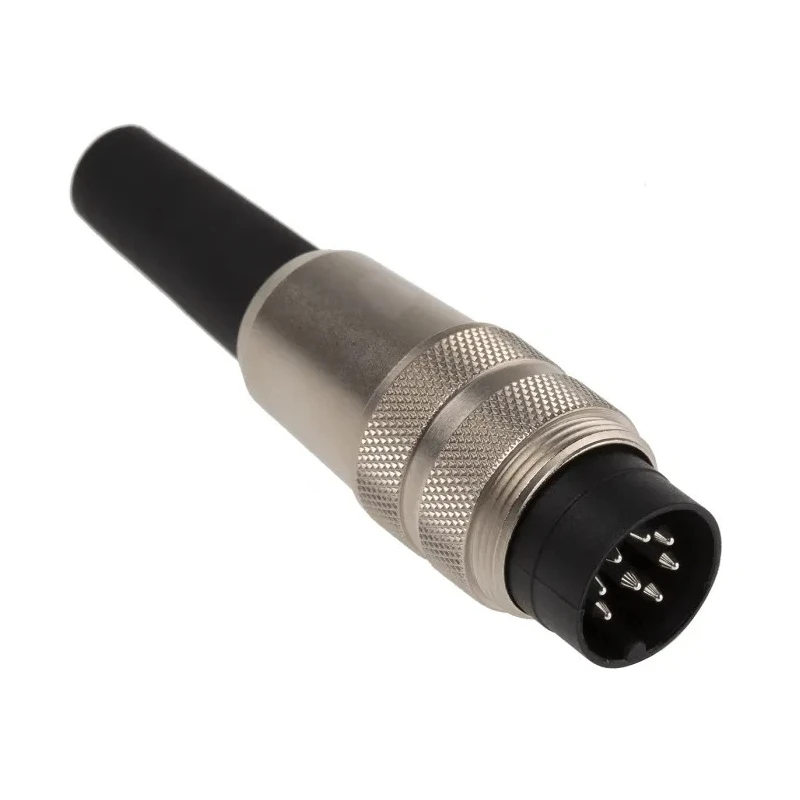

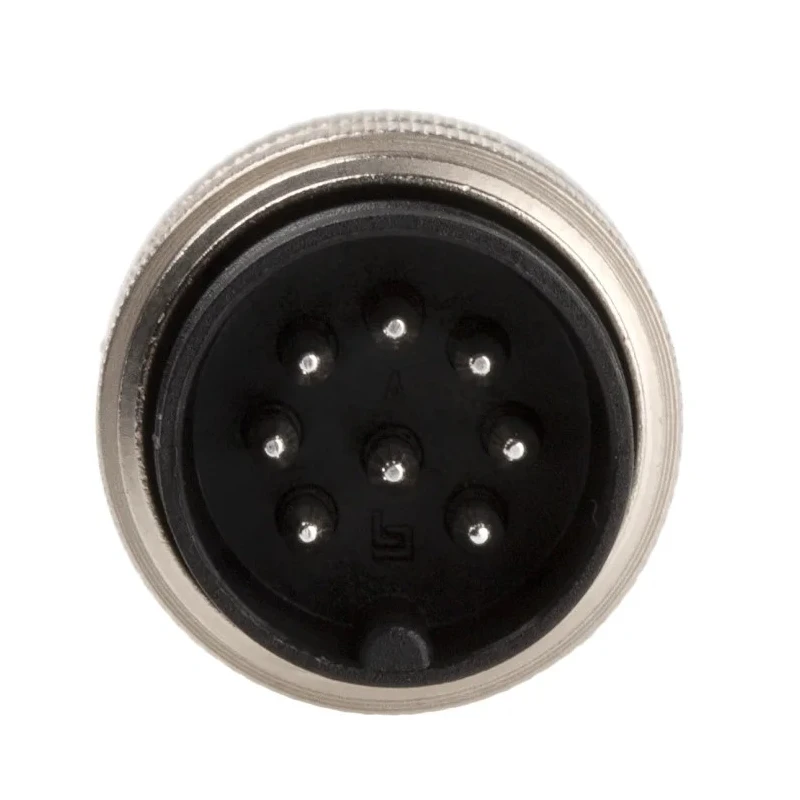

binder Circular Connector, 8 Contacts, Cable Mount, M16 Plug Male, IP40, 680 Series 09-0571-00-08
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Straight |
| Current | 5A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 8 |
| Contact Plating | Silver |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shell Size | 18.5 mm |
| Mating Type | Screw |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- The connector has 8 silver-plated brass contacts for corrosion-resistant conductivity.
- Solder termination ensures a secure and low-resistance connection.
- Rated for 60 volts and 5 amps suitable for low-voltage power and signal circuits.
- Polyamide housing offers electrical insulation and chemical resistance.
- Operating temperature range from -40°C to 85°C ensures durability in extreme conditions.
- Screw mating type provides mechanical secure connection resistant to vibration.
- Shell diameter of 18.5 mm supports compact panel and cable routing.
- Ideal for industrial sensor and actuator cabling in automation systems.
Product Description
binder 09-0571-00-08 circular connector is a high-quality cable-mount M16 plug with 8 contacts designed for robust low-voltage signal and power transmission in industrial environments. Rated for 60 volts and 5 amps, this plug offers reliable performance for compact power and signal applications.
The connector features eight silver-plated brass contacts which deliver excellent conductivity and corrosion resistance for long-term electrical reliability. The solder termination provides a secure, low-resistance joint ensuring stable conductors connection ideal for fixed installations.
Constructed with a polyamide housing, this connector provides superior electrical insulation and chemical resistance. It operates reliably across a wide temperature range from -40°C up to 85°C, making it well-suited to harsh industrial and automation conditions.
The M16 size connector has an 18.5 mm shell diameter enabling compact designs for panels and cable routing. The screw mating type ensures a strong mechanical connection that resists loosening under vibrations commonly found in industrial settings.
This binder 680 Series connector is particularly suitable for industrial sensor and actuator cabling, control-panel loom connections to field devices, low-voltage power distribution in machinery, signal transmission in assembly lines, and plug-and-play operations in test rigs.
The connector includes 8 silver-plated brass contacts for durability and conductivity. Solder termination method secures long-lasting conductor joints. Rated 60V, 5A for low-voltage control and power circuits. Polyamide housing offers chemical and electrical protection.
Wide operating temperature of -40°C to 85°C supports industrial environments. Screw coupling mating allows secure mechanical locking. Compact 18.5 mm diameter shell facilitates flexible cable routing. Ideal for automation sensor cabling and actuator connections.
Manufactured in Germany ensuring high quality and performance standards.
Discover more Industrial Circular Connectors and related components in the Electronics & Electricals category on EnvMart for all your automation, manufacturing, and control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for 60 volts and 5 amps, suitable for low-voltage power and signal circuits.
It features a solder termination method, which ensures a secure and low-resistance connection.
The operating temperature range is from -40°C to 85°C, making it suitable for extreme conditions.
The shell diameter is 18.5 mm, which supports compact panel and cable routing.
The housing is made of polyamide, while the contacts are silver-plated brass, providing corrosion-resistant conductivity.
This model has 8 contacts, designed for robust signal and power transmission.
It uses a screw mating type, ensuring a mechanically secure connection that resists vibration.
This connector is manufactured in Germany, ensuring high quality and performance standards.
The connector has an IP40 rating, providing protection against solid objects larger than 1 mm, but no water resistance.
It is suitable for industrial sensor and actuator cabling, control-panel loom connections, and low-voltage power distribution in machinery.
This connector is classified as an M16 size, which is common in industrial applications.
It supports low-voltage power and signal circuits, making it ideal for various automation systems.
