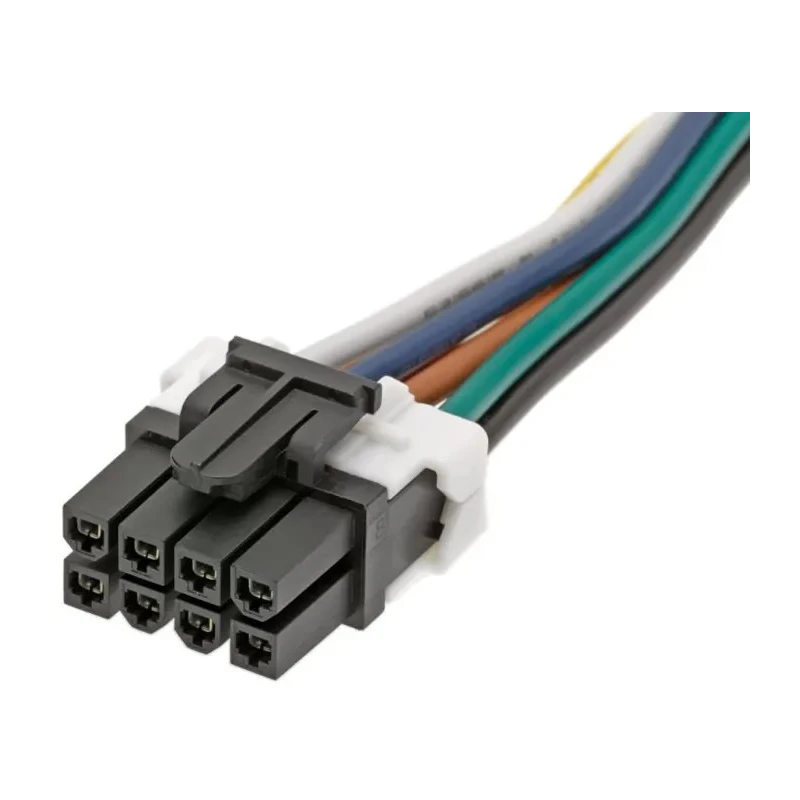

Molex Wire to Board Cable 8 Way Female Mini-Fit TPA2, 600V, Nylon Jacket, 150 mm
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600, 600V ac |
| Brand | Molex |
| Model | TPA2 |
| Cable Length | 150mm |
| Series | 45135 |
| Jacket Material | Nylon |
| Standards/Approvals | TUV- R72081037, UL- E29179, CSA LR19980 |
| Connector Type A | Mini-Fit TPA2 |
| Connector Gender A | Female |
| Number of Contacts A | 8 |
| Number of Rows A | 2 |
Key Features
- Constructed with UL1061 discrete wires for reliable electrical connections.
- Multi-coloured cables ease identification and correct connection.
- Pin to pin mapping reduces engineering time and ensures accuracy.
- Fully isolated contacts protect against damage from mishandling.
- Positive lock and TPA retainer secure the connection and prevent terminal back-outs.
- Rated for voltage up to 600V AC for versatile applications.
- Compatible with Series 5566 and 5569 Mini-Fit Jr headers and 5559 plug housings.
- Designed for industrial, automotive, and automation applications.
Product Description
Molex 45135-0801 Wire to Board Cable is a high-quality electrical cable assembly designed with 8 Way Female Mini-Fit TPA2 connectors on both ends and a cable length of 150 mm enclosed in a durable nylon jacket. Rated for 600V AC, this cable meets TUV-R72081037, UL-E29179, and CSA LR19980 standards, ensuring safety and performance in demanding environments.
This cable assembly uses UL1061 discrete wires with multi-coloured insulation that simplifies wiring and reduces errors. The pin to pin mapping from connector to PCB header helps in efficient prototyping and production by minimizing engineering effort and cost.
The Mini-Fit TPA2 connectors feature fully isolated contacts and a Terminal Position Assurance (TPA) retainer with a secondary locking feature, which safeguards the contacts from backing out or damage caused by vibration and mishandling. Positive locks on connector housings guarantee secure mating, preventing accidental disconnections.
Ideal for a broad range of applications including data and communications equipment, automotive harnesses (non-sealed and in-device use), and industrial automation systems, this cable supports robust and reliable electrical connections.
Constructed using UL1061 discrete wires to ensure electrical compliance. Colour-coded cables facilitate proper connection setup. Pin to pin wire mapping enhances design accuracy and efficiency. Fully isolated contacts protect connectors during handling and use.
Positive lock and TPA retainer provide secure connector mating and terminal retention. Voltage rating up to 600V AC suitable for multiple industrial applications. Standards compliance includes TUV, UL, and CSA certifications.
Compatible with Molex Mini-Fit Jr headers and plug housings.
This Molex wire-to-board cable is manufactured in China and comes new, ready for installation in electrical assemblies. It provides a reliable, industry-certified connection solution tailored for multiple sectors including industrial, automotive, and communication equipment manufacturing.
For additional connector and cable assembly solutions, explore the Molex range on EnvMart's Electronics & Electricals platform.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This wire to board cable is rated for a voltage of up to 600V AC, making it suitable for various industrial applications.
The cable length of this model is 150 mm, providing flexibility for various installation needs.
This cable features 8 Way Female Mini-Fit TPA2 connectors on both ends, ensuring secure and reliable connections.
It complies with TUV-R72081037, UL-E29179, and CSA LR19980 standards, ensuring safety and performance in demanding environments.
The jacket of this cable is made from nylon, providing durability and protection for the wires inside.
The connector on this cable has 8 contacts, arranged in 2 rows, facilitating efficient electrical connections.
Yes, this cable is designed for various applications including automotive harnesses, making it versatile for different sectors.
The cable includes positive locks on the connector housings and a TPA retainer that prevents terminal back-outs and ensures secure mating.
This wire to board cable is manufactured in China, ensuring compliance with international standards.
This cable is ideal for data and communications equipment, automotive harnesses, and industrial automation systems.
The pin to pin mapping feature reduces engineering time and ensures accuracy in connections, simplifying prototyping and production.
The brand of this wire to board cable is Molex, known for its reliable electrical components.
