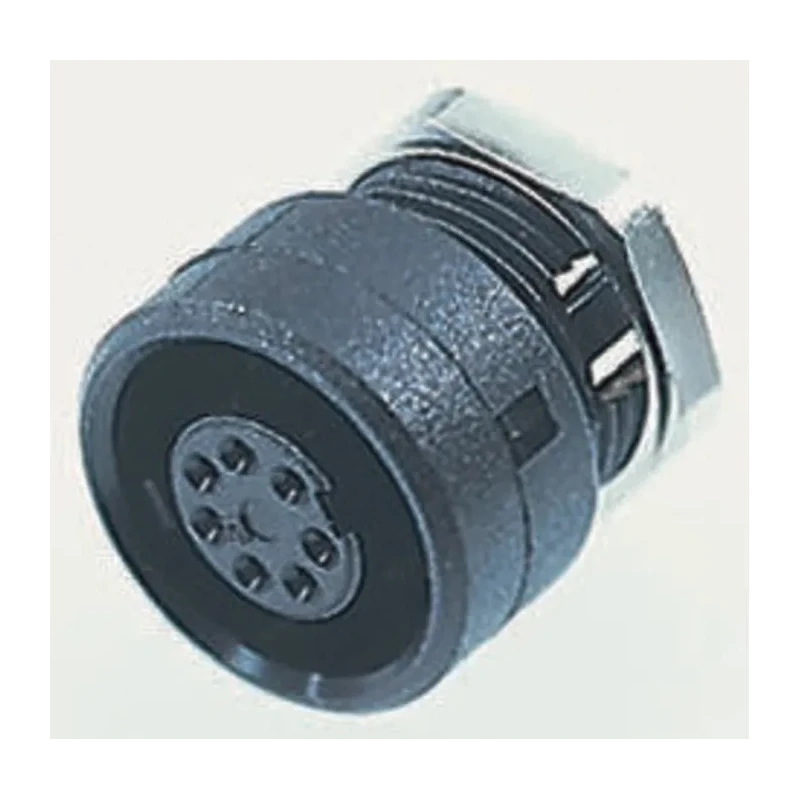

binder Subminiature Circular Connector 7 Contacts Panel Mount Socket Female 125V IP40 710 Series 09.9478.00.07
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 1A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Bronze |
| Series | 710 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 7 |
| Contact Plating | Gold |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Shell Size | 12 mm |
| Mating Type | Screw-On |
| Connector Size | Subminiature |
| Plug/Socket | Socket |
Key Features
- Features bayonet joint with screw-on mating type for secure connection.
- Current rating is 1 ampere suitable for low power applications.
- Constructed with metal housing and gold-plated bronze contacts for durability.
- Operates reliably within temperature range -40°C to 85°C.
- Designed with coding lug for distortion protection and strain relief via ferrule.
- Connector size is subminiature with a shell size of 12 mm.
- Meets IP40 ingress protection rating when mated.
- Orientation is straight for easy panel mounting installation.
Product Description
binder 09.9478.00.07 subminiature circular connector from the 710 series features 7 contacts designed for panel mount applications. This female socket connector provides a secure and reliable electrical connection at 125V, suitable for industrial and electronic components.
The connector features a bayonet joint with screw-on mating type ensuring a secure fit and preventing misalignment. It supports a current rating of 1 ampere, ideal for low power circuits and signal transmission.
Constructed with a metal housing and gold-plated bronze contacts, this connector offers excellent durability and corrosion resistance. Its coding lug distortion protection guarantees proper positioning, while strain relief is provided via a ferrule to enhance connection reliability.
Operating temperature ranges from -40°C to 85°C, suitable for diverse industrial environments. The connector size is subminiature with a 12 mm shell diameter, and it has a straight orientation to facilitate easy panel mounting.
The IP40 rating provides protection against solid objects larger than 1 mm, making it suitable for many indoor industrial and electronic applications. Termination is by solder, ensuring solid electrical contact and performance.
Bayonet joint with screw-on mating type for secure connections. Current rating of 1A for low power applications. Metal housing with gold-plated bronze contacts for durability. Operating temperature from -40°C to 85°C. Distortion protection via coding lug and strain relief ferrule.
Subminiature connector size with 12 mm shell diameter. IP40 ingress protection when mated. Straight orientation for panel mount installation. Solder termination type for robust connection. Manufactured in Germany ensuring high quality standards.
This circular connector is ideal for use in industrial tools, electronic equipment, and power distribution systems. It provides reliable electrical connections in manufacturing, automation, control, and instrumentation applications.
Explore our wide range of Industrial Circular Connectors in EnvMart to find compatible parts and accessories for your electrical and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this connector is 1 ampere, making it suitable for low power applications.
This model has a voltage rating of 125V, suitable for various industrial and electronic components.
The connector meets an IP40 ingress protection rating when mated, providing protection against solid objects larger than 1 mm.
It operates reliably within a temperature range of -40°C to 85°C, suitable for diverse industrial environments.
The housing is constructed from metal, and the contacts are made of gold-plated bronze for enhanced durability and corrosion resistance.
This model features 7 contacts, designed for panel mount applications.
The termination type for this connector is solder, ensuring solid electrical contact and performance.
The shell size of this model is 12 mm, making it a subminiature connector.
It is designed for panel mount installation, featuring a straight orientation for ease of use.
The connector features a bayonet joint with screw-on mating type for secure connections and to prevent misalignment.
This connector is manufactured in Germany, ensuring adherence to high quality standards.
It is ideal for use in industrial tools, electronic equipment, and power distribution systems, providing reliable electrical connections.
