C & K IP50 Black Tactile Switch Button 0.8 mm SPST 50mA 32 V dc Surface Mount KSR222G LFS

Name: C & K IP50 Black Tactile Switch Button 0.8 mm SPST 50mA 32 V dc Surface Mount KSR222G LFS
Brand: C & K
SKU: 164910



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	India
Brand	C & K
Height	2.5mm
Length	6mm
Model	KSR222G LFS
IP Rating	IP50
Width	3.8mm
Mount Type	Surface
Series	KSR
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-40°C
Terminal type	Surface Mount
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Black
Actuator Length	0.8mm
Contact DC Voltage	32V dc
Actuator Style	Button
Actuator Orientation	Top
Switch Contact Current	50mA
Operating Force	2N
Mechanical Life	200000Operations
2 types of contacts available	Gold (1 VA) or silver (0.2 VA)

Key Features

The switch features a momentary operation with a black rubber button actuator.
Compact dimensions include 6mm length, 3.8mm width, and 2.5mm height.
Operational temperature ranges from -40°C up to 125°C providing robust performance.
The switch offers a mechanical life of 200,000 operations ensuring reliability.
IP50 rated sealing offers moderate protection against dust infiltration.
Actuator style is button type oriented on top with an operating force of 2N for precise tactile feedback.
Designed for surface mount technology with SPST contact configuration appropriate for automotive and industrial electronics applications.
Available with gold or silver contact types supporting low-level switching requirements.

Product Description

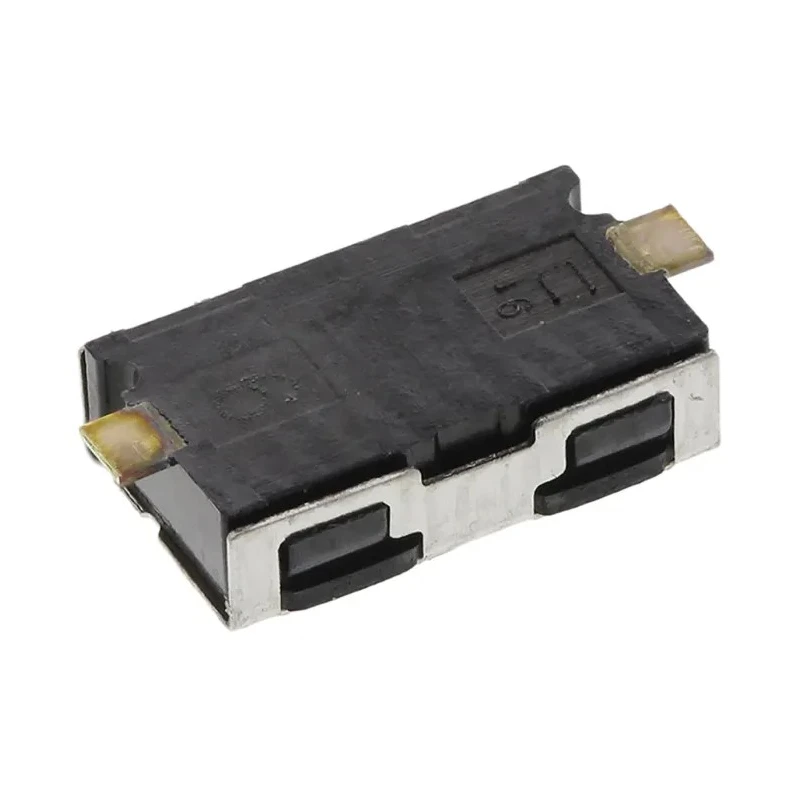

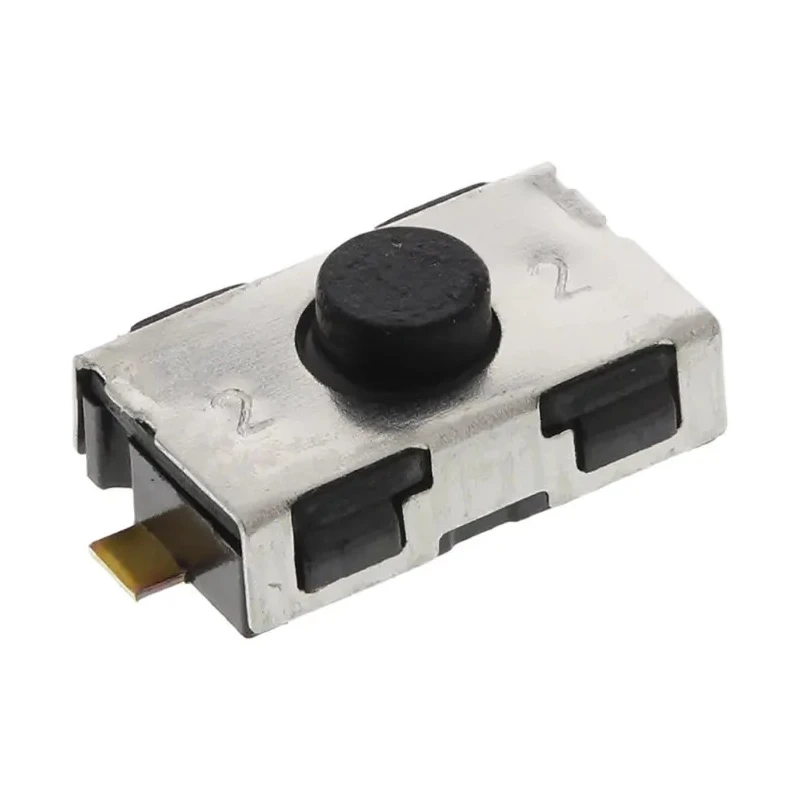

C & K KSR222G LFS is a precision IP50 sealed tactile switch button designed for surface mount technology with a 0.8 mm black actuator button. It features a Single Pole Single Throw (SPST) contact configuration rated at 50mA for 32 V dc, delivering reliable momentary switch operation suitable for diverse electronic devices.

The switch body has compact physical measurements of 6 mm length, 3.8 mm width, and 2.5 mm height, making it ideal for applications requiring minimal space.

Operating temperature range spans from -40°C to 125°C, allowing performance stability in harsh environmental conditions. The momentary button actuator requires an operating force of 2N, providing responsive tactile feedback for users.

This tactile switch boasts a mechanical lifespan of 200,000 operations, reinforcing its suitability for industrial, automotive, telecommunications, and computing equipment. It supports surface mounting using gullwing terminations and offers contact options in gold (1 VA) or silver (0.2 VA), enabling flexibility for switching low-level signals.

IP50 sealing ensures protection against dust ingress, making the switch reliable in moderately dusty environments. The switch is built to RoHS standards, ensuring compliance with environmental directives. Typical application areas include automotive electronics, cellular phones and accessories, industrial control units, and computer/network equipment.

This compact tactile switch enhances product functionality by providing reliable momentary switching with dependable contact quality. Explore more Tactile Switch options within the Electronics & Electricals category on EnvMart for suitable solutions.
