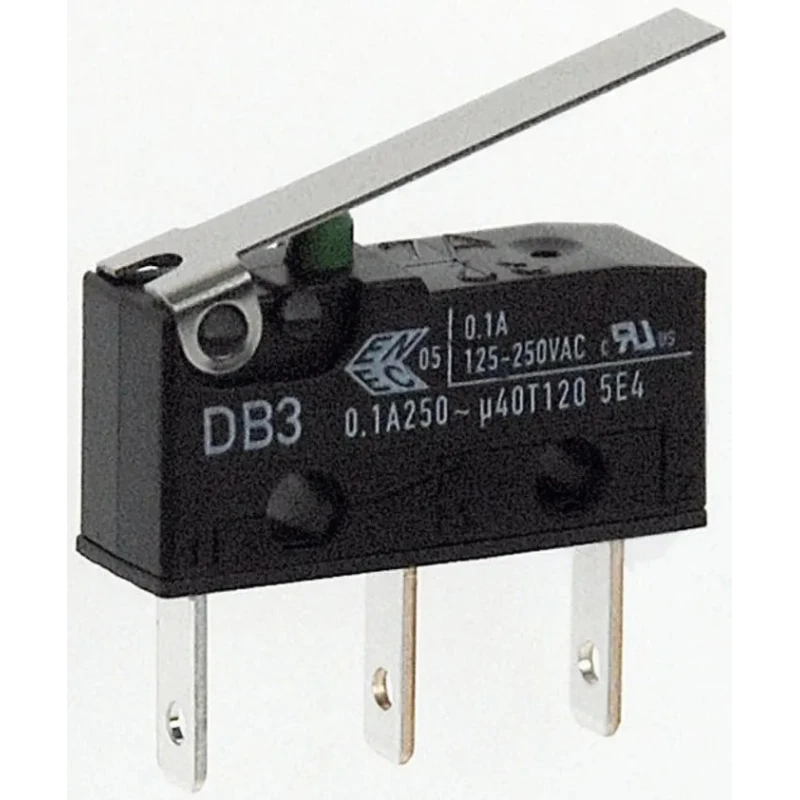

ZF Hinge Lever Micro Switch with Tab Terminal, 100mA, 250 V AC, SPDT, IP50 DB3C-B1LC
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ZF |
| Model | DB3C-B1LC |
| IP Rating | IP50 |
| Housing Material | Polyamide, Polyethylene Terephthalate |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Switch Contact Current | 100mA |
| Operating Force | 0.49N |
| Mechanical Life | 15000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DB Subminiature |
Key Features
- This micro switch features a hinge lever actuator and tab terminal connections.
- It supports a contact current of 100 mA and an AC voltage rating of 250 V.
- The contact configuration is Single Pole Double Throw (SPDT) for versatile switching.
- The housing is made of durable polyamide and polyethylene terephthalate materials.
- It has an IP50 rating, suitable for protection against dust ingress.
- The operating force is 0.49 Newtons, enabling sensitive actuation.
- It operates reliably in temperatures from -40°C up to 120°C.
- The switch type is DB subminiature with a mechanical life expectancy of 15 million operations.
Product Description
The ZF DB3C-B1LC Hinge Lever Micro Switch with Tab Terminal delivers reliable and precise switching performance for various industrial and automation applications. Rated for 100mA contact current at 250 V AC and single pole double throw (SPDT) configuration, this micro switch is ideal for controlling low power circuits where compactness and durability are key.
The hinge lever actuator provides smooth mechanical operation while the robust tab terminal ensures secure electrical connections. The housing construction with polyamide and polyethylene terephthalate offers mechanical strength and flame resistance (UL 94V-0 rating). It also carries an ingress protection rating of IP50, protecting internal components from dust exposure.
With an operating force of 0.49N, the switch can be actuated sensitively and is suited for precise control inputs. It withstands a wide temperature range from -40°C to 120°C, supporting use in harsh environments including industrial automation, electrical switchgear, and control panels.
The DB subminiature microswitch design ensures a compact footprint with a long mechanical lifespan of 15 million operations, minimizing maintenance needs. Quality manufacturing in Germany assures adherence to international standards including RoHS compliance.
This micro switch features a hinge lever actuator and tab terminal connections. It supports 100mA contact current and 250V AC voltage rating. SPDT contact configuration enables versatile switching applications. Durable polyamide and PET housing with IP50 ingress protection.
Operating force of 0.49N for sensitive actuation. Functions reliably between -40°C and 120°C ambient temperatures. Mechanical life of 15 million operations ensures longevity. Manufactured in Germany with RoHS compliance.
These features make the ZF DB3C-B1LC switch an excellent choice for industrial controls, automation systems, and electronic devices requiring robust and precise microswitches. Explore our extensive range of Micro Switches and related components to find solutions tailored to your electrical application needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch supports a maximum contact current of 100 mA.
It has a contact AC voltage rating of 250 V.
This model operates reliably between -40°C and 120°C.
It features a hinge lever actuator for smooth mechanical operation.
The switch has an ingress protection rating of IP50, which provides protection against dust ingress.
It has a mechanical life expectancy of 15 million operations.
The housing is made of polyamide and polyethylene terephthalate materials.
The contact configuration is Single Pole Double Throw (SPDT), allowing for versatile switching applications.
It features tab terminal connections for secure electrical connections.
It is compliant with RoHS standards, ensuring it meets environmental regulations.
The operating force required for actuation is 0.49 Newtons.
This micro switch is manufactured in Germany.
