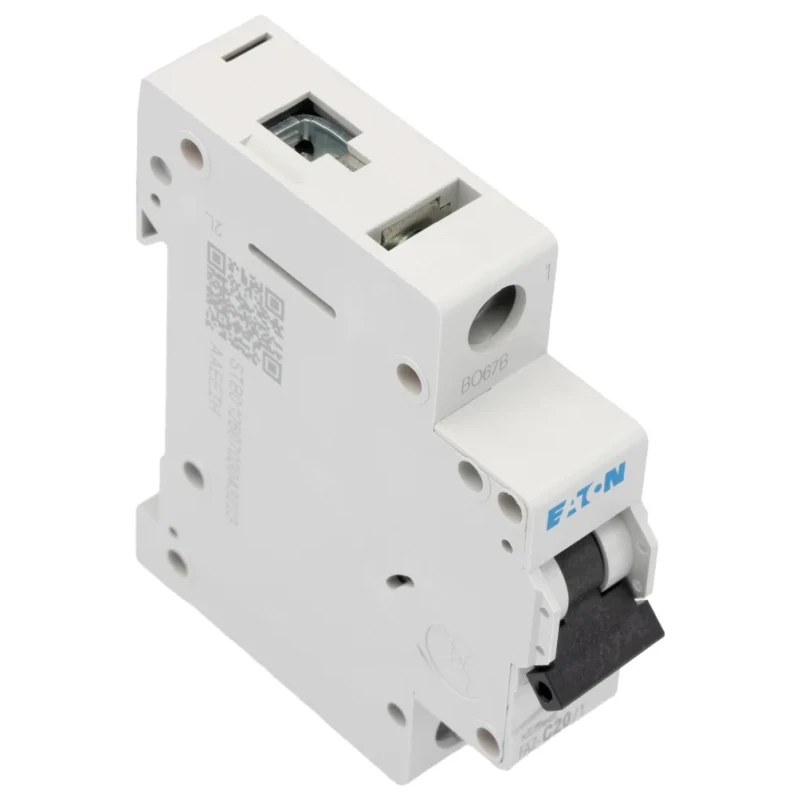

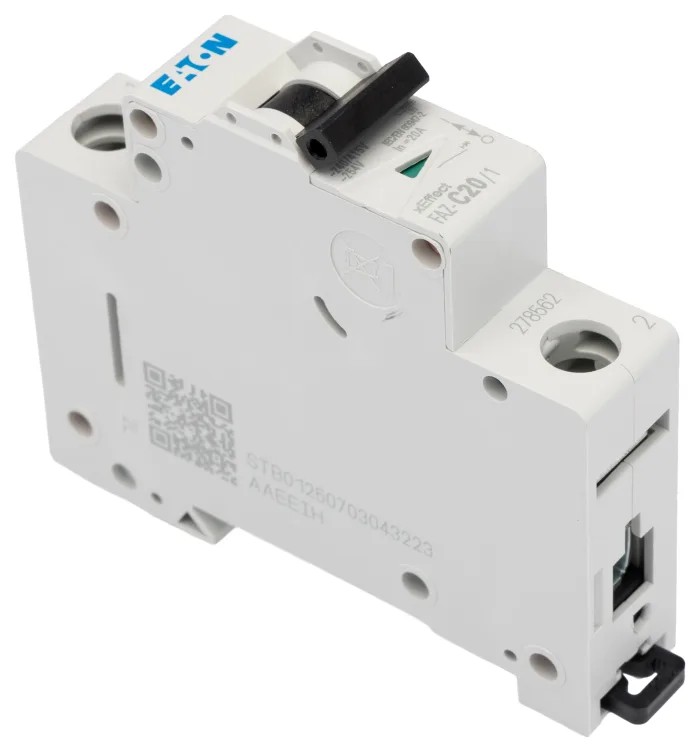

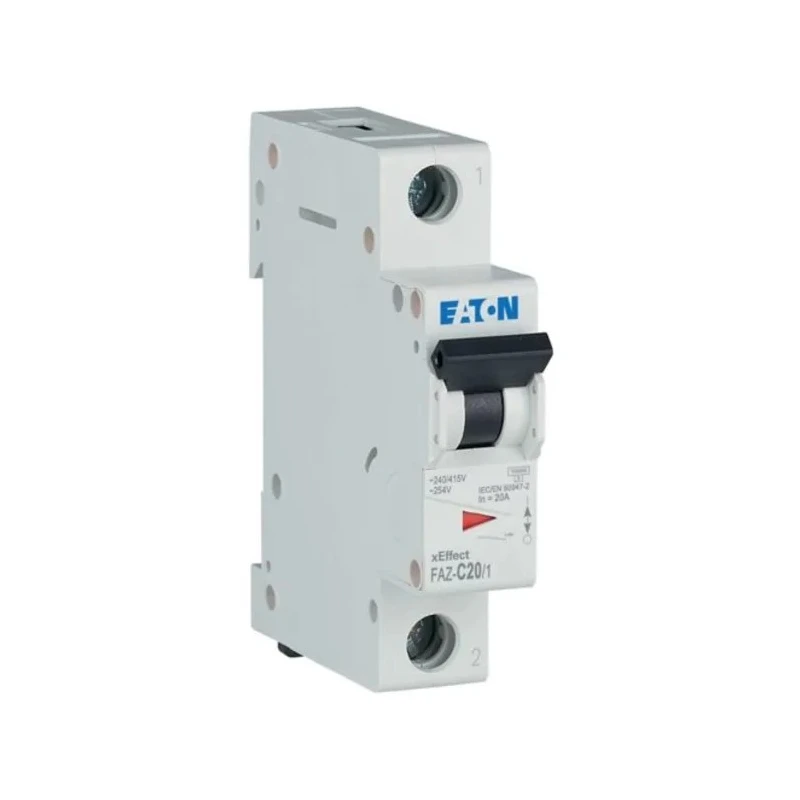

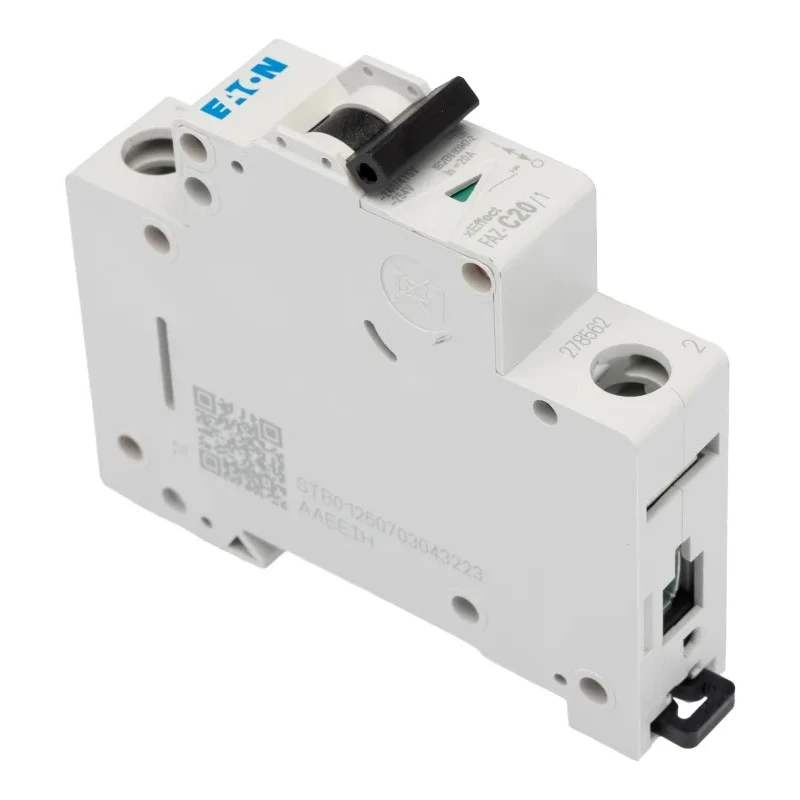

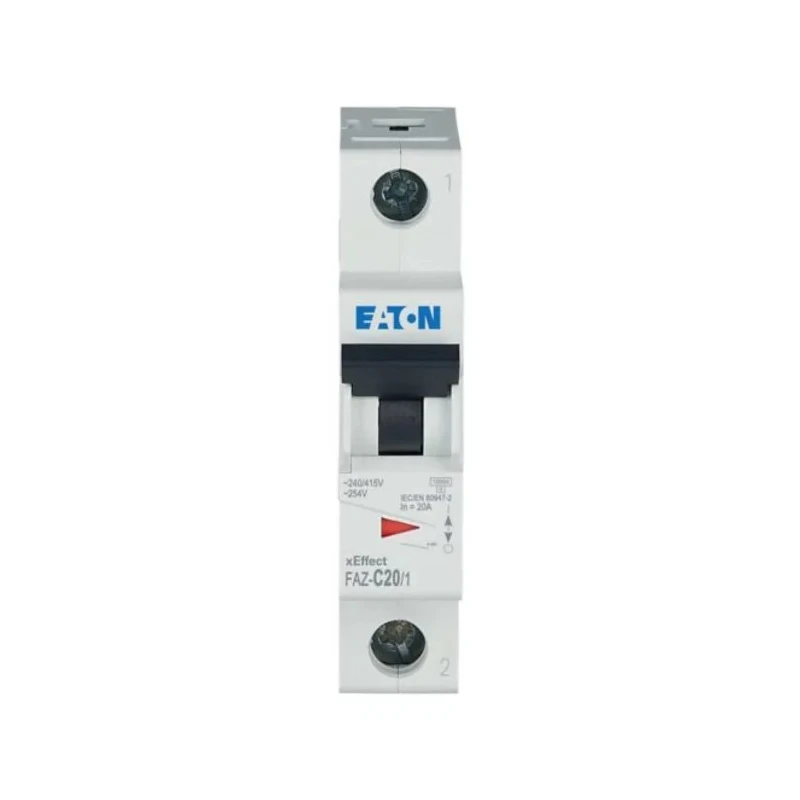

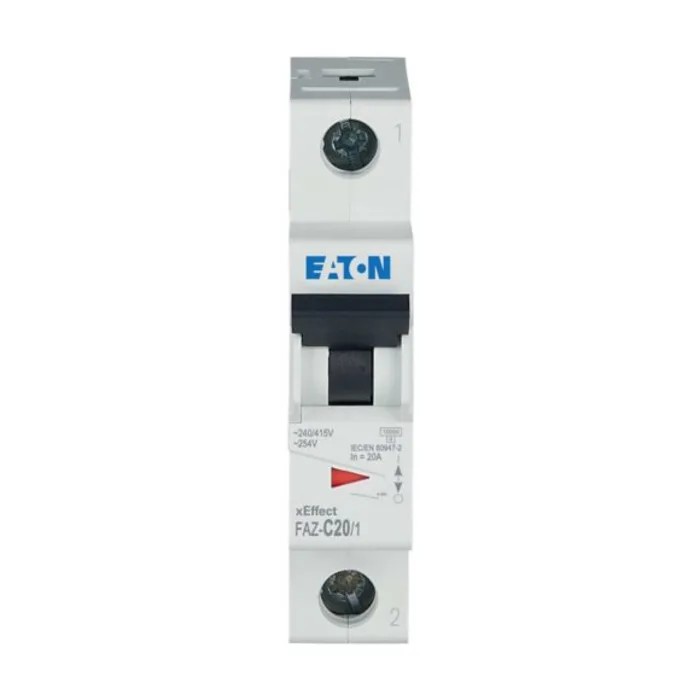

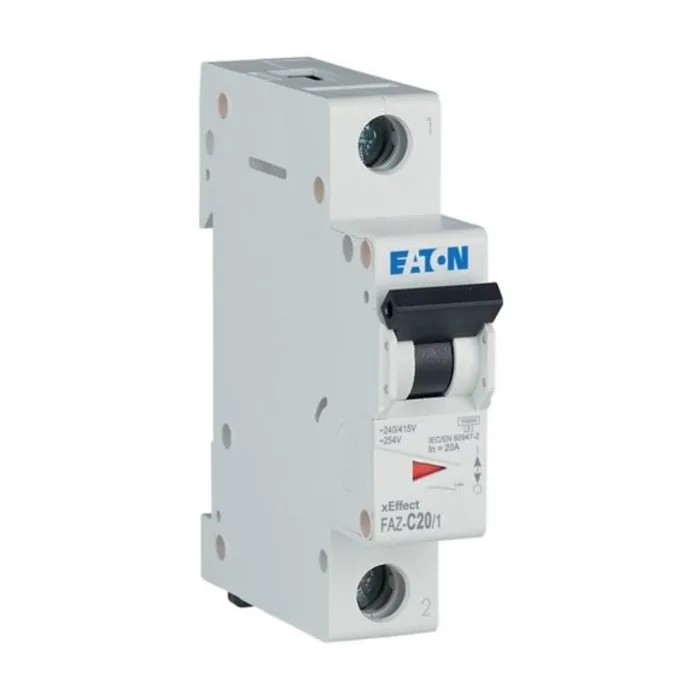

Eaton xEffect Miniature Circuit Breaker 1-Pole 20A Type C 230V AC 10 kA Breaking Capacity 278562 FAZ-C20/1

Eaton 278562 FAZ-C20/1 Miniature Circuit Breaker is a high-quality 1-pole device rated for 20A current and 230V AC voltage, designed for protecting electrical circuits in industrial, commercial, and residential settings.

This MCB features type C tripping characteristics, making it ideal for applications with moderate inrush currents such as industrial motors, transformers, and electrical boards. Its breaking capacity of 10kA at 230V AC ensures swift disconnection during severe fault conditions, thus preventing damage to connected equipment.

The device boasts an ultra-slim design with dimensions of 75.5 mm height, 17.7 mm width, and 80 mm depth, allowing installation in compact spaces. It fits securely on a standard top-hat DIN rail, facilitating quick mounting in distribution panels.

The thermal-magnetic trip mechanism provides reliable instantaneous and thermal protection. The IP20 rating safeguards against accidental contact with tools or fingers, enhancing user safety during operation. The mechanical endurance of 10,000 switching cycles guarantees a long operational life, while the broad operating temperature range from -25°C to +75°C supports use in harsh environmental conditions.

The front toggle switch provides a clear visual indicator of contact status, improving operational clarity. Weighing approximately 111 grams, the breaker adds minimal mass to electrical assemblies.

This miniature circuit breaker complies with IEC 60947-2 standards, ensuring international safety and performance benchmarks. Rated for 230V AC voltage with thermal magnetic tripping mechanism. Type C tripping characteristics suitable for high inrush currents.

Breaking capacity of 10kA ensures safety during fault conditions. Compact dimensions of 75.5 mm height, 17.7 mm width, and 80 mm depth. Mounts easily on standard DIN rail for quick installation. IP20 protection rating provides safe handling against foreign objects.

Mechanical lifespan of 10,000 switching cycles ensures long-term durability. Operating temperature range from -25°C to +75°C suits harsh environments. Weight is approximately 111 grams for minimal circuit load. Clear front toggle switch indicates contact position visually.

Ideal for industrial, manufacturing, HVAC, and electrical automation applications, this Eaton xEffect MCB offers robust circuit protection and ease of maintenance. Explore more Miniature Circuit Breakers and Eaton products on EnvMart for comprehensive electrical safety solutions.
