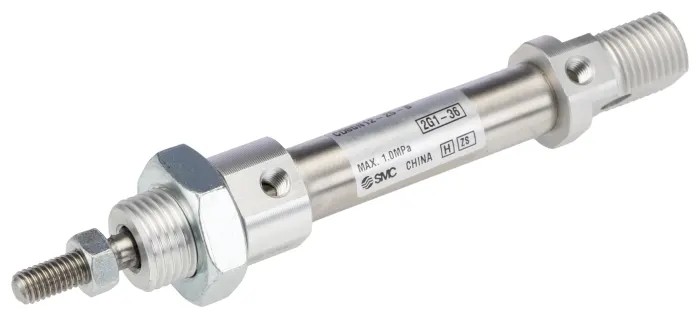

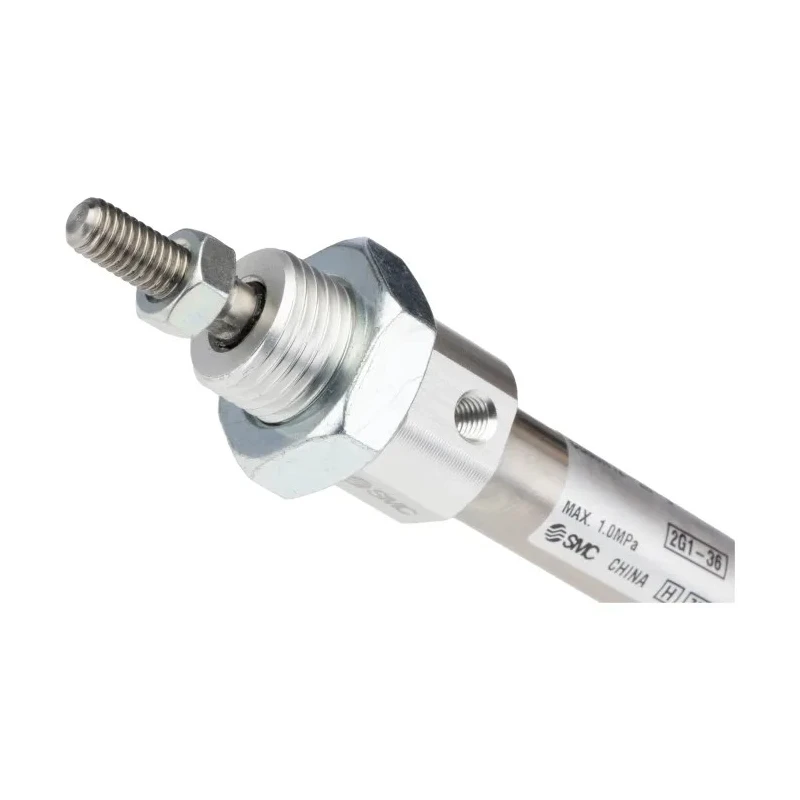

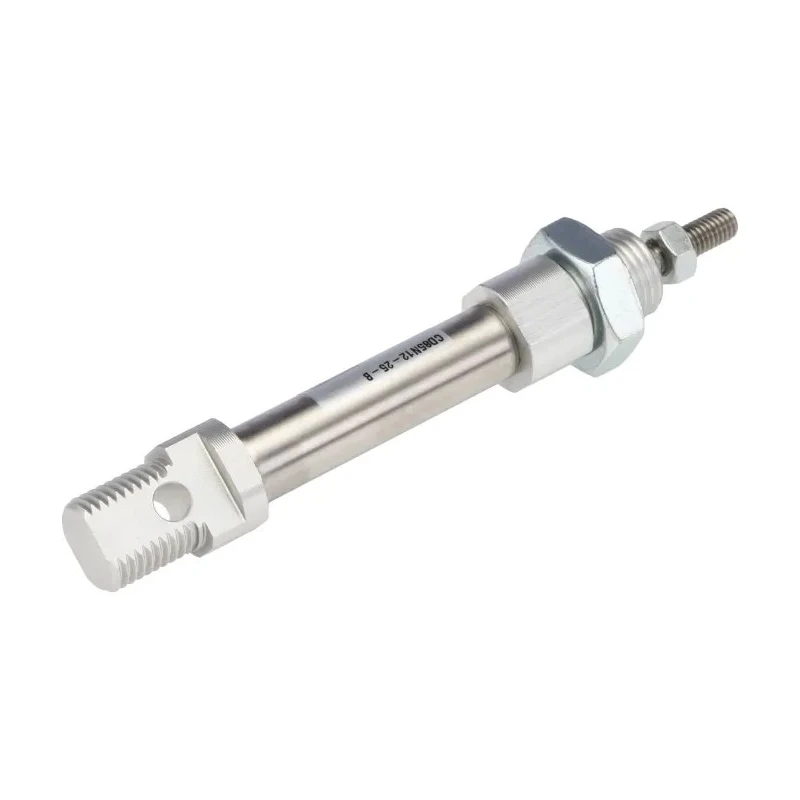

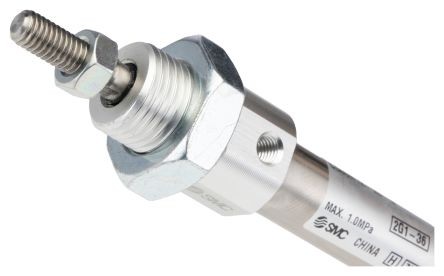

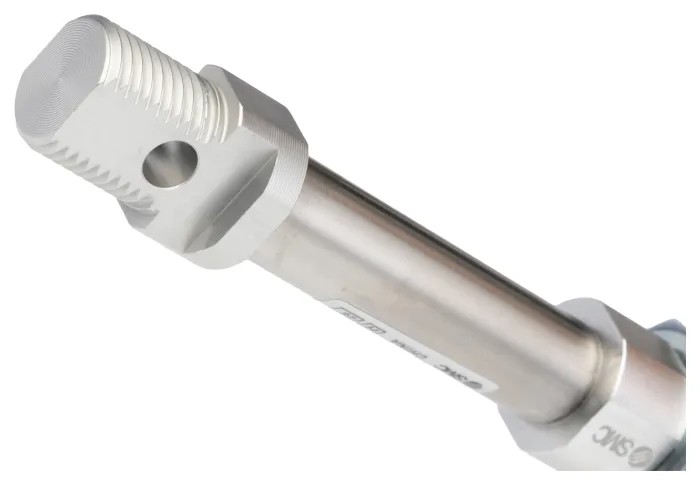

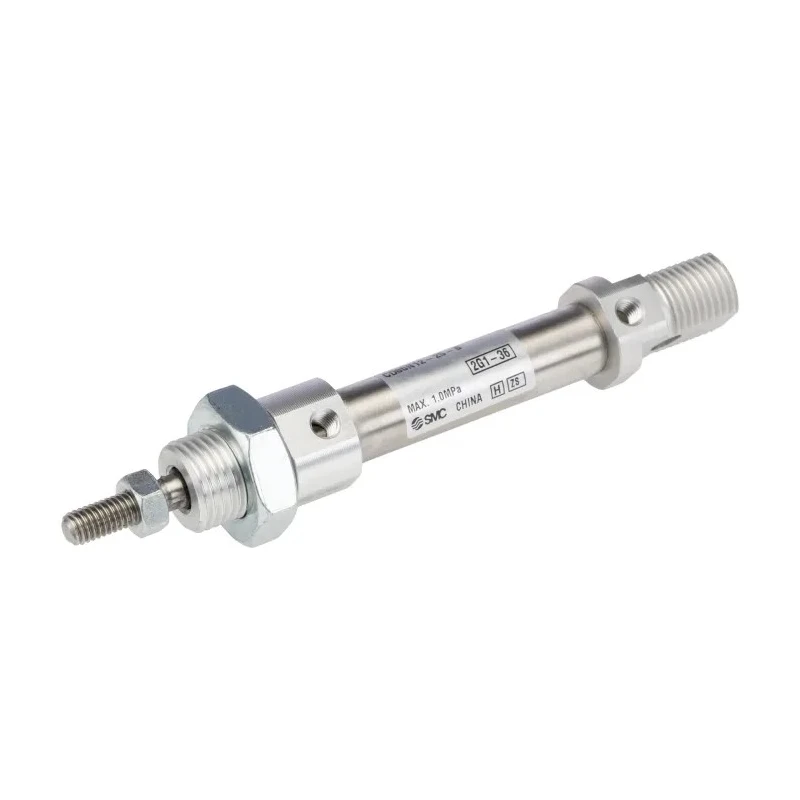

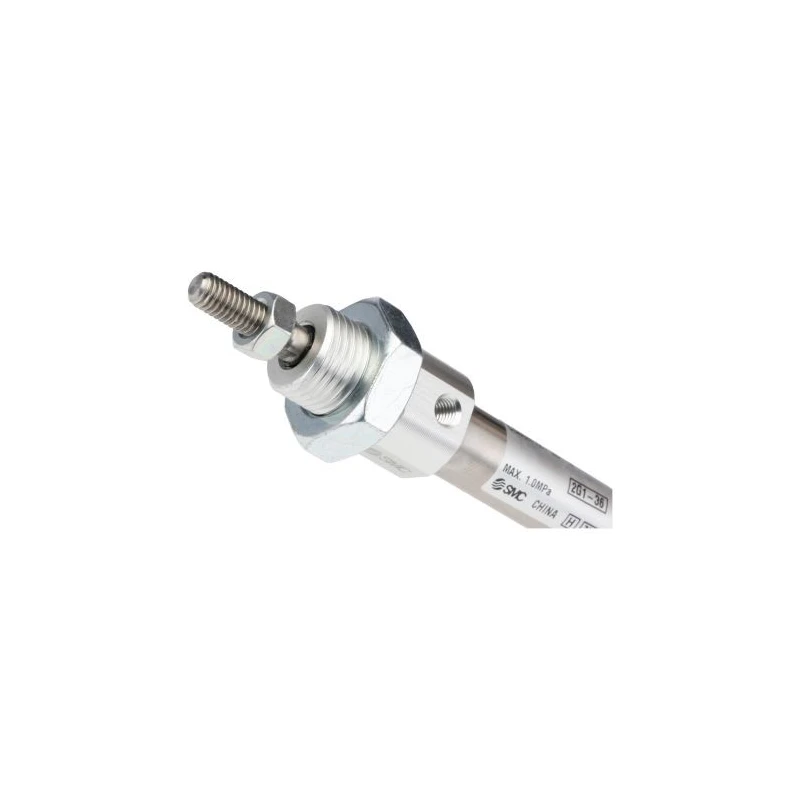

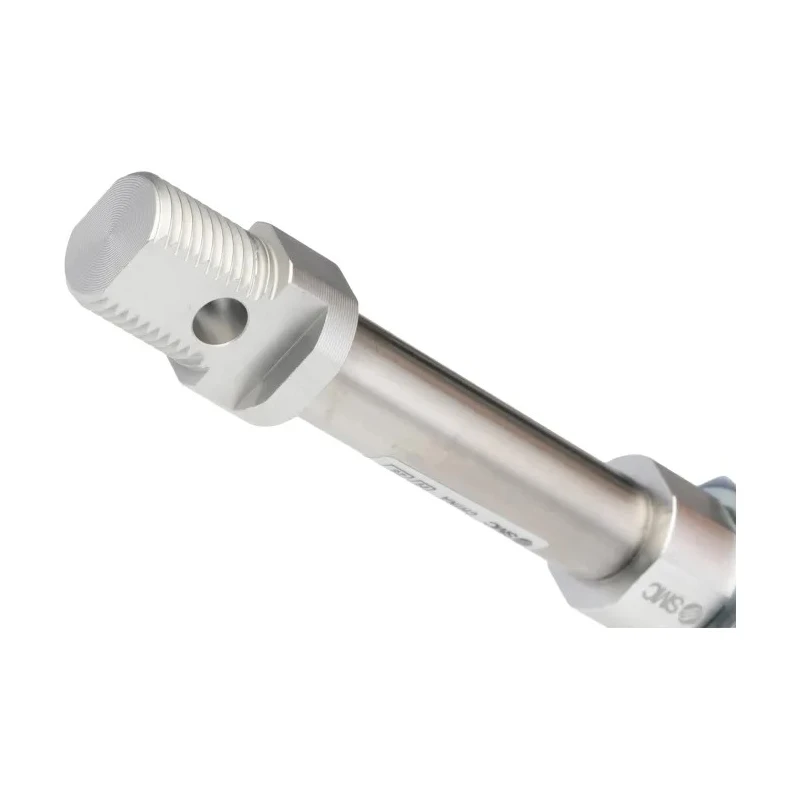

SMC Pneumatic Piston Rod Cylinder 25 mm Stroke, Double Acting, Aluminium Alloy Body CD85
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Length | 130mm |
| Model | CD85 |
| Mount Type | Clevis |
| Series | CD85 |
| Maximum Operating Temperature | +60°C |
| Stroke Length | 25mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 6432 |
| Cushioning Type | Rubber |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M6 |
Key Features
- Double acting operation enables controlled bidirectional motion.
- Rubber bumper cushioning reduces impact and noise effectively.
- Clevis mount design simplifies pivoting attachments on machinery.
- Single male piston rod with M6 metric thread allows secure mechanical coupling.
- Maximum piston speed of 1500 mm/s supports high-cycle operation.
- Rated operating temperature up to +60°C for moderate environments.
- Aluminium alloy body offers lightweight construction with corrosion resistance.
- Complies with ISO 6432 standard for dimensional interchangeability.
Product Description
SMC CD85N12-25-B Pneumatic Piston Rod Cylinder features a 25 mm stroke length and an aluminium alloy body engineered for lightweight yet robust linear actuation in pneumatic systems. This double acting cylinder operates bidirectionally, providing precise push and pull movements in industrial, manufacturing, and automation environments.
The single male piston rod is threaded with M6 metric standard, facilitating straightforward mechanical attachments through clevis mounting. Rubber cushioning absorbs shock and noise during operation, extending the lifespan of the actuator and connected equipment.
Designed to comply with ISO 6432 standards, this cylinder ensures dimensional compatibility with other compact pneumatic components. It operates safely up to +60°C, making it suitable for general industrial applications that require moderate temperature tolerance.
The maximum piston speed of 1500 mm/s makes it capable of supporting high-cycle operations common in pick-and-place machinery, test fixture positioning, and fluid control valve actuation. The aluminium alloy body offers excellent corrosion resistance along with reduced weight for improved system efficiency.
Double acting operation enables controlled bidirectional motion. Rubber bumper cushioning reduces impact and noise effectively. Clevis mount simplifies pivot attachments on actuators. Single male piston rod with M6 metric thread for precise mechanical coupling.
Maximum piston speed 1500 mm/s supports high-cycle applications. Rated operating temperature up to +60°C for moderate industrial environments. Compact aluminium alloy construction offers lightweight durability. ISO 6432 standard compliance for dimensional interchangeability.
Suitable for pick-and-place stations, valve actuation, and fluid handling systems. Compact size and 25 mm stroke length ideal for automated linear motion control.
This Pneumatic Piston Rod Cylinder is widely used in various industrial sectors including manufacturing assembly lines, fluid power systems, mechanical handling equipment, and pneumatic automated tooling. It ensures reliable performance in diverse mechanical, laboratory, HVAC, and commercial applications.
Explore more pneumatic cylinders and actuators at EnvMart for comprehensive fluid power solutions adapted to your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this pneumatic piston rod cylinder is 25 mm.
It has a maximum operating temperature of +60°C, making it suitable for moderate industrial environments.
This model operates as a double acting cylinder, enabling controlled bidirectional motion.
The body of this pneumatic cylinder is constructed from aluminium alloy, offering lightweight durability and corrosion resistance.
The maximum piston speed is 1500 mm/s, which supports high-cycle operations.
This unit features a clevis mount design, which simplifies pivoting attachments on machinery.
The piston rod has a male thread size of M6, adhering to metric standards for secure mechanical coupling.
It complies with ISO 6432 standards, ensuring dimensional interchangeability with other compact pneumatic components.
This cylinder uses rubber cushioning to effectively reduce impact and noise during operation.
The length of this cylinder is 130 mm, making it compact for various applications.
It is suitable for applications such as pick-and-place stations, valve actuation, and fluid handling systems.
This model features a single male piston rod, which allows for straightforward mechanical attachments.
