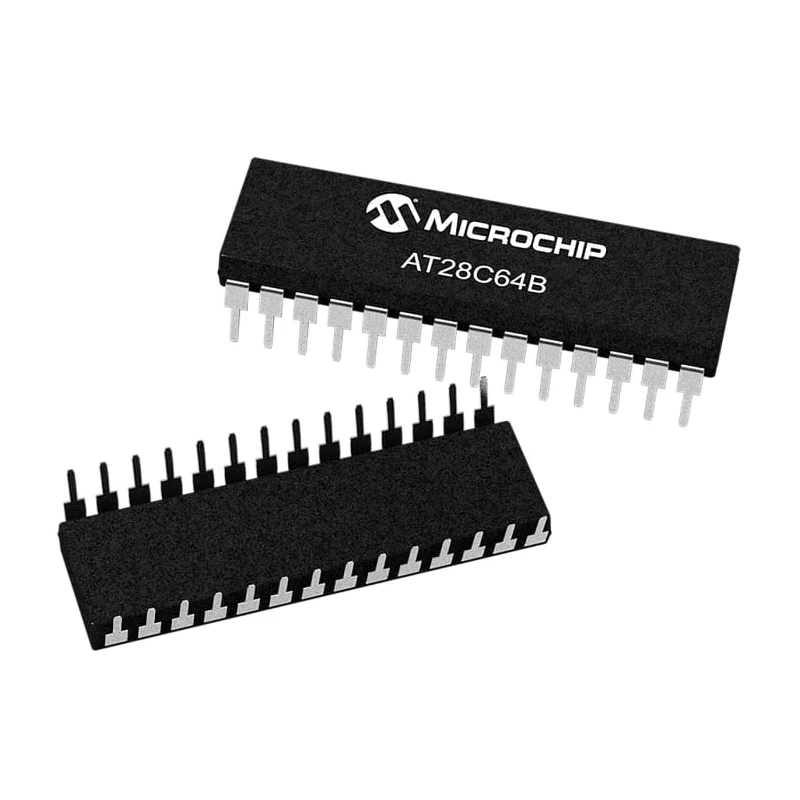

Microchip 64 kB Parallel EEPROM 150 ns 5 MHz 28-Pin PDIP Through Hole AT28C64B-15PU

Microchip AT28C64B-15PU is a high-quality parallel EEPROM memory chip with a total capacity of 64 kB. Designed in a 28-pin PDIP through hole package, it offers a maximum random access time of 150 ns and operates at a maximum clock frequency of 5 MHz. The device supports a parallel interface for rapid data access, making it suitable for various electronic and industrial applications.

This EEPROM supports an operating voltage range from 4.5 V to 5.5 V, ensuring compatibility with standard 5 V systems. The chip operates over a wide temperature range from -40°C to 85°C, allowing reliable use in harsh environments and industrial equipment.

With 8192 words organized as 8K x 8 bit and a data retention time of 10 years, the AT28C64B-15PU provides durable, non-volatile program and data storage for embedded applications. The device draws a low supply current of 40 mA, contributing to efficient power consumption.

The compact physical dimensions of 39.6 mm length by 14.7 mm width and through-hole PDIP form factor facilitate easy mounting on printed circuit boards. The microchip is well-suited for use in industrial systems, laboratory equipment, consumer electronics, and other environments requiring stable, parallel EEPROM memory storage.

Non-volatile parallel EEPROM with 64 kB capacity. 150 ns maximum random access time and 5 MHz max clock frequency. Wide temperature operation from -40°C to 85°C. Typical supply current of 40 mA at standard voltages. PDIP 28-pin package for through hole installation.

Organization of 8192 words x 8 bits per word. The Microchip AT28C64B-15PU 64 kB Parallel EEPROM is ideal for industrial and commercial electronics systems requiring robust, medium-capacity memory with fast parallel access.
