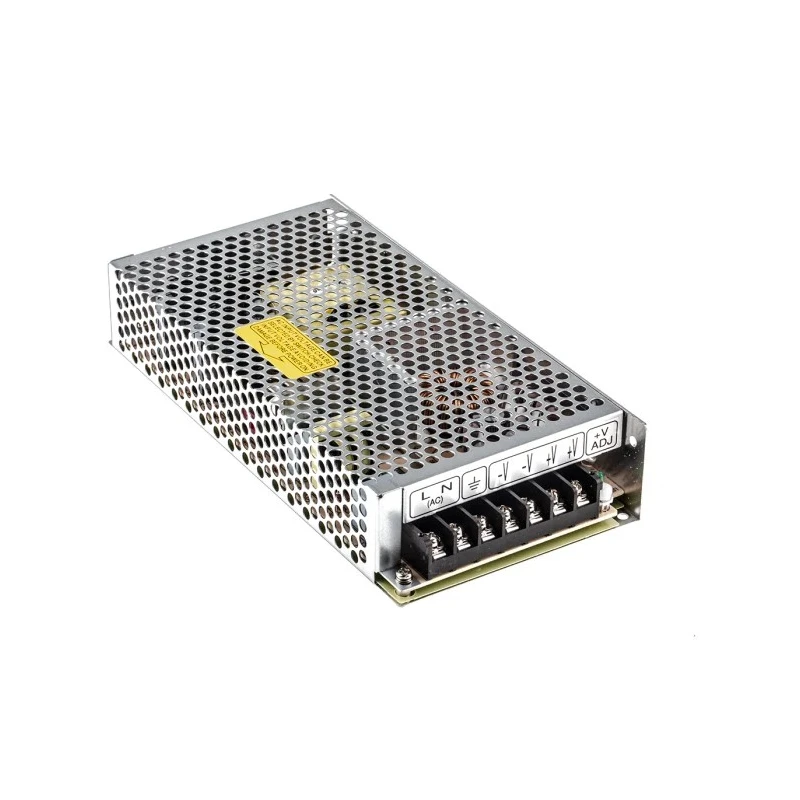

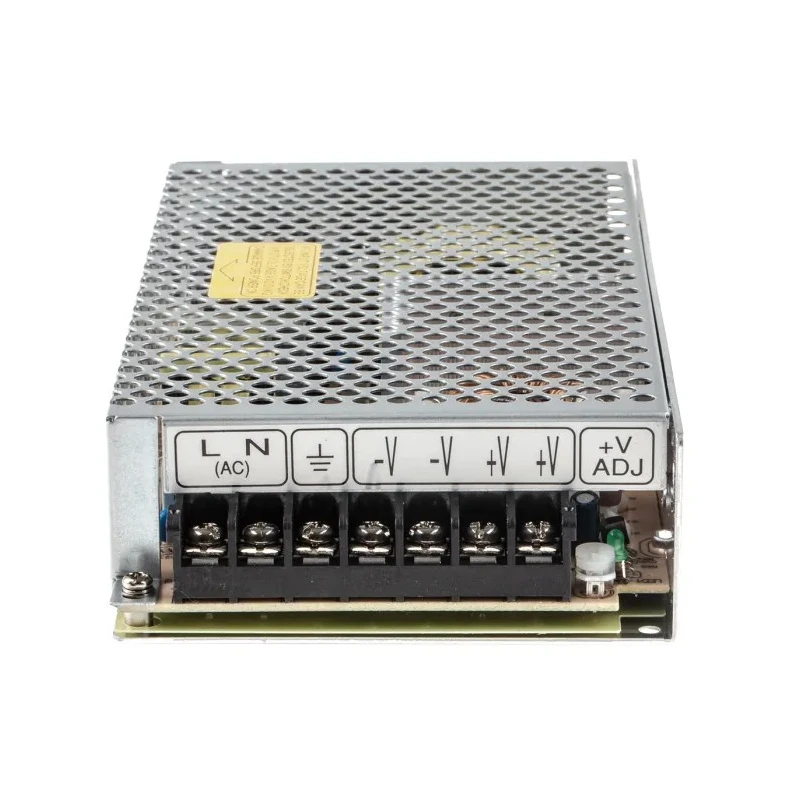

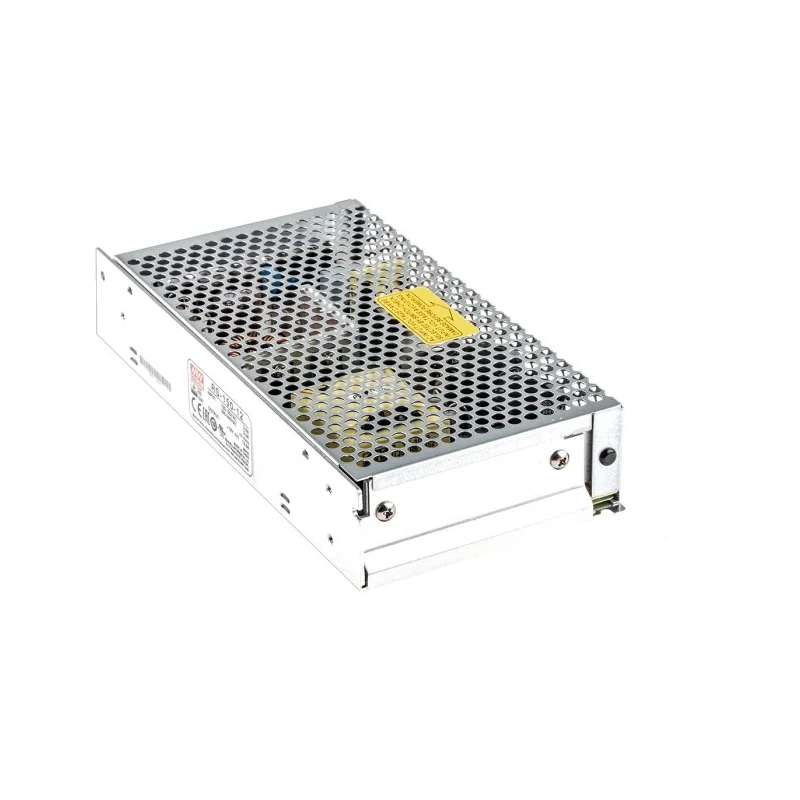

MEAN WELL RS-150-12 Switching Power Supply 12V DC 150W 12.5A Chassis Mount RS-150-12

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL RS-150-12 Switching Power Supply 12V DC 150W 12.5A Chassis Mount RS-150-12

Name: MEAN WELL RS-150-12 Switching Power Supply 12V DC 150W 12.5A Chassis Mount RS-150-12
Brand: MEAN WELL
SKU: 199929
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	150W
Efficiency	83%
Length	199mm
Model	RS-150-12
Depth	38mm
Gross Weight	700g
Width	38mm
Mount Type	Chassis
Series	RS-150
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Output Voltage	12V dc
SMPS Output Current	12.5A
Minimum Input Voltage	88V ac

Key Features

High efficiency up to 83 percent for reduced energy consumption.
Universal input voltage range with switch selection for 88 - 132VAC or 176 - 264VAC input.
Wide operating temperature from -25°C to 70°C.
Protection features include short circuit, overload, and overvoltage protection.
Compact chassis mount design with 199mm length, 38mm width and depth.
Long life electrolytic capacitors rated at 105°C for reliability.
Conforms to multiple international safety and EMC standards.
Ideal for industrial, laboratory, manufacturing, and electronic equipment power applications.

Product Description

MEAN WELL RS-150-12 Switching Power Supply is a highly reliable and efficient embedded switch mode power supply designed for delivering 12V DC output at 150W with a maximum current of 12.5A. It features a compact chassis mount form factor measuring 199mm in length and 38mm in both width and depth, making it suitable for versatile installation in electronic systems.

This power supply accepts a wide range of AC input voltages, selectable by a switch between 88 to 132 VAC and 176 to 264 VAC, and can also handle DC inputs from 248 VDC to 373 VDC. It can withstand surge voltages of 300VAC for short durations without damage, ensuring robustness in harsh electrical environments.

The RS-150-12 series offers high efficiency of up to 83%, reducing heat generation and improving energy savings. It is equipped with long-life electrolytic capacitors rated at 105°C to ensure durability and consistent performance over extended periods. Operating temperature ranges from -25°C to 70°C, allowing use in varied industrial conditions.

Protection mechanisms include short circuit, overload, and overvoltage protection, enhancing device and user safety. Cooling is achieved by free air convection, supporting maintenance free operation. The device has passed rigorous vibration testing at 5G, supporting reliability in equipment subject to mechanical stress.

This switching power supply complies with international safety and EMC standards including UL 62368-1, TUV EN 62368-1, CSA C22.2, CCC GB4943.1, and others, making it suitable for diverse global markets.

High efficiency reduces power loss and heat generation. Wide input voltage range supports global compatibility. Robust protections improve safety and reliability. Long life capacitors support durable operation. Compact chassis design for flexible installation.

Meets stringent international safety and EMC standards. Ideal for industrial, electronic, and manufacturing applications.

This power supply is an excellent choice for powering electronic equipment in industrial machinery, laboratory instruments, manufacturing systems, and other commercial or industrial uses. Its high power density and reliability support continuous heavy-duty operation with easy installation.
