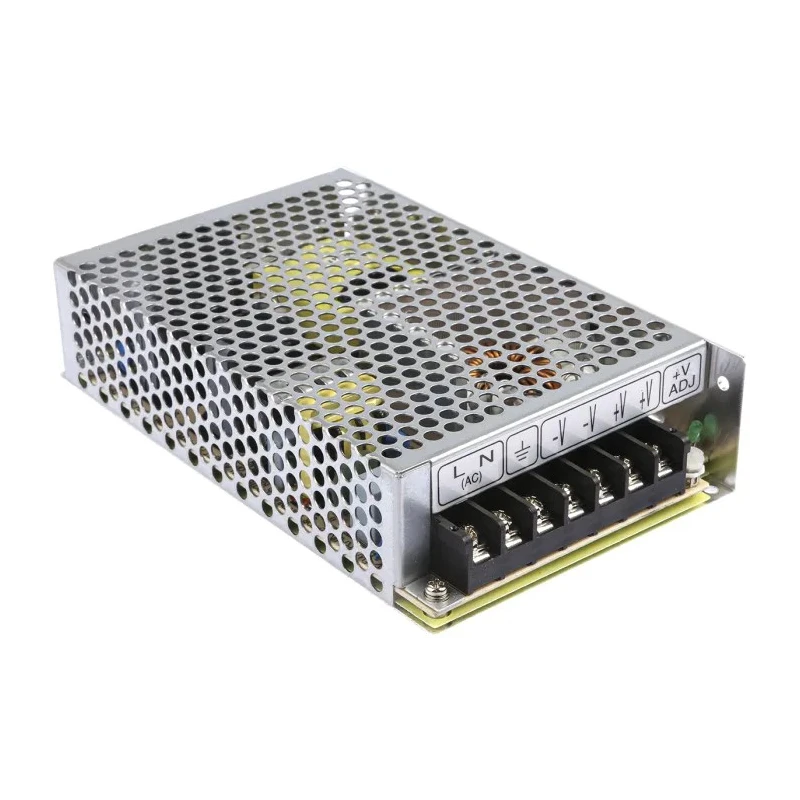

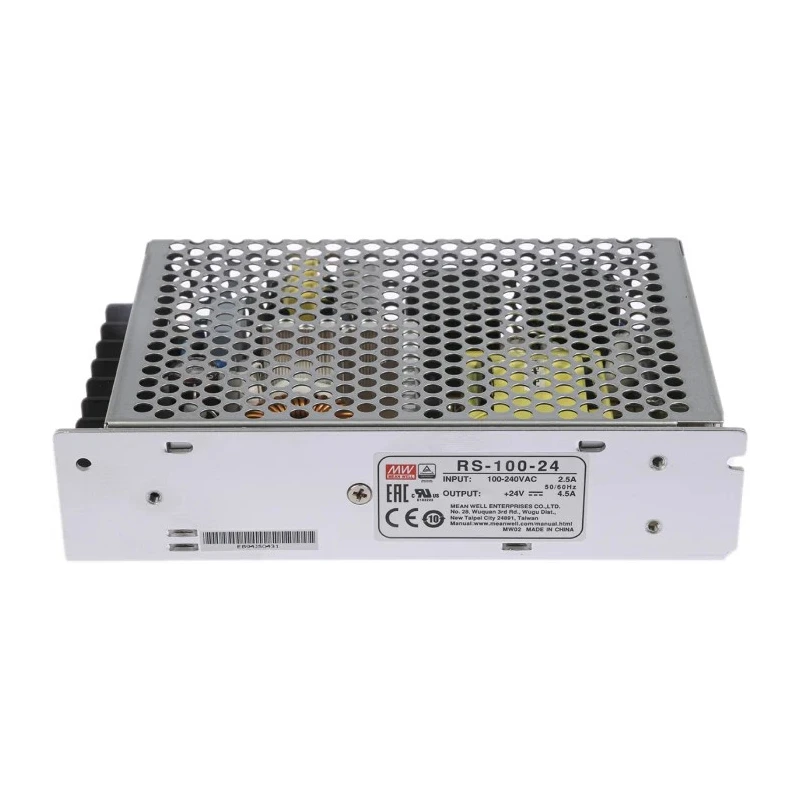

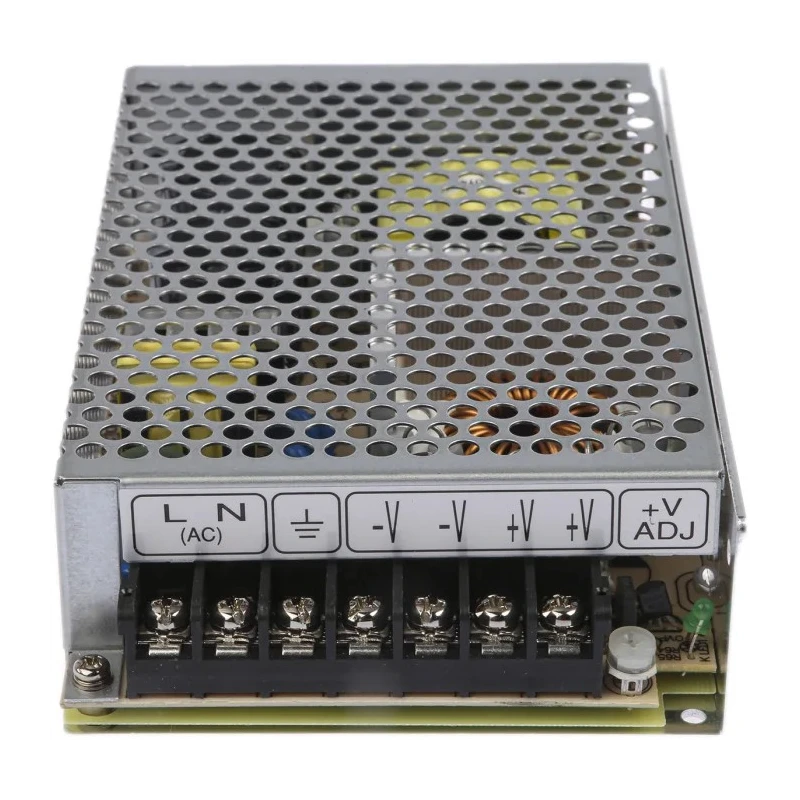

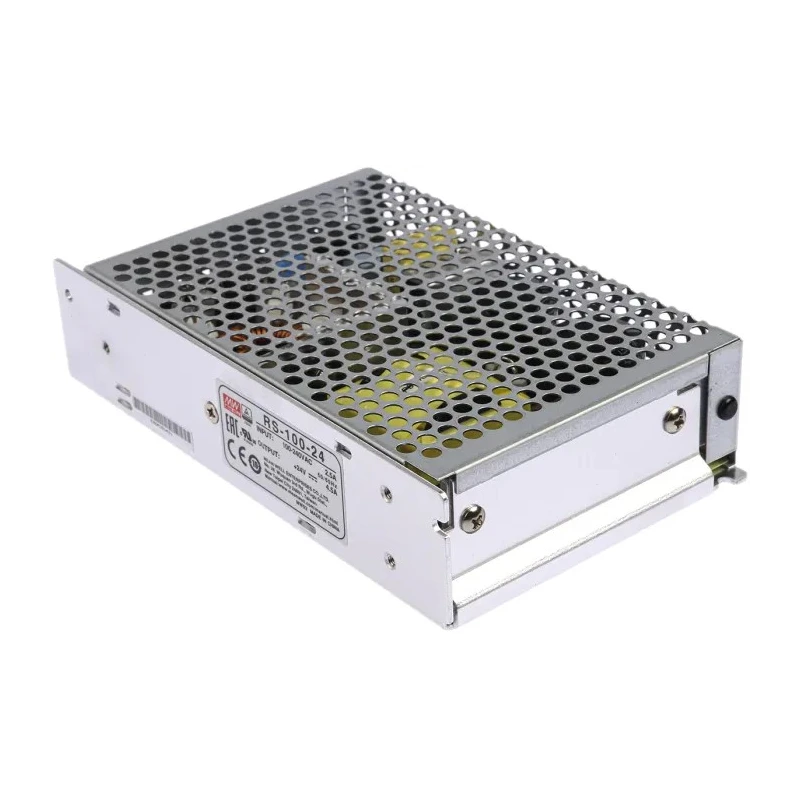

MEAN WELL RS-100-24 Switching Power Supply 24V DC 108W Universal Input 88-264V AC RS-100-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 108W |
| Efficiency | 84% |
| Length | 159mm |
| Model | RS-100-24 |
| Depth | 38mm |
| Gross Weight | 600g |
| Width | 38mm |
| Mount Type | Chassis |
| Series | RS100 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 4.5A |
| Minimum Input Voltage | 88V ac |
Key Features
- Universal input voltage range from 88V AC to 264V AC and DC input up to 370V DC.
- Single output channel providing stable 4.5A current.
- Compact chassis mount design measuring 159mm length and 38mm width and depth.
- High operating temperature tolerance from -25°C up to 70°C.
- Efficient power conversion with 84% efficiency rating.
- Incorporates full load burn-in test for long life and reliability.
- Protected against overload, short circuit, and overvoltage conditions.
- Cooling by free air convection without need for fans.
Product Description
MEAN WELL RS-100-24 switching power supply offers a robust 108W single output embedded switching solution designed for diverse industrial, laboratory, manufacturing, and electronic control systems. The unit delivers a constant 24V DC output at a current of 4.5A with high power density and reliability.
This power supply supports a wide universal input voltage range from 88VAC to 264VAC and accepts DC inputs from 125VDC to 373VDC. It is built to withstand a 300VAC surge for 5 seconds without damage, ensuring robust performance in fluctuating power environments.
The chassis-mount form factor is compact, with dimensions of 159mm (length) x 38mm (width) x 38mm (depth), and weighs approximately 600 grams, making it suitable for space-constrained electrical assemblies. Its operating temperature ranges from -25°C to 70°C, accommodating harsh operating conditions.
Safety and compliance have been prioritized, as evidenced by certifications including UL 62368-1, TUV EN 62368-1, CSA C22.2 No. 62368-1, CB, AS/NZS 62368.1, and others, making it a reliable choice for global applications.
Universal input voltage compatibility with surge protection. High efficiency up to 84%, reducing energy waste. Free-air convection cooling eliminates need for noisy fans. Adjustable output voltage range and LED power indicator.
Comprehensive protections: short circuit, overload, and overvoltage. Tested to endure vibration and continuous full load operation.
This MEAN WELL RS-100-24 is ideal for power electronics, automation, instrumentation, industrial control, and laboratory equipment, providing dependable, energy-efficient DC power solutions.
Explore the full range of Switching Power Supplies and related accessories on EnvMart to meet diverse power supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 108W.
It supports a universal input voltage range from 88V AC to 264V AC and accepts DC inputs up to 370V DC.
This unit delivers a stable output current of 4.5A at 24V DC.
The dimensions are 159mm in length, 38mm in width, and 38mm in depth.
It has an efficiency rating of 84%, which helps reduce energy waste.
The operating temperature range is from -25°C to 70°C.
It is certified under UL 62368-1, TUV EN 62368-1, CSA C22.2 No. 62368-1, and others.
Cooling is achieved through free air convection, eliminating the need for fans.
It includes protections against short circuit, overload, and overvoltage conditions.
This model weighs approximately 600 grams.
It features a chassis mount design, making it suitable for various electrical assemblies.
This power supply is suitable for industrial control, automation, instrumentation, and laboratory equipment.
