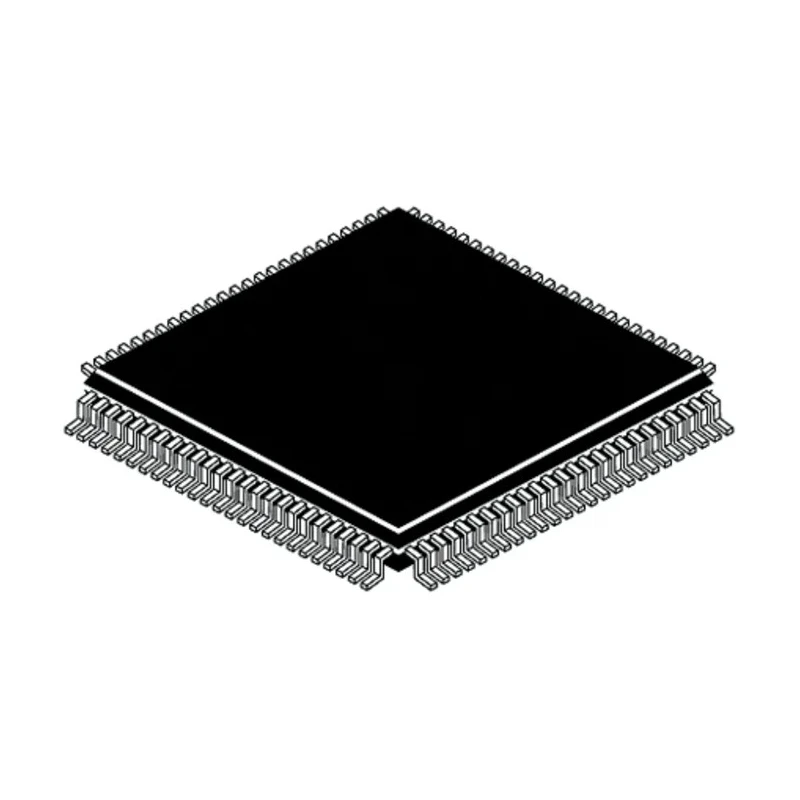

Texas Instruments 16 bit Digital Signal Processor 40 MHz 64kB EEPROM FLASH 100-Pin LQFP TMS320LF2406APZA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.4mm |
| Length | 14mm |
| Model | TMS320LF2406APZA |
| Width | 14mm |
| Mount Type | Surface |
| Core | C2xx DSP Core |
| Series | TMS320C2000 |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 5kB |
| ADC Resolution | 10bit |
| Timer Resolution | 16bit |
| Interface Type | CAN, SPI, SCI |
| Standards/Approvals | IEEE 1149.1 (JTAG) |
| Pin Count | 100 |
| Minimum Supply Voltage | 3.3V |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 4 |
| Instruction Set Architecture | Harvard |
| Program Memory Type | EEPROM, FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 2 |
| PWM Resolution | 16bit |
| ADC Channels | 16 |
| Number of PWM Channels | 16 |
| Numeric and Arithmetic Format | Fixed Point |
Key Features
- Supports a maximum clock frequency of 40 MHz enabling efficient processing.
- Features a 64kB EEPROM and FLASH program memory for robust application support.
- Built on Harvard architecture with a 16-bit data bus width.
- Includes integrated peripherals such as CAN, SPI, and SCI interfaces for versatile connectivity.
- Operates within a temperature range of -40°C to 85°C suitable for industrial conditions.
- Equipped with 1 ADC channel and 16 PWM channels for enhanced control capabilities.
- Surface mount type housed in a compact 100-pin LQFP package with dimensions 14mm x 14mm x 1.4mm.
- Conforms to IEEE 1149.1 (JTAG) standard for testing and debugging.
Product Description
Texas Instruments TMS320LF2406APZA is a 16 bit Digital Signal Processor from the TMS320C2000 series designed for efficient real-time processing with a maximum clock frequency of 40 MHz. Featuring 64kB non-volatile EEPROM and FLASH memory, this DSP supports applications requiring reliable program storage and fast execution.
This device incorporates a 16-bit data bus width with Harvard instruction set architecture and the C2xx DSP core, delivering 40 million instructions per second (MIPS). It comes with essential interfaces including CAN, SPI, and SCI, making it versatile for communication in embedded systems.
The TMS320LF2406APZA is built for harsh environments, operating from -40°C to 85°C temperature range, and packaged in a 100-pin LQFP surface mount form factor measuring 14mm by 14mm by 1.4mm. Conformance to IEEE 1149.1 (JTAG) ensures standardized testing capabilities.
Peripheral features include one 10-bit ADC channel, 16 PWM channels with 16-bit resolution, four timers with 16-bit resolution, and two PWM units, enabling precise control in industrial and automotive applications. The device uses fixed point numeric and arithmetic format optimized for DSP applications requiring deterministic performance.
Maximum clock frequency of 40 MHz supports demanding signal processing tasks. 64kB EEPROM and FLASH program memory secure code for industrial reliability. Multiple interface types (CAN, SPI, SCI) offer flexible connectivity options.
Robust operating temperature range of -40°C to 85°C suitable for industrial environments. Compact 100-Pin LQFP package with surface mount technology. Integrated 10-bit ADC and 16 PWM channels for control-centric applications.
Compliance to IEEE 1149.1 (JTAG) facilitates on-chip debugging and testing. Fixed point arithmetic format for high-speed, predictable DSP operations. Embedded 5kB RAM supports efficient data handling.
This processor is widely used in industrial control, automotive systems, and embedded signal processing applications where high performance and reliability are critical. Its blend of memory, interface, and peripheral features make it suitable for developing complex digital control and signal processing solutions.
Explore more Texas Instruments Digital Signal Processors and advanced electronics components on EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the TMS320LF2406APZA is 40 MHz, enabling efficient processing capabilities.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial conditions.
This digital signal processor includes 64kB of EEPROM and FLASH program memory for robust application support.
The TMS320LF2406APZA is built on a Harvard architecture with a 16-bit data bus width.
It includes integrated peripherals such as CAN, SPI, and SCI interfaces for versatile connectivity.
The processor features one 10-bit ADC channel for analog-to-digital conversion.
This unit supports 16 PWM channels with a resolution of 16 bits, enhancing control capabilities.
It is housed in a compact 100-pin LQFP package with dimensions of 14mm x 14mm x 1.4mm.
The processor uses a fixed point numeric and arithmetic format optimized for DSP applications.
There are four timers included, each with a resolution of 16 bits.
It conforms to the IEEE 1149.1 (JTAG) standard for testing and debugging purposes.
The core type of this model is the C2xx DSP Core, designed for efficient real-time processing.
