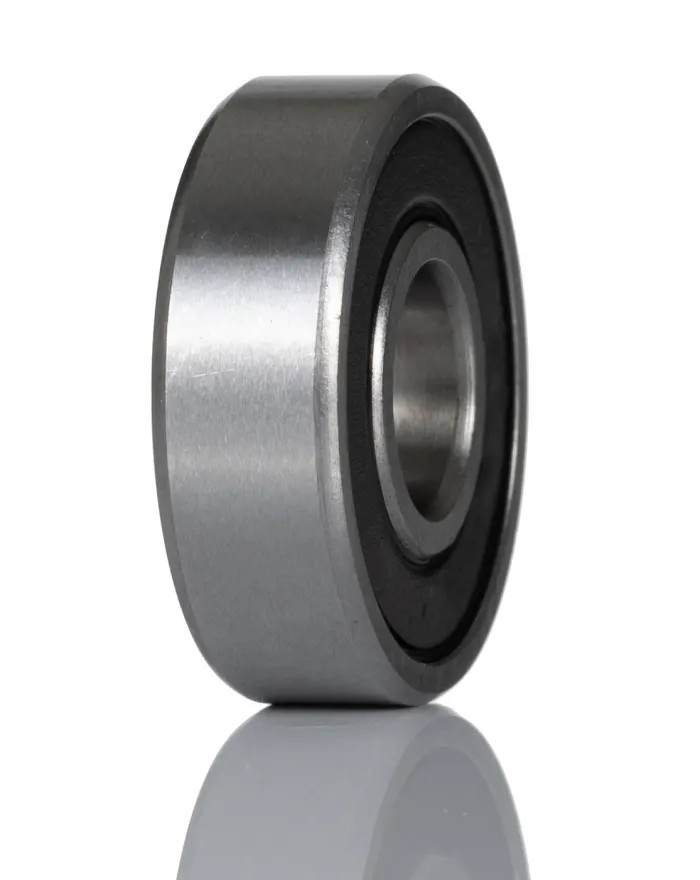

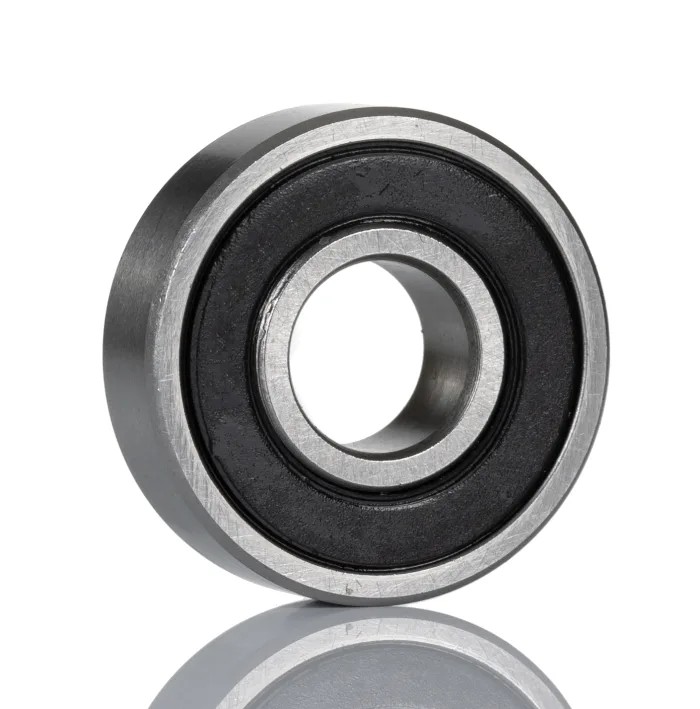

RS PRO Single Row Deep Groove Ball Bearing Steel Cage and Balls 12 mm ID, 37 mm OD, 12 mm Race Width, Sealed 6301-2RS

RS PRO 6301-2RS is a single row, deep groove ball bearing manufactured with high-quality steel used in the ball, cage, and race components, ensuring enhanced durability and longevity in demanding applications. With an inner diameter of 12 mm, outer diameter of 37 mm, and a race width of 12 mm, this bearing is designed for smooth rotational motion where the inner ring rotates.

It is equipped with two synthetic rubber seals (2RS) to provide excellent protection against dirt, dust, and lubricant leakage. This sealed design significantly reduces maintenance requirements by preserving lubrication and protecting from contamination.

Its limiting speed of 21600 rpm supports high-speed operations, while the static load rating of 4.15 kN and dynamic load rating of 9.75 kN assure reliable performance under both static and dynamic stresses. The bearing's raceway features deep grooves that stabilize the balls providing better load distribution and radial load handling capability.

Typical industrial uses include applications in machinery, fluid power systems, and mechanical equipment across manufacturing, agricultural machinery, HVAC systems, and general industrial maintenance.

Package contents correspond to a single RS PRO 6301-2RS bearing unit, ready for immediate installation. This product is manufactured in China, reflecting RS PRO's commitment to quality standards for industrial bearings.

The bearing features steel balls, cage, and race to ensure durability. It is sealed with synthetic rubber seals to prevent contamination and preserve lubrication. Designed for use where the inner ring rotates, ideal for high speed operations up to 21600 rpm.

Static load rating of 4.15 kN and dynamic load rating of 9.75 kN deliver strong load capacity. Race width is 12 mm with a parallel bore type and CN internal clearance for precision fit. The bearing has deep grooves providing stability and versatility in applications.

Primarily suitable for industrial, mechanical, and fluid power applications requiring reliable rotary bearing performance. Explore more high-quality ball bearings and rotary bearing units in the RS PRO range at EnvMart for your industrial and mechanical machinery needs.
